FOOTREST

DR125S 1983 (D)

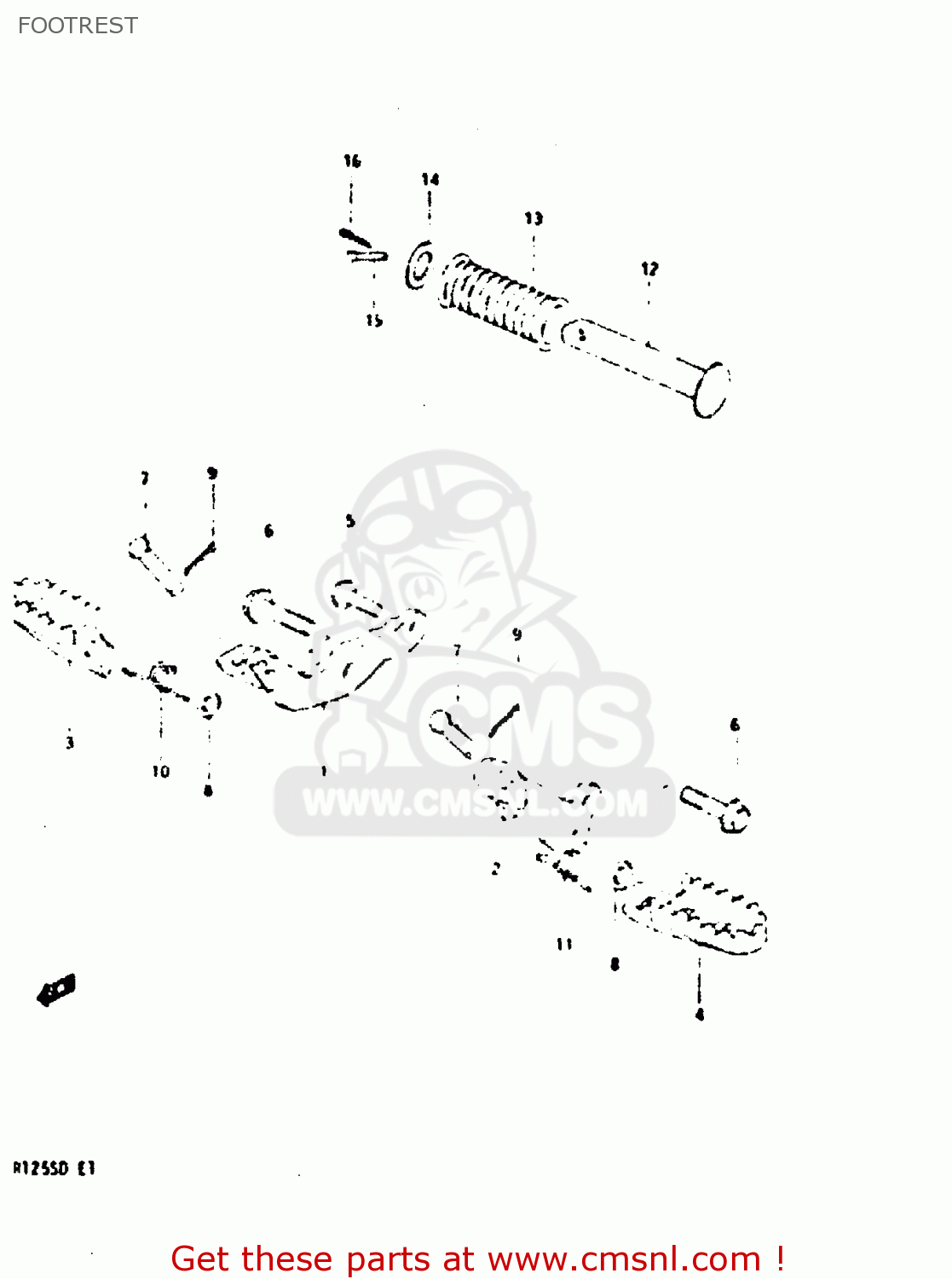

Footrest diagram DR125S 1983 (D)

FOOTREST DR125S 1983 (D)

FOOTREST DR125S 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

4351005201
ref: 1

BAR,FRONT FOOTREST

€ 37.50

2

4352005200
ref: 2

BAR,FRONT FOOTREST,LEFT

€ 27.00

3

4355137202
ref: 3

FOOTREST,RIGHT

€ 31.00

4

4356140401
ref: 4

FOOTREST

€ 24.50

5

0152710207
ref: 5

BOLT

€ 3.00

6

0152712255
ref: 6

BOLT

€ 3.00

7

0920008035
ref: 7

PIN

€ 6.50

8

0832221088
ref: 8

WASHER

€ 2.00

9

0411120208
ref: 9

PIN 20X20

€ 1.50

10

0944814027
ref: 10

SPRING

€ 4.50

11

4358214300
ref: 11

SPRING,FOOTREST,LEFT

€ 5.50

12

4361003001
ref: 12

BAR,FOOTREST RUBBER

€ 5.50

13

4361203001
ref: 13

RUBBER,PILLION FOOTREST

€ 3.50

14

0916019006
ref: 14

WASHER (19.5X32X2)

€ 2.00

15

0920006010
ref: 15

PIN

€ 2.50

16

0411120208
ref: 16

PIN 20X20

€ 1.50
