HEADLAMP HOUSING

DR125S 1983 (D)

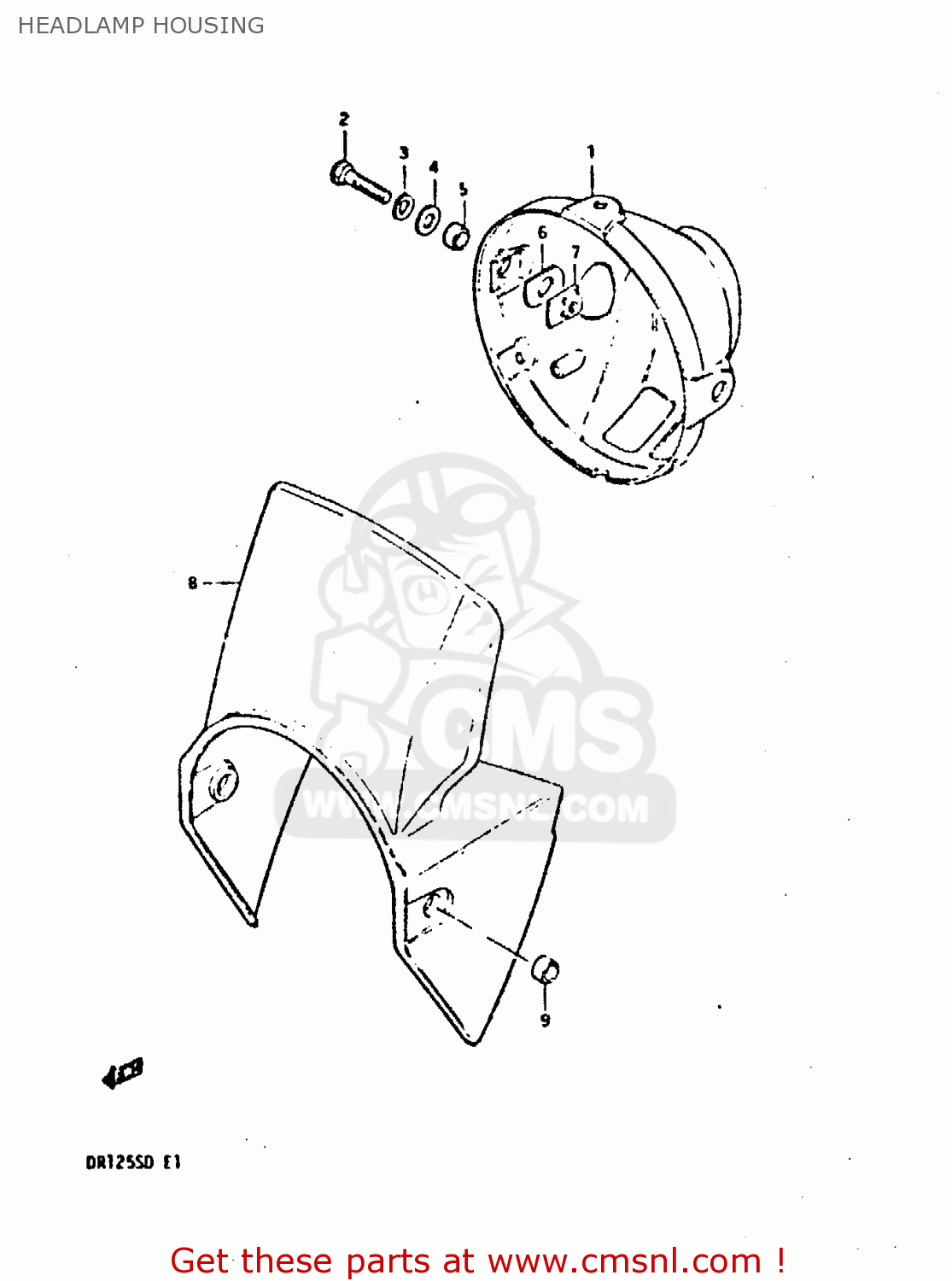

Headlamp housing diagram DR125S 1983 (D)

HEADLAMP HOUSING DR125S 1983 (D)

HEADLAMP HOUSING DR125S 1983 (D)

prices are in EUR

ref

part #

description

quantity

1

5181138210019
ref: 1

HOUSING,HEAD LAMP

€ 40.00

2

0120408307
ref: 2

BOLT

€ 2.50

3

0832121088
ref: 3

LOCK WASHER

€ 2.00

4

0832211088
ref: 4

WASHER

€ 2.00

5

0918008030
ref: 5

SPACER (8.8X12X7)

€ 3.50

6

0932912002
ref: 6

CUSHION

€ 3.00

7

5186045000
ref: 7

PLATE,HEADLAMP HOUSING

€ 2.00

8-1

5184338200019
ref: 8-1

COVER, HEADLAMP (BLACK)

€ 48.00

8-2

518433820007P
ref: 8-2

COVER, HEADLAMP (RED)

€ 48.00

8-3

5184338200163
ref: 8-3

COVER,HEAD LAM

€ 48.00

8-4

518433820004Y
ref: 8-4
MODEL Z

COVER, HEADLAMP (BLUE)

€ 48.00

8-5

518433820005K
ref: 8-5
MODEL D

COVER, HEADLAMP (BLUE)

€ 48.00

8-6

518433820010V
ref: 8-6
MODEL D

COVER, HEADLAMP (WHITE)

€ 48.00

9

0918008030
ref: 9

SPACER (8.8X12X7)

€ 3.50
