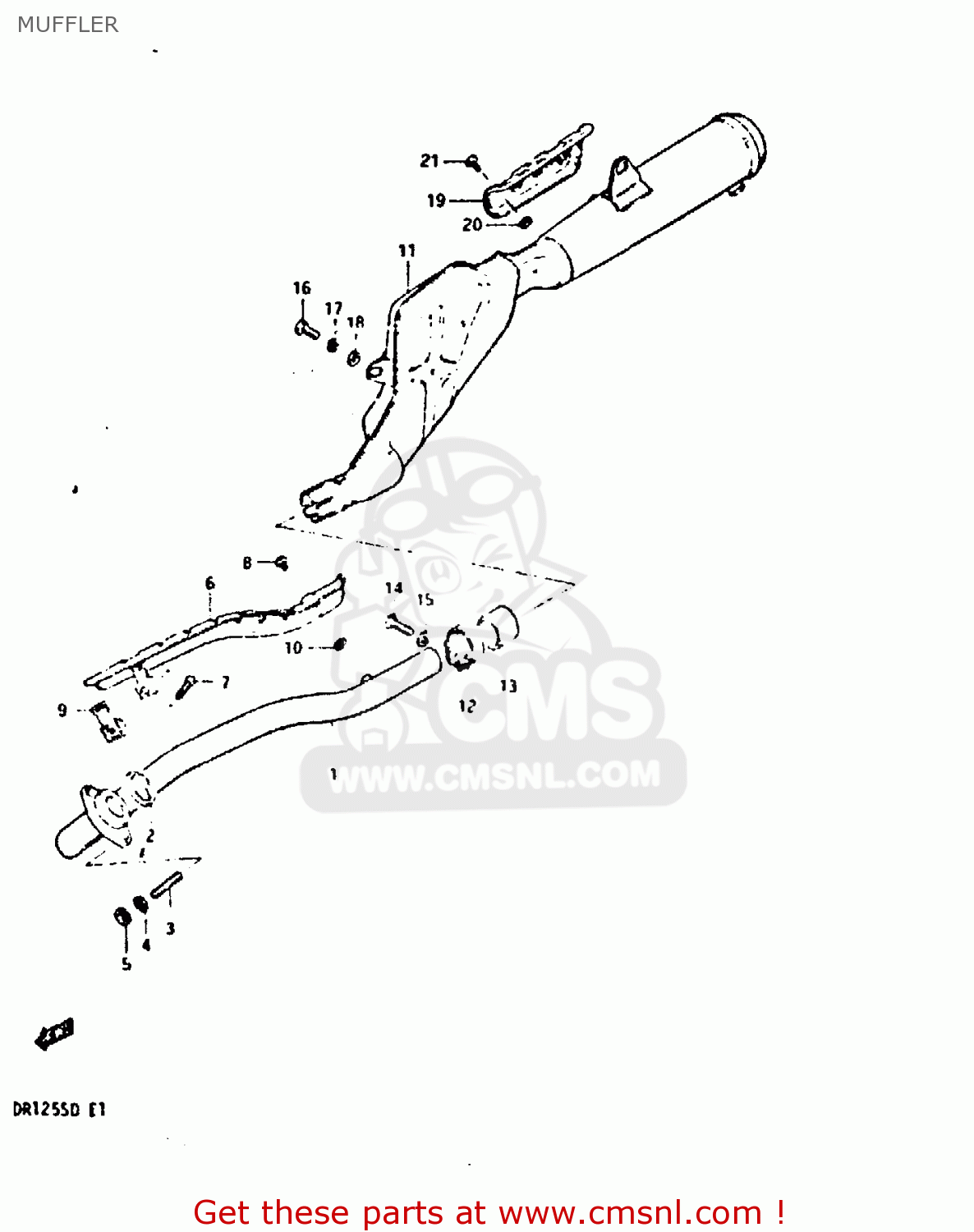

MUFFLER

ref

part #

description

quantity

1

1415005200
ref: 1

PIPE,EXHAUST

€ 53.50

2

1418105020
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 6.50

3

0142106205
ref: 3

STUD BOLT L:20

€ 2.50

4

0832121065
ref: 4

LOCK WASHER

€ 2.00

5

0831011065
ref: 5

NUT

€ 2.00

6

1418005200
ref: 6

COVER,EXHAUST PIPE

€ 32.50

7

0211205205
ref: 7

SCREW 5X20

€ 2.50

8

0214206105
ref: 8

SCREW

€ 2.00

9

1418505200
ref: 9

CLAMP,EXHAUST PIPE COVER

€ 3.50

10

0916806005
ref: 10

GASKET 6.2X12X1.5 (MCA)

€ 2.00

11-1

1430005200
ref: 11-1

MUFFLER ASSY

€ 367.00

11-2

NOTUSED
ref: 11-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12

1445905200
ref: 12

CLAMP,MUFFLER CONNECTOR

€ 14.50

13

1477105200
ref: 13

CONNECTOR,MUFFLER

€ 51.50

14

0910008195
ref: 14

BOLT 8X35

€ 2.50

15

0832211085
ref: 15

WASHER,8.5X16X

€ 1.50

16

0110708165
ref: 16

BOLT

€ 2.00

17

0832121085
ref: 17

LOCK WASHER

€ 2.50

18

0832211085
ref: 18

WASHER,8.5X16X

€ 1.50

19

1478105200
ref: 19

COVER,MUFFLER

€ 11.50

20

0916806005
ref: 20

GASKET 6.2X12X1.5 (MCA)

€ 2.00

21

0214206105
ref: 21

SCREW

€ 2.00

all assemblies
