BATTERY
DR125SE 1996 (T) FRANCE GERMANY (E04 E22)

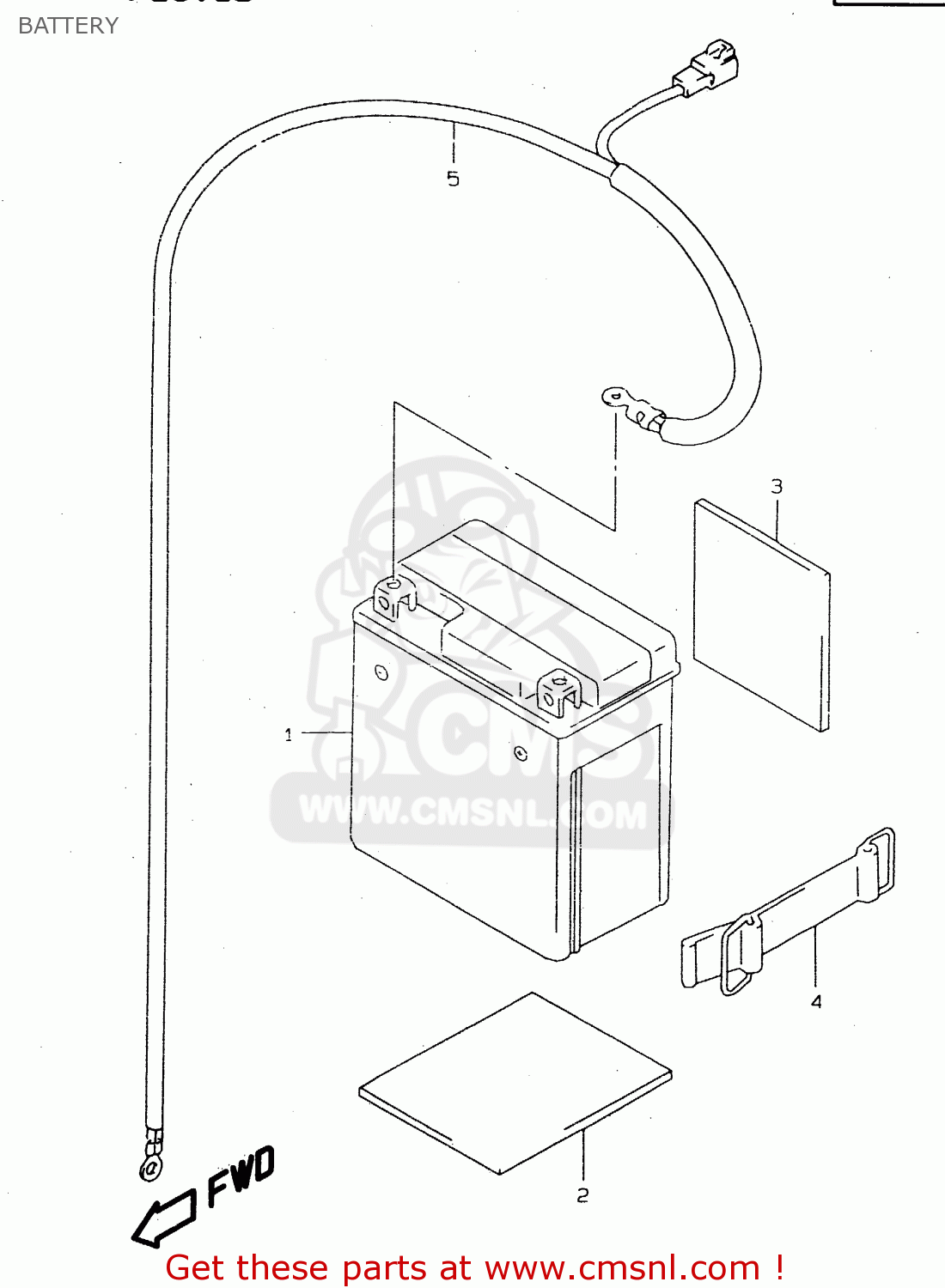

Battery diagram DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
BATTERY DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
×
prices are in EUR
ref
part #
description
quantity
1
3361015D20
ref: 1
BATTERY ASSY(YTX7L-BS,12V6AH)
€ 65.50
2
3365137000
ref: 2
CUT AS REQUIRED PROF
PROTECTOR(170X95X3.0)
€ 5.00
3
3365137000
ref: 3
CUT AS REQUIRED PROF
PROTECTOR(170X95X3.0)
€ 5.00
4
0946200093
ref: 4
BAND
€ 8.50
5
3386044A00
ref: 5
WIRE,BATTERY MINUS
€ 15.00
