STARTING MOTOR

DR125SE 1996 (T) FRANCE GERMANY (E04 E22)

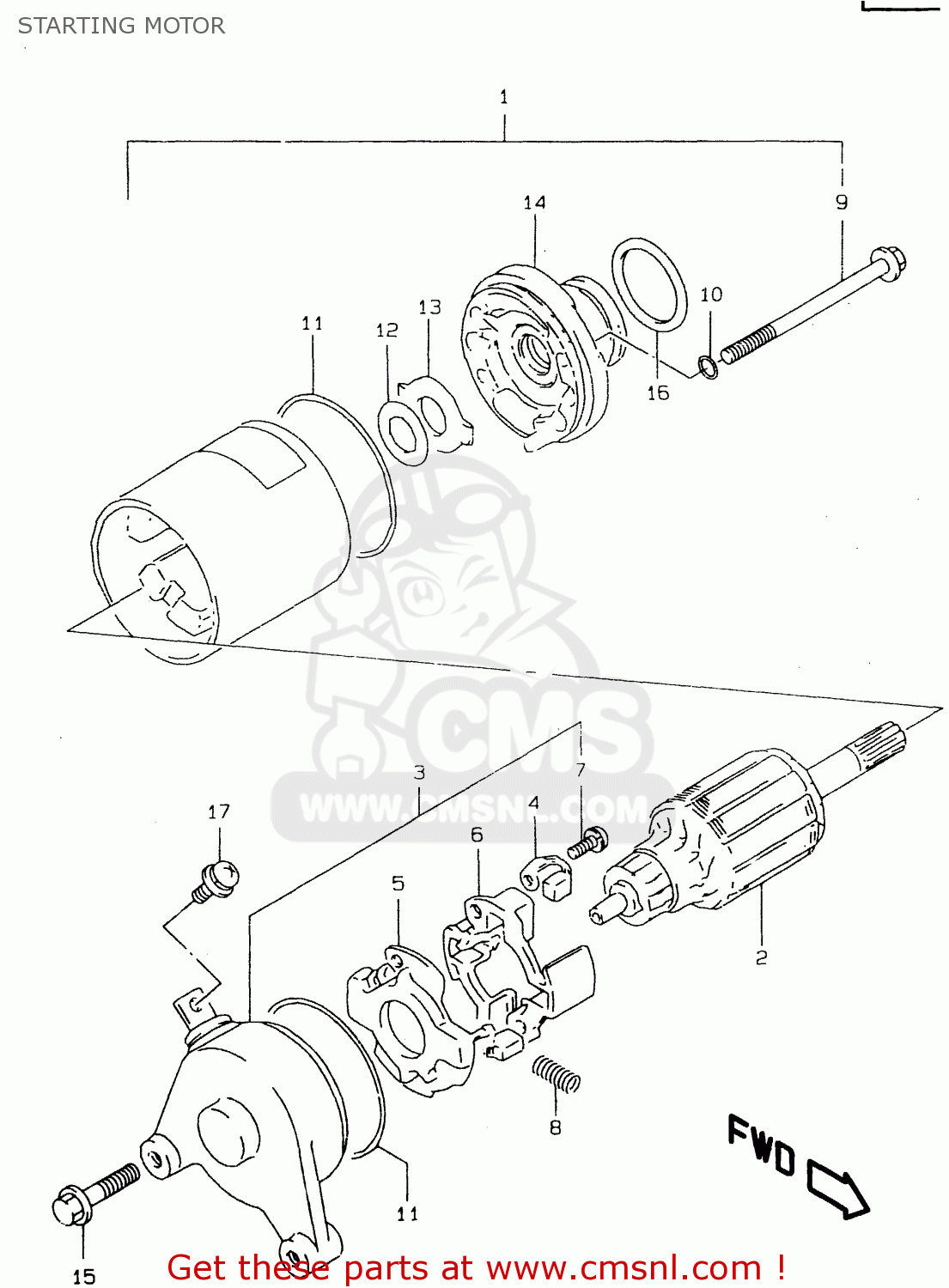

Starting motor diagram DR125SE 1996 (T) FRANCE GERMANY (E04 E22)

STARTING MOTOR DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
STARTING MOTOR DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
STARTING MOTOR DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
3110005500
ref: 1
MODEL R/S
MOTOR ASSEMBLY,STARTING
€ 899.00
1
3110005501
ref: 1
MODEL T/V/W/X
MOTOR ASSY,STARTING
€ 899.00
2
3131011D00
ref: 2
ARMATURE
€ 265.50
3
3117505330
ref: 3
MODEL R
FRAME ASSEMBLY,COMMUTATOR
€ 66.50
3
3117529B00
ref: 3
MODEL S
FRAME ASSEMBLY,COMMUTATOR
€ 66.50
3
3117542A01
ref: 3
MODEL T/V/W/X
FRAME ASSY,COMMUTATOR END
3117542A01
€ 66.50
4
3113232C10
ref: 4
BRUSH
3113232C10
€ 14.50
5
3113032C20
ref: 5
BRUSH SUB ASSY,STARTER
3113032C20
€ 28.00
6
3113332C10
ref: 6
HOLDER,BRUSH
3113332C10
€ 9.00
7
0211234123
ref: 7
SCREW
0211234123
€ 2.00
8
3113532C10
ref: 8
SPRING
3113532C10
€ 3.50
9
3128132C10
ref: 9
BOLT
3128132C10
€ 8.50
10
3115638300
ref: 10
O RING
3115638300
€ 3.00
11
3126432C10
ref: 11
O RING
3126432C10
€ 9.00
12
3136138300
ref: 12
SHIM
3136138300
€ 1.50
13
3136132C10
ref: 13
PLATE,LOCK
€ 2.50
14
3115006C00
ref: 14
BRACKET
3115006C00
€ 112.00
15
0154706353
ref: 15
MODEL R/S
BOLT
0154706353
€ 3.00
15
0154706303
ref: 15
MODEL T/V/W/X
BOLT,G/S SWITC
0154706303
€ 3.00
16
0928024003
ref: 16
O RING(D:3,ID:24.5)
0928024003
€ 2.00
17
0913705004
ref: 17
SCREW(5X8)
0913705004
€ 2.00
