REAR SWINGING ARM

DR125SE 1996 (T) FRANCE GERMANY (E04 E22)

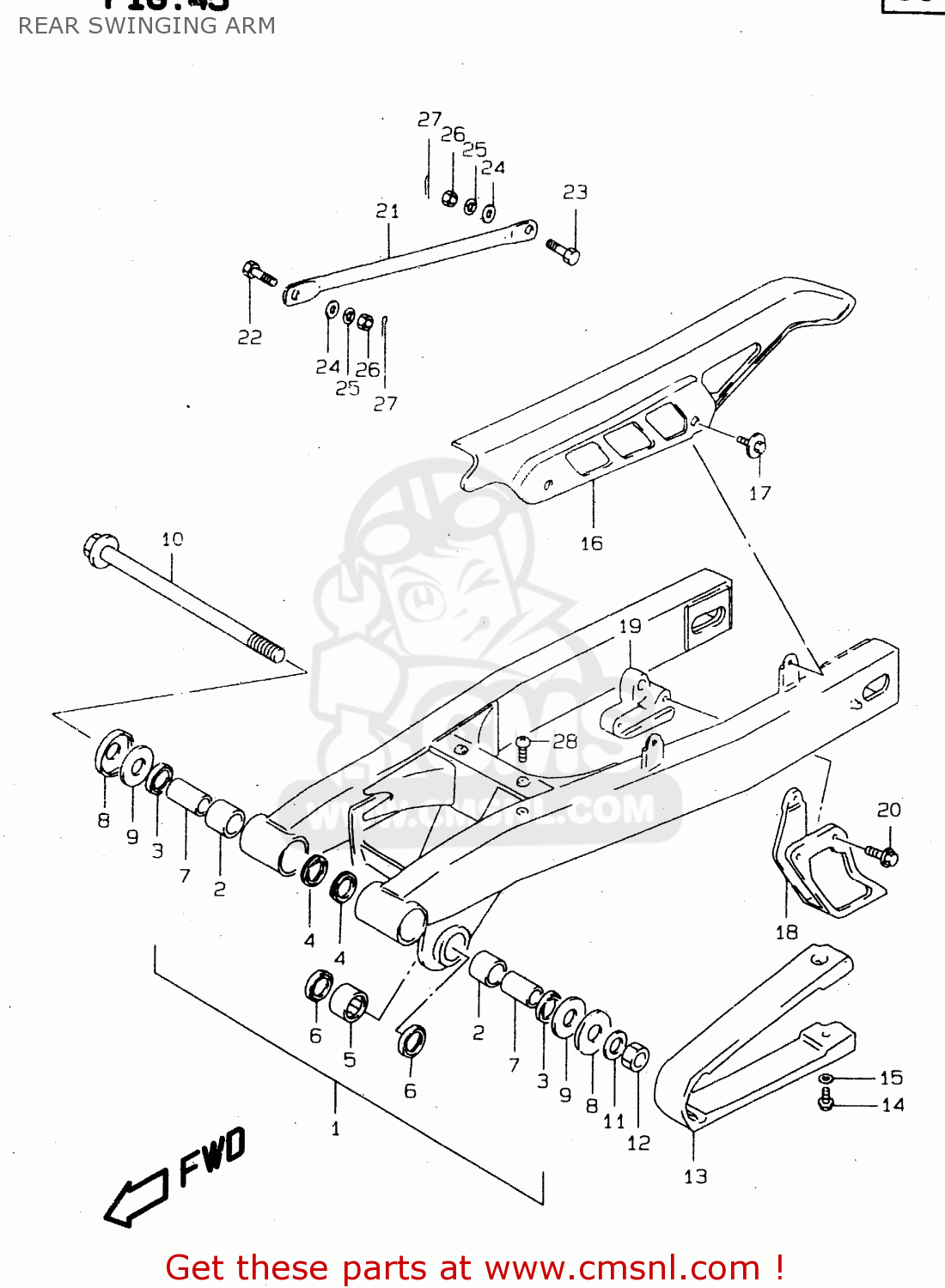

Rear swinging arm diagram DR125SE 1996 (T) FRANCE GERMANY (E04 E22)

REAR SWINGING ARM DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
REAR SWINGING ARM DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
REAR SWINGING ARM DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
6100044A3013L
ref: 1
SWINGINGARM ASSY,RR
€ 356.00
2
6126113700
ref: 2
BUSHING,RR SWGARM PIVOT
6126113700
€ 8.00
3
0928320031
ref: 3
SEAL,OIL(20X27X5)
0928320031
€ 5.00
4
0928320031
ref: 4
SEAL,OIL(20X27X5)
0928320031
€ 5.00
5
0926320053
ref: 5
BEARING(20X27X25)
0926320053
€ 15.50
6
6264744A00
ref: 6
SEAL,CUSHION LEVER OUT DUST
6264744A00
€ 3.50
7
6125142A00
ref: 7
SPACER,RR SWGARM PVT
6125142A00
€ 9.50
8
6126240400
ref: 8
COVER,RR SWGARM DUST SEAL
6126240400
€ 4.00
9
0821114322
ref: 9
WASHER
0821114322
€ 2.50
10
6121126B01
ref: 10
SHAFT,RR SWINGINGARM PIVOT
6121126B01
€ 16.50
11
0916014027
ref: 11
MODEL R
WASHER(14.2X24X2.3)
0916014027
€ 2.50
11
0916014501
ref: 11
MODEL S/T/V
WASHER
€ 2.50
11
0916014057
ref: 11
MODEL W/X
WASHER(14.5X24X2.3)
0916014057
€ 2.50
12
0915914019
ref: 12
NUT
0915914019
€ 8.50
13
6127344A00
ref: 13
BUFFER,CHAIN TOUCH DEFENSE
6127344A00
€ 24.00
14
0155005163
ref: 14
MODEL R/S
BOLT
€ 2.00
14
0214205163
ref: 14
MODEL T/V/W/X
SCREW
0214205163
€ 2.50
15
0916905012
ref: 15
WASHER
0916905012
€ 3.00
16
6131101A03
ref: 16
CASE,CHAIN
6131101A03
€ 33.50
17
0911606096
ref: 17
BOLT(6X10)
0911606096
€ 2.00
18
6134113A00
ref: 18
GUIDE,CHAIN
6134113A00
€ 20.00
19
6134542A00
ref: 19
RUBBER,CHAIN GUIDE
6134542A00
€ 7.50
20
0155006203
ref: 20
BOLT
0155006203
€ 2.50
21
643114870013L
ref: 21
TORQUE LINK,RR
643114870013L
€ 11.50
22
0911108015
ref: 22
BOLT(8X22)
0911108015
€ 3.00
23
0911108013
ref: 23
BOLT(8X26.5)
0911108013
€ 3.00
24
0832201083
ref: 24
WASHER
0832201083
€ 1.50
25
0916208008
ref: 25
WASHER,LOCK
0916208008
€ 2.00
26
0914008008
ref: 26
NUT
0914008008
€ 1.50
27
0411120208
ref: 27
PIN 20X20
0411120208
€ 1.50
28
0214206203
ref: 28
SCREW
0214206203
€ 2.00
