CRANKCASE COVER

DR125SE 1996 (T) FRANCE GERMANY (E04 E22)

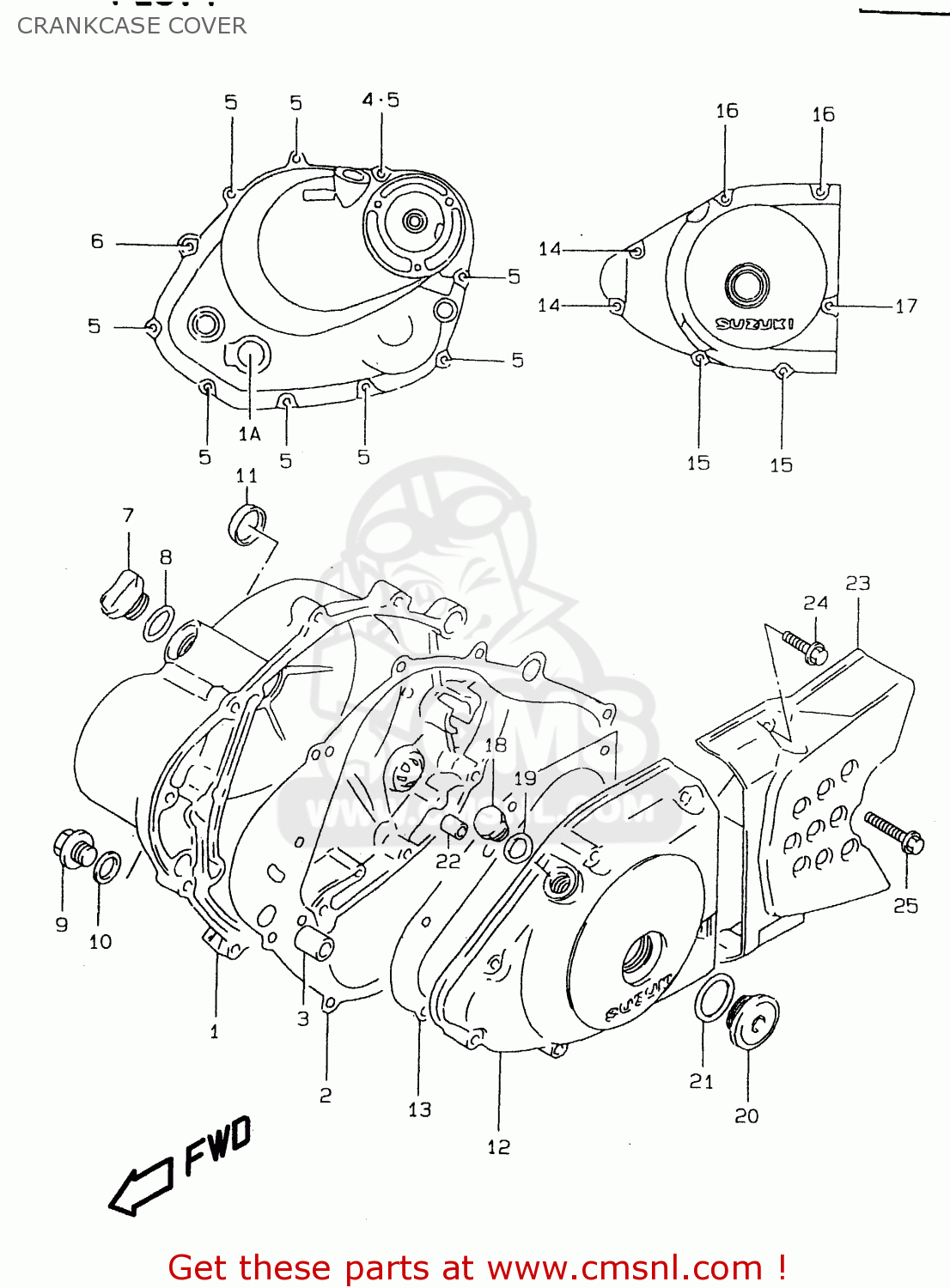

Crankcase cover diagram DR125SE 1996 (T) FRANCE GERMANY (E04 E22)

CRANKCASE COVER DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
CRANKCASE COVER DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
CRANKCASE COVER DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
1134042A20
ref: 1
COVER,CLUTCH
€ 138.00
1A
1197145010
ref: 1A
LENS,OIL LEVEL CHECK
1197145010
€ 13.00
2
1148205211
ref: 2
<-11482-05210
GASKET,CLUTCH COVER (NAS)
1148205211
€ 13.00
3
0421113189
ref: 3
<-09206-13001
PIN
0421113189
€ 2.50
4
0916806024
ref: 4
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
5
0154706303
ref: 5
BOLT,G/S SWITC
0154706303
€ 3.00
6
0154706453
ref: 6
BOLT
0154706453
€ 3.00
7
0925920019
ref: 7
PLUG
0925920019
€ 9.50
8
0928017003
ref: 8
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
9
0924714026
ref: 9
PLUG(14X12)
0924714026
€ 3.50
10
0916814002
ref: 10
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
11
1134212C51
ref: 11
PLUG,CLUTCH COVER KICK
1134212C51
€ 7.00
12
1135142A20
ref: 12
COVER,MAGNETO
€ 97.00
13
1148305312
ref: 13
<-11483-05310
GASKET,MAGNETO COVER (NAS)
1148305312
€ 8.50
14
0154706303
ref: 14
BOLT,G/S SWITC
0154706303
€ 3.00
15
0154706353
ref: 15
BOLT
0154706353
€ 3.00
16
0154706403
ref: 16
BOLT
0154706403
€ 3.00
17
0154706503
ref: 17
BOLT
0154706503
€ 3.50
18
0924712104
ref: 18
PLUG,12X9
0924712104
€ 2.50
19
0916812002
ref: 19
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
20
0925926011
ref: 20
PLUG(26X9)
0925926011
€ 8.50
21
0928022008
ref: 21
O RING(D:3.1,ID:22.7)
0928022008
€ 2.50
22
0421109129
ref: 22
PIN
0421109129
€ 2.00
23
1136044A20
ref: 23
COVER,ENGINE SPROCKET
€ 38.00
24
0154706253
ref: 24
SCREW
0154706253
€ 2.50
25
0154706353
ref: 25
BOLT
0154706353
€ 3.00
