CAM SHAFT - VALVE

DR125SE 1996 (T) FRANCE GERMANY (E04 E22)

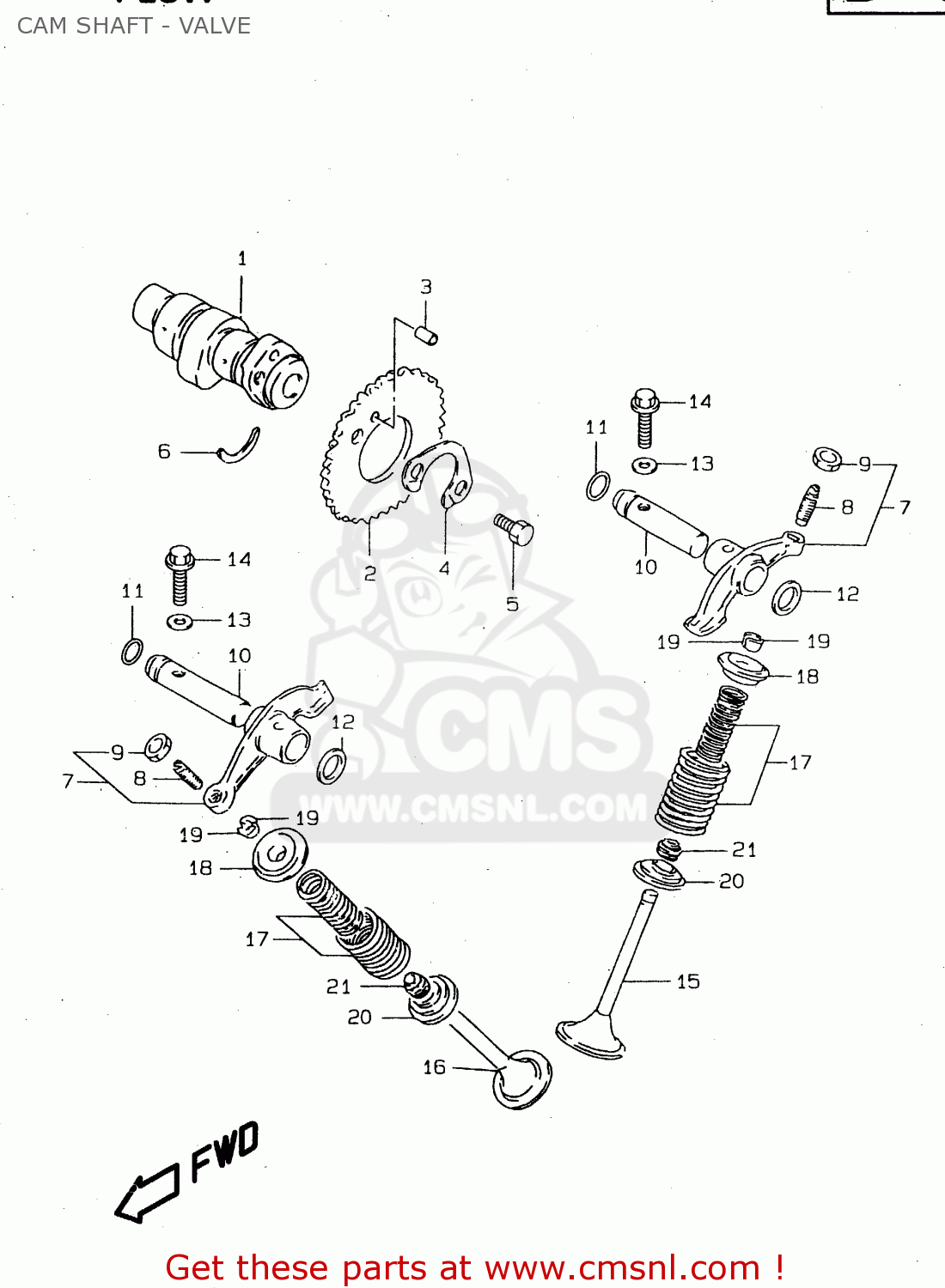

Cam shaft - valve diagram DR125SE 1996 (T) FRANCE GERMANY (E04 E22)

CAM SHAFT - VALVE DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
CAM SHAFT - VALVE DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
CAM SHAFT - VALVE DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
1271144A01
ref: 1
CAMSHAFT
€ 343.00
2
1274105201
ref: 2
SPROCKET,CAMSHAFT
1274105201
€ 14.00
3
0926105005
ref: 3
PIN(5X8)
0926105005
€ 1.50
4
1274705201
ref: 4
WASHER,SPROCKET
1274705201
€ 2.00
5
0911106032
ref: 5
BOLT(6X10.5)
0911106032
€ 2.00
6
0939022002
ref: 6
C RING
0939022002
€ 2.00
7
1285024400
ref: 7
MODEL R, <-12840-052
ARM,VALVE ROCKER,EXHAUST
€ 28.00
7
1285025C00
ref: 7
MODEL S/T/V/W/X
ARM ASSY,VALVE ROCKER
1285025C00
€ 28.00
8
1284232411
ref: 8
SCREW,TAPPET ADJUSTING
1284232411
€ 5.00
9
1284332400
ref: 9
NUT,ADJUSTING SCREW
1284332400
€ 2.50
10
1286105201
ref: 10
SHAFT,VALVE ROCKET
1286105201
€ 9.50
11
0928009005
ref: 11
O RING(D:1.9,ID:8.6)
0928009005
€ 4.00
12
0916412021
ref: 12
WASHER
0916412021
€ 2.00
13
0916806023
ref: 13
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
14
0155006253
ref: 14
BOLT
0155006253
€ 2.50
15
1291104B00
ref: 15
<-12911-24400
VALVE,INTAKE
1291104B00
€ 41.50
16
1291224400
ref: 16
VALVE,EXHAUST
1291224400
€ 41.50
17
1292005240
ref: 17
SPRING SET,VALVE
1292005240
€ 10.50
18
1293149200
ref: 18
RETAINER,VALVE SPRING
1293149200
€ 5.50
19
1293224400
ref: 19
COTTER,VALVE
1293224400
€ 2.00
20
1293349201
ref: 20
SEAT,VALVE SPRING
1293349201
€ 4.50
21
0928905015
ref: 21
SEAL,OIL(5.5X11X8.2)
0928905015
€ 6.50
