KNUCKLE COVER (OPTION)(MODEL R/S/T/V/W)

DR125SE 1996 (T) FRANCE GERMANY (E04 E22)

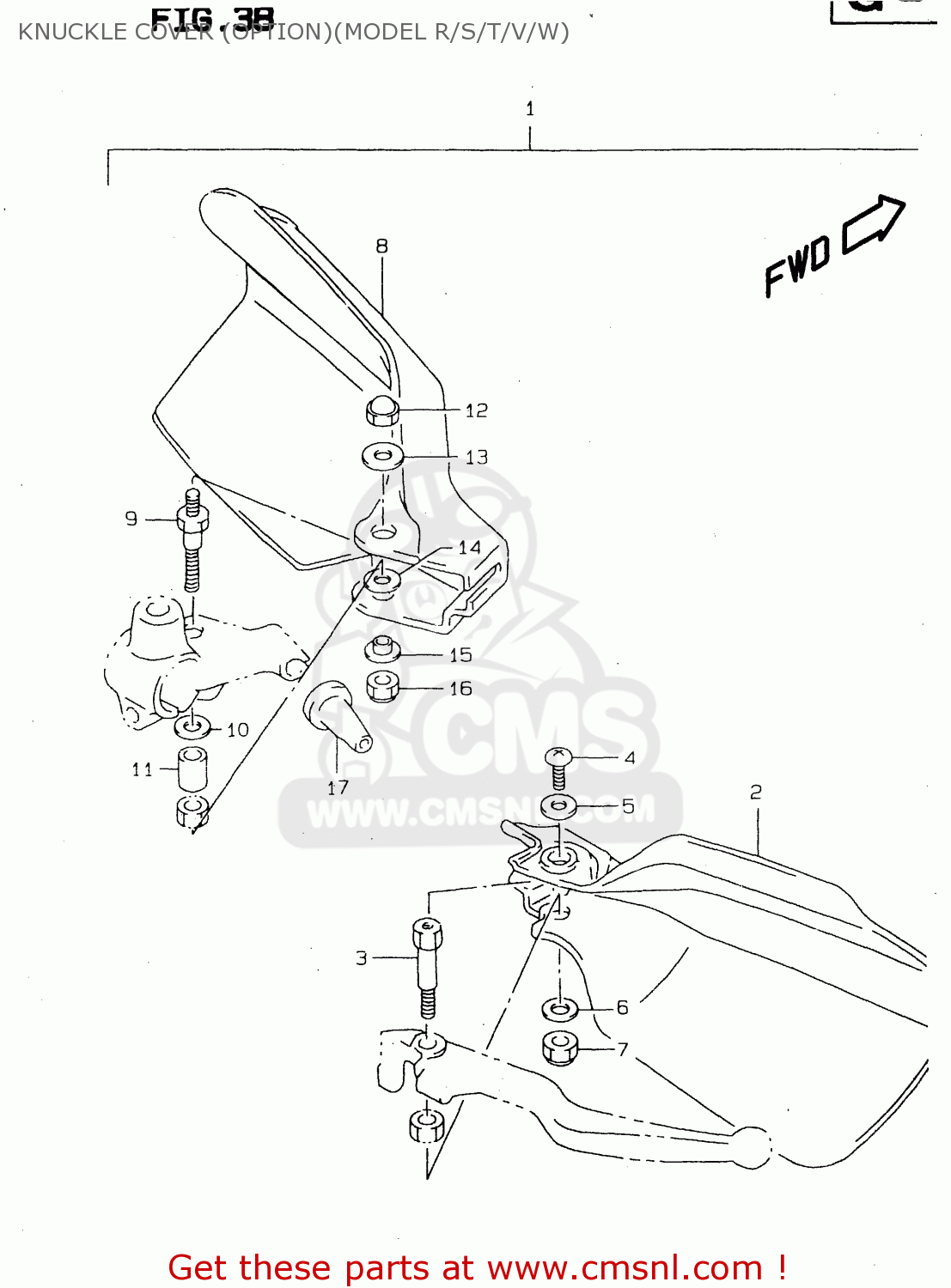

Knuckle cover (option)(model r/s/t/v/w) diagram DR125SE 1996 (T) FRANCE GERMANY (E04 E22)

KNUCKLE COVER (OPTION)(MODEL R/S/T/V/W) DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
KNUCKLE COVER (OPTION)(MODEL R/S/T/V/W) DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
KNUCKLE COVER (OPTION)(MODEL R/S/T/V/W) DR125SE 1996 (T) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
57300058100NF
ref: 1
MODEL R/S
COVER SET,KNUCKLE
57300058100NF
€ 40.00
1
5730005810Z16
ref: 1
MODEL T/V/W
COVER SET,KNUCKLE(PURPLE)
€ 0.00
1
5730005810019
ref: 1
MODEL V/W
COVER SET, KNUCKLE (BLACK)
5730005810019
€ 62.00
2
5734105D000NF
ref: 2
MODEL R/S
COVER,KNUCKLE,R
5734105D000NF
€ 28.00
2
5734105D00Z16
ref: 2
MODEL T/V/W
COVER,KNUCKLE,R
5734105D00Z16
€ 31.50
2
5734105D00019
ref: 2
MODEL V/W
COVER,KNUCKLE,RIGHT
5734105D00019
€ 21.00
3
5743105D00
ref: 3
BOLT,BRAKE LEVER PIVOT
5743105D00
€ 9.00
4
0214205107
ref: 4
SCREW
0214205107
€ 2.50
5
0916005017
ref: 5
MODEL R/S/T/V
WASHER (5.5X16X1.2)
0916005017
€ 2.50
5
0916005043
ref: 5
MODEL W
WASHER(5.5X16X1.2)
0916005043
€ 2.50
6
0916006042
ref: 6
MODEL R/S/T/V
WASHER (6.5X17X1.6)
0916006042
€ 2.00
6
0916006130
ref: 6
MODEL W
WASHER(6.5X16X1.6)
0916006130
€ 2.00
7
0831921068
ref: 7
NUT 6MM
0831921068
€ 2.00
8
5754131D000NF
ref: 8
MODEL R/S
COVER,KNUCKLE,LEFT
€ 25.50
8
5754131D00Z16
ref: 8
MODEL T/V/W
COVER,KNUCKLE,LEFT
€ 26.00
8
5754131D00019
ref: 8
MODEL V/W
COVER,KNUCKLE,LEFT
€ 21.50
9
5753144B00
ref: 9
MODEL R/S/T/V
BOLT,LEVER SET
5753144B00
€ 6.50
9
5753144B01
ref: 9
MODEL W
BOLT,CLUTCH LEVER PIVOT
5753144B01
€ 6.50
10
5753344B00
ref: 10
WASHER,LEVER SET
5753344B00
€ 2.50
11
5753244B00
ref: 11
SPACER,LEVER SET
5753244B00
€ 3.50
12
0831310067
ref: 12
NUT
0831310067
€ 2.00
13
0916006066
ref: 13
WASHER(6.5X20X1.6)
0916006066
€ 2.00
14
0916006019
ref: 14
WASHER(6.5X16X1.2)
0916006019
€ 1.50
15
0916906055
ref: 15
WASHER
0916906055
€ 2.00
16
0831921068
ref: 16
NUT 6MM
0831921068
€ 2.00
17
5827331000
ref: 17
BOOT,CLUTCH CABLE
5827331000
€ 2.50
