BATTERY

DR125SE 1999 (X) (E04 E18 E22 E34)

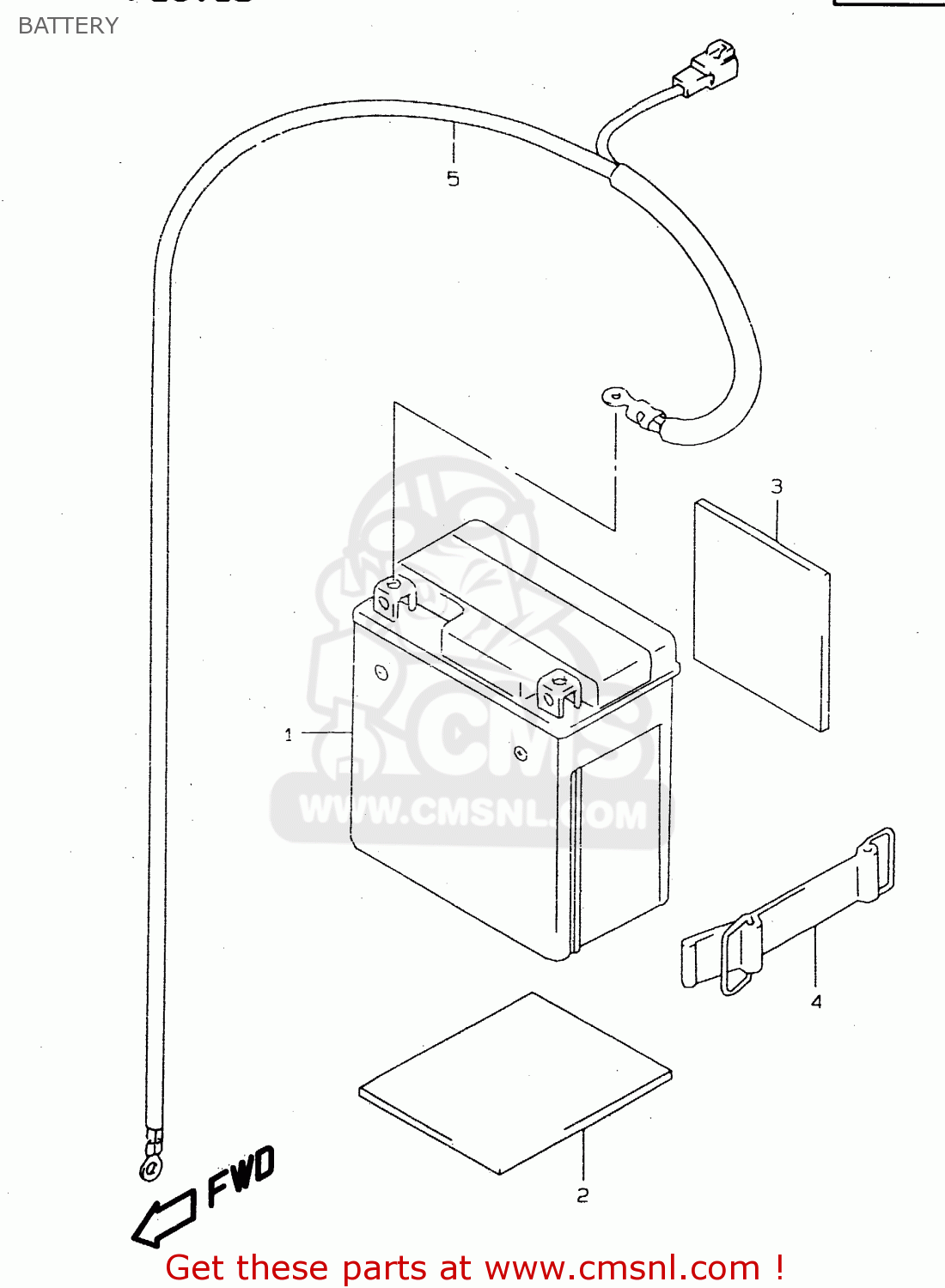

Battery diagram DR125SE 1999 (X) (E04 E18 E22 E34)

BATTERY DR125SE 1999 (X) (E04 E18 E22 E34)

BATTERY DR125SE 1999 (X) (E04 E18 E22 E34)

prices are in EUR

ref

part #

description

quantity

1

3361015D20
ref: 1

BATTERY ASSY(YTX7L-BS,12V6AH)

€ 65.50

2

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

4

0946200093
ref: 4

BAND

€ 8.50

5

3386044A00
ref: 5

WIRE,BATTERY MINUS

€ 15.00
