SPEEDOMETER
DR125SE 1999 (X) (E04 E18 E22 E34)

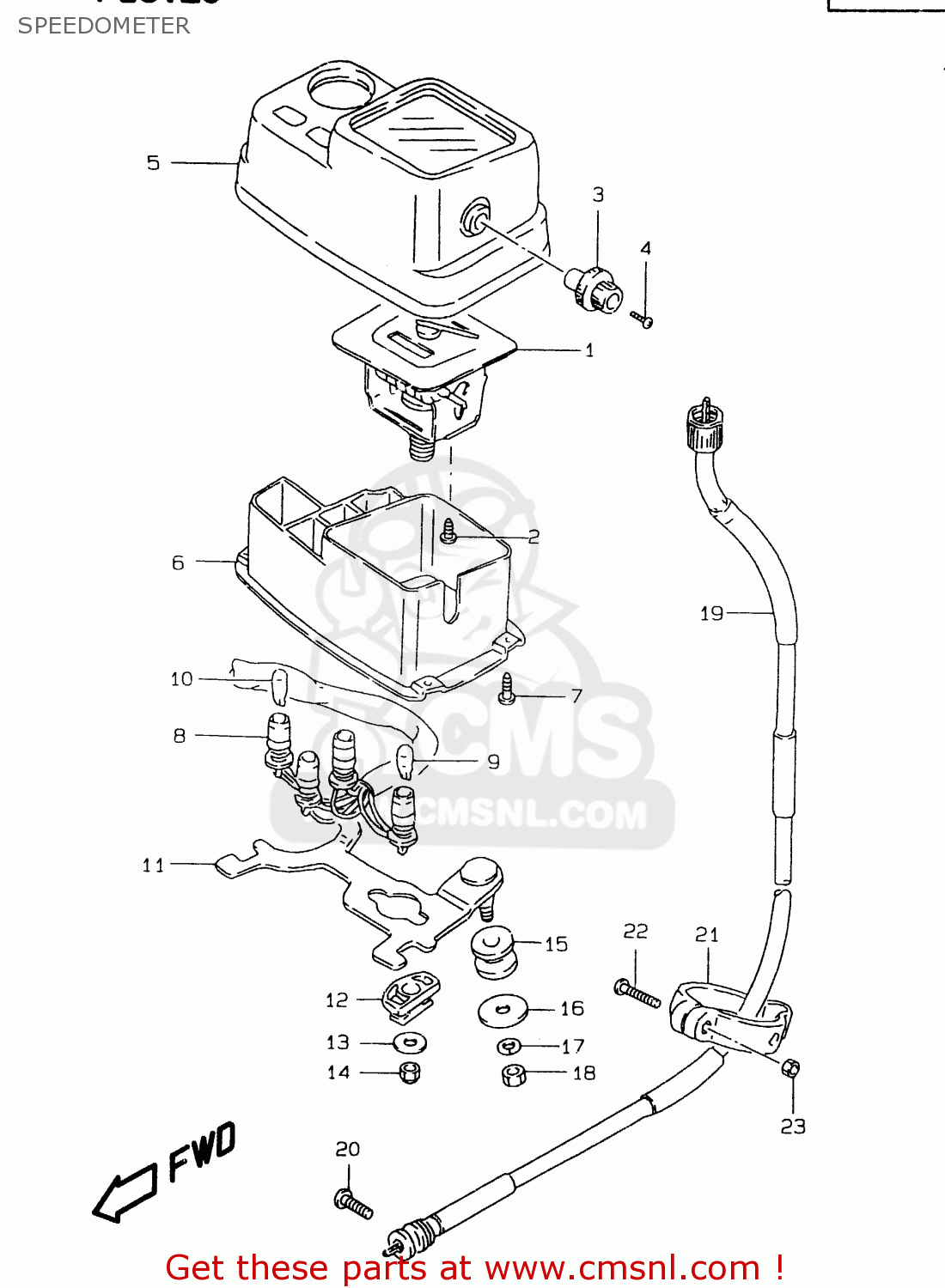

Speedometer diagram DR125SE 1999 (X) (E04 E18 E22 E34)
SPEEDOMETER DR125SE 1999 (X) (E04 E18 E22 E34)
×
prices are in EUR
ref
part #
description
quantity
1
3412044A90
ref: 1
SPEEDOMETER
€ 392.00
2
0211274123
ref: 2
SCREW
€ 2.50
3
3412414A10
ref: 3
KNOB,TRIP
€ 8.50
4
3498113A00
ref: 4
MODEL R
ROTOR,SPEED
€ 2.00
4
0913902003
ref: 4
MODEL S/T/V/W/X
SCREW(2X6)
€ 2.00
5
3415014A10
ref: 5
MODEL R, <-34150-14A
HOOD,METER
€ 48.00
5
3415014A70
ref: 5
MODEL R/S E4, E34
HOOD,METER
€ 51.00
5
3415044AD0
ref: 5
MODEL T/V/W/X
HOOD,METER
€ 34.50
6
3411114A10
ref: 6
CASE,METER
€ 36.50
7
3418314A00
ref: 7
MODEL R
SCREW
€ 1.50
7
3418412B00
ref: 7
MODEL S/T/V/W/X
SCREW
€ 1.50
8
3417344A90
ref: 8
SOCKET ASSY
€ 0.00
9
0947112028
ref: 9
BULB(12V3.4W,T10)
€ 3.50
10
0947112077
ref: 10
BULB(12V1.7W,T10,WB121)
€ 1.00
11
3495044A00
ref: 11
BRACKET,METER
€ 40.00
12
3418914A10
ref: 12
CUSHION
€ 5.00
13
0916005017
ref: 13
WASHER (5.5X16X1.2)
€ 2.50
14
0831000057
ref: 14
NUT
€ 2.50
15
3495615100
ref: 15
CUSHION
€ 4.00
16
0916006006
ref: 16
MODEL R/S/T
WASHER
€ 2.00
16
0916006132
ref: 16
MODEL V/W/X
WASHER(6.5X18X1.6)
€ 2.00
17
0832101063
ref: 17
LOCK WASHER
€ 2.00
18
0831000063
ref: 18
NUT 6MM
€ 2.00
19
3491044A20
ref: 19
CABLE ASSY,SPEEDOMETER
€ 42.50
20
0211205163
ref: 20
SCREW
€ 2.00
21
3493801A00
ref: 21
CLAMP,SPEEDOMETER CABLE
€ 7.50
22
0211205163
ref: 22
SCREW
€ 2.00
23
0831000053
ref: 23
NUT
€ 2.50
