HANDLE LEVER
DR125SE 1999 (X) (E04 E18 E22 E34)

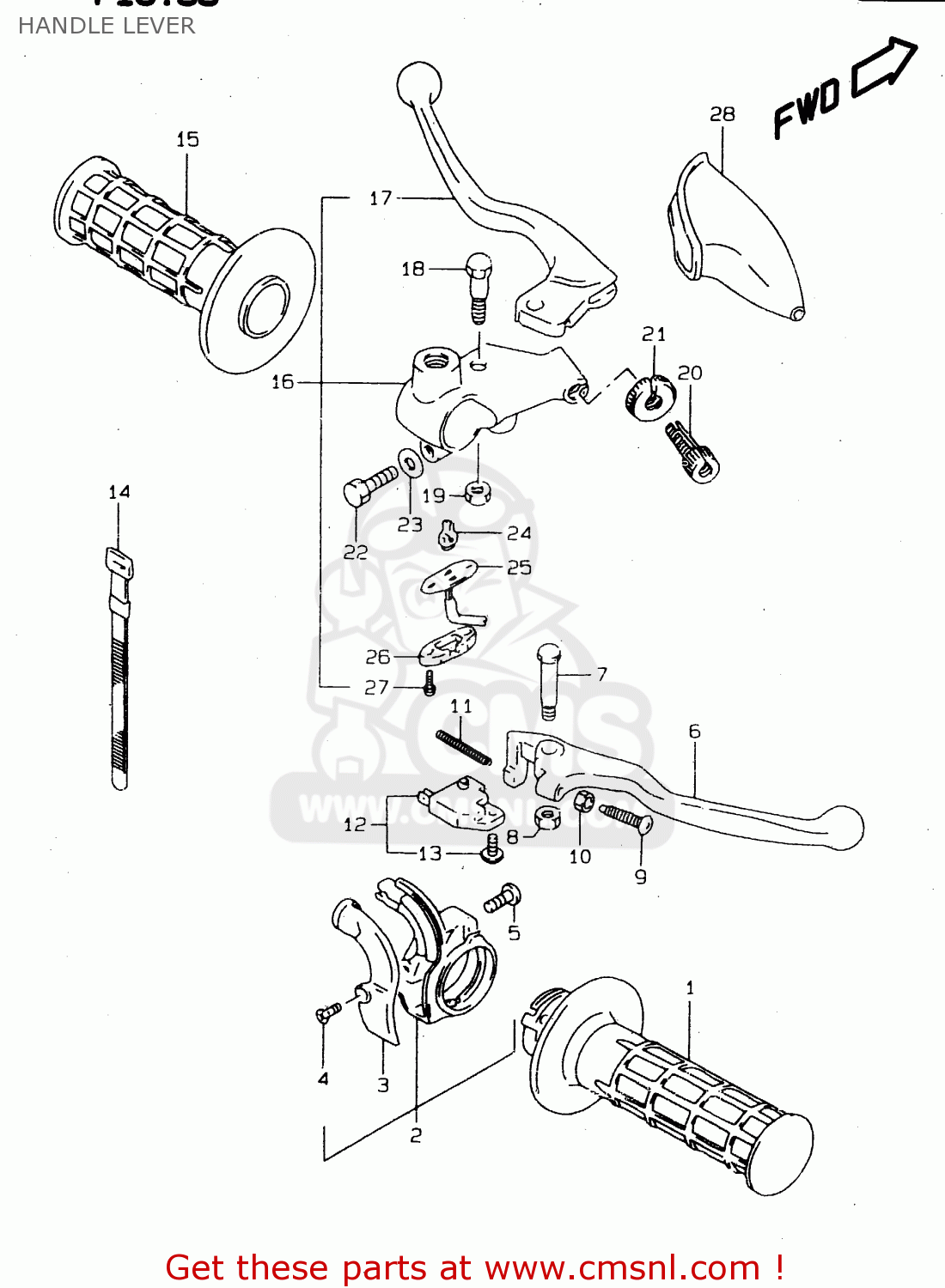

Handle lever diagram DR125SE 1999 (X) (E04 E18 E22 E34)
HANDLE LEVER DR125SE 1999 (X) (E04 E18 E22 E34)
×
prices are in EUR
ref
part #
description
quantity
1
5711014D00
ref: 1
GRIP,THROTTLE
€ 25.50
2
5710028B00
ref: 2
CASE ASSEMBLY,THROTTLE
€ 34.00
3
5712913601
ref: 3
COVER,THROTTLE CASE
€ 7.00
4
0212204103
ref: 4
SCREW,UPPER
€ 2.50
5
0211205164
ref: 5
SCREW
€ 2.00
6
5742103D00
ref: 6
LEVER,BRAKE
€ 14.50
7
5743114500
ref: 7
BOLT,BRAKE LEVER
€ 4.00
8
0831921068
ref: 8
NUT 6MM
€ 2.00
9
5743114511
ref: 9
BOLT,ADJUST
€ 3.50
10
0831000053
ref: 10
NUT
€ 2.50
11
5731814502
ref: 11
SPRING,RETURN
€ 3.00
12
5746017C00
ref: 12
SWITCH ASSEMBLY,STOP
€ 32.50
13
5746517C00
ref: 13
SCREW
€ 1.50
14
0940712402
ref: 14
CLAMP(L:120)
€ 3.00
15
5721127C00
ref: 15
GRIP,L
€ 11.00
16
5750044AA0
ref: 16
MODEL R/S/T
LEVER ASSY,CLUTCH
€ 49.00
16
5750044AD0
ref: 16
MODEL V/W/X
LEVER ASSEMBLY,CLUTCH
€ 71.50
17
5762015D11
ref: 17
LEVER,CLUTCH
€ 26.00
18
5743111013
ref: 18
BOLT,LEVER PIVOT
€ 6.00
19
0831921068
ref: 19
NUT 6MM
€ 2.00
20
5744111010
ref: 20
ADJUSTER,CABLE
€ 8.00
21
5744244B00
ref: 21
NUT,LOCK
€ 11.50
22
0150006207
ref: 22
BOLT
€ 2.00
23
0832201067
ref: 23
WASHER
€ 2.00
24
5746518601
ref: 24
CONTACT,SWITCH
€ 4.50
25
5754149100
ref: 25
HARNESS ASSY,WIRE
€ 5.00
26
5748133010
ref: 26
COVER,FR BK TERMINAL BASE
€ 19.50
27
5748449110
ref: 27
SCREW
€ 1.50
28
5734140001
ref: 28
COVER,CLUTCH LEVER
€ 7.50
