GEAR SHIFTING
DR125SE 1999 (X) (E04 E18 E22 E34)

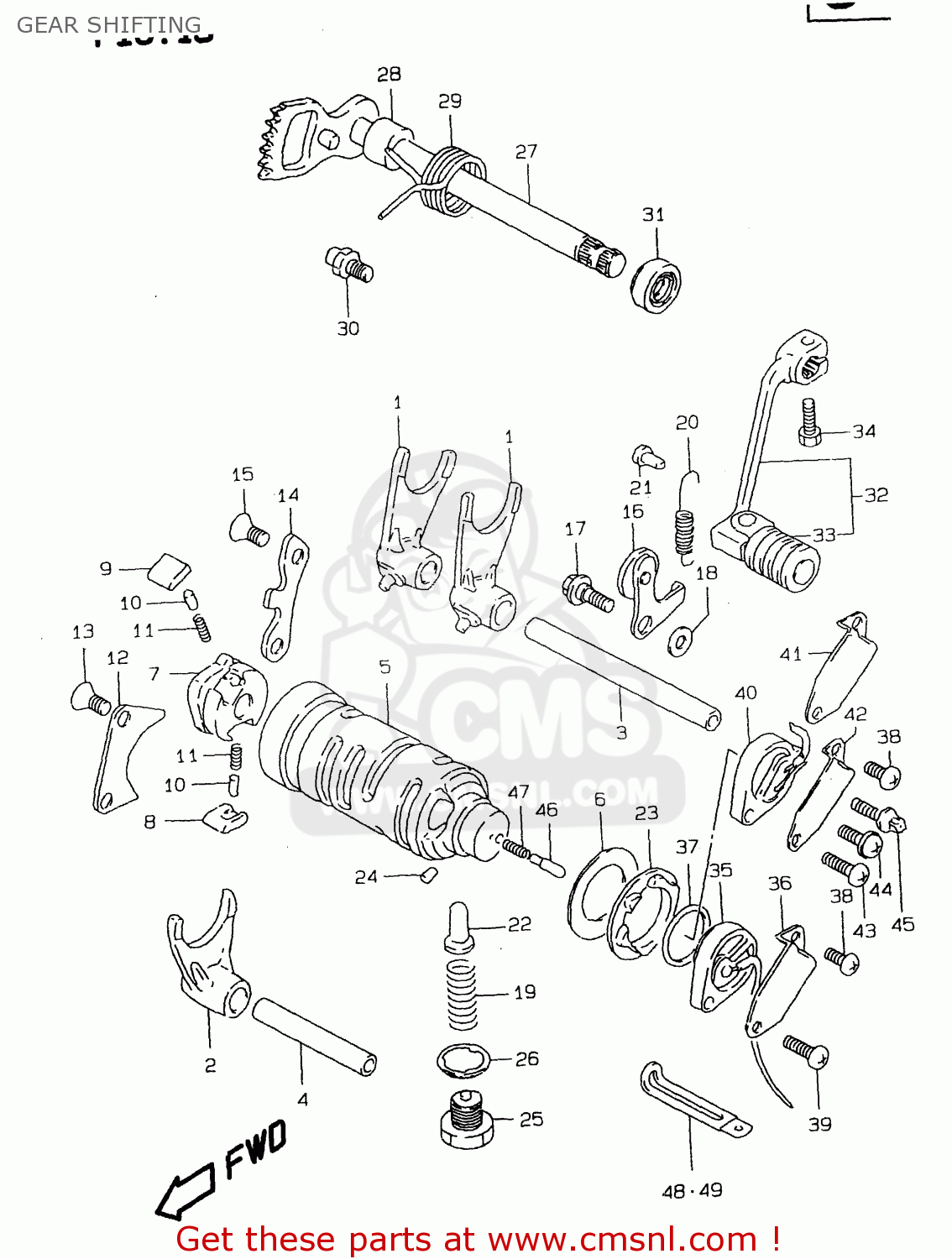

Gear shifting diagram DR125SE 1999 (X) (E04 E18 E22 E34)
GEAR SHIFTING DR125SE 1999 (X) (E04 E18 E22 E34)
×
prices are in EUR
ref
part #
description
quantity
1
2522108300
ref: 1
FORK,GEAR SHIFT NO.2
€ 54.50
2
2523105201
ref: 2
FORK,GEAR SHIFT NO.3
€ 54.50
3
2541116701
ref: 3
<-25411-05201
SHAFT,GEAR SHIFT FORK(L:109)
€ 11.50
4
2542135402
ref: 4
MODEL R
SHAFT,GEAR SHIFT FORK
€ 19.00
4
2542135403
ref: 4
MODEL S/T/V/W/X
SHAFT,GEAR SHIFT FORK
€ 19.00
5
2531044A00
ref: 5
CAM,GEAR SHIFT
€ 166.50
6
0821125401
ref: 6
MODEL R/S/T
WASHER,THRUST
€ 2.50
6
0918125251
ref: 6
MODEL V/W/X
SHIM(25X40X1)
€ 2.50
7
2532231302
ref: 7
MODEL R/S/T/V, <-253
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7
2532231310
ref: 7
MODEL W/X
GEAR,GEAR SHIFT CAM DRIVEN
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533130001
ref: 12
LIFTER,GEAR SHIFT POLE
€ 3.50
13
0212206123
ref: 13
SCREW
€ 3.00
14
2534105200
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0212206123
ref: 15
SCREW
€ 3.00
16
2535044A00
ref: 16
STOPPER,GEAR SHIFT CAM
€ 8.00
17
0911106019
ref: 17
MODEL R
BOLT
€ 1.50
17
0911106054
ref: 17
MODEL S/T/V/W/X
BOLT(6X14.6)
€ 1.50
18
0821106141
ref: 18
WASHER
€ 2.50
19
0944011014
ref: 19
SPRING
€ 1.50
20
0944308044
ref: 20
SPRING
€ 1.50
21
0922304001
ref: 21
RIVET
€ 1.50
22
2535130010
ref: 22
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
23
2538145400
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
24
0621104063
ref: 24
MODEL R/S
PIN 4X6
€ 2.00
24
0422104069
ref: 24
MODEL T/V/W/X
PIN
€ 2.00
25
0924714026
ref: 25
PLUG(14X12)
€ 3.50
26
0916814004
ref: 26
MODEL R
GASKET(14X19.2X2) (NAS)
€ 2.50
26
0916814002
ref: 26
MODEL S/T/V/W/X
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
27
2551005201
ref: 27
SHAFT,GEAR SHIFT
€ 42.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
€ 3.00
29
0944426001
ref: 29
SPRING
€ 4.00
30
2567101000
ref: 30
STOPPER,GEAR SHIFT CAM
€ 3.00
31
0928512002
ref: 31
OIL SEAL
€ 7.00
32
2560042A00
ref: 32
LEVER ASSY,GEAR SHIFT
€ 26.00
33
2565203D00
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 3.50
34
0150006203
ref: 34
BOLT
€ 2.00
35
3772042A30
ref: 35
MODEL R/S/T
BASE ASSY,NEUTRAL SW TERMINAL
€ 26.00
36
3772142A00
ref: 36
MODEL R/S/T
PROTECTOR,GEAR SHIFT SW
€ 3.00
37
0928022001
ref: 37
O RING(D:2.4,ID:21.8)
€ 2.00
38
0211205083
ref: 38
SCREW
€ 2.00
39
0211205163
ref: 39
SCREW
€ 2.00
40
3772044A00
ref: 40
MODEL V/W/X, DR125SE
BASE ASSY,GEAR SHIFT TERMINAL
€ 30.50
40
3773044A10
ref: 40
MODEL V/W/X, DR125SE
BASE ASSY,GEAR SHIFT TERMINAL
€ 93.50
40
3773044A00
ref: 40
MODEL V/W/X, DR125SE
BASE ASSY,GEAR SHIFT TERMINAL
€ 79.50
41
3772142A00
ref: 41
MODEL V/W/X, DR125SE
PROTECTOR,GEAR SHIFT SW
€ 3.00
42
3772144A00
ref: 42
MODEL V/W/X E22
PROTECTOR,NEUTRAL SW
€ 3.00
43
0211205163
ref: 43
MODEL V/W/X, DR125SE
SCREW
€ 2.00
44
0214205203
ref: 44
MODEL V/W/X, DR125SE
SCREW 5X20
€ 2.00
45
0911905022
ref: 45
MODEL V/W/X, DR125SE
BOLT
€ 2.00
46
0920905011
ref: 46
PIN(5X15.5)
€ 2.00
47
0944004010
ref: 47
SPRING
€ 1.50
48
0940406432
ref: 48
<-09404-06422
CLAMP(L:65)
€ 2.50
49
0940406432
ref: 49
<-09404-06402, <-094
CLAMP(L:65)
€ 2.50
