FRAME COVER (MODEL R/S/T)

DR125SE 1999 (X) (E04 E18 E22 E34)

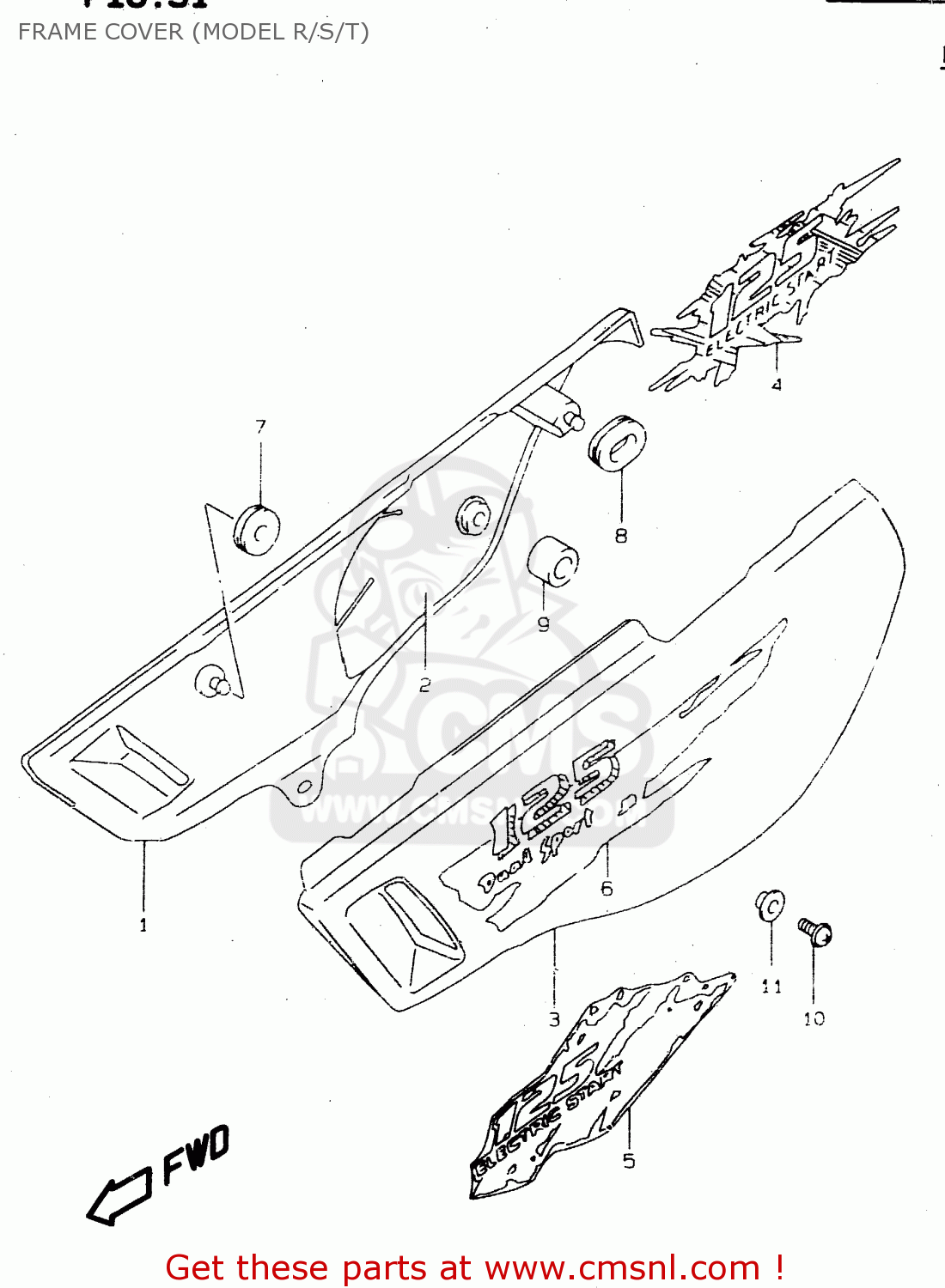

Frame cover (model r/s/t) diagram DR125SE 1999 (X) (E04 E18 E22 E34)

FRAME COVER (MODEL R/S/T) DR125SE 1999 (X) (E04 E18 E22 E34)

FRAME COVER (MODEL R/S/T) DR125SE 1999 (X) (E04 E18 E22 E34)

prices are in EUR

ref

part #

description

quantity

1

4711144AA030H
ref: 1

COVER,FRAME,R(WHITE)

€ 61.50

2

4716644AA0
ref: 2

SHIELD,FRAME COVER,R

€ 14.50

3

4721144AA030H
ref: 3

COVER,FRAME,L(WHITE)

€ 42.00

4

6814044AB01YD
ref: 4
MODEL R

EMBLEM, FRAME COVER

€ 0.00

5

6813544A20D1T
ref: 5
MODEL S

TAPE,FRAME COVER

€ 0.00

5

6814544A20D1T
ref: 5
MODEL S

TAPE,FRAME COVER

€ 0.00

6

6813544A70Z65
ref: 6
MODEL T

TAPE,FRAME COVER,R

€ 0.00

6

6814544A70Z65
ref: 6
MODEL T

TAPE,FRAME COVER,LEFT

€ 0.00

7

0932008018
ref: 7

CUSHION

€ 4.00

8

0932008029
ref: 8

CUSHION

€ 2.50

9

0932110027
ref: 9

CUSHION

€ 5.50

10

0913606017
ref: 10

SCREW(6X16)

€ 2.50

11

0916906028
ref: 11

WASHER

€ 2.00
