TURN SIGNAL LAMP
DR125SE 1999 (X) (E04 E18 E22 E34)

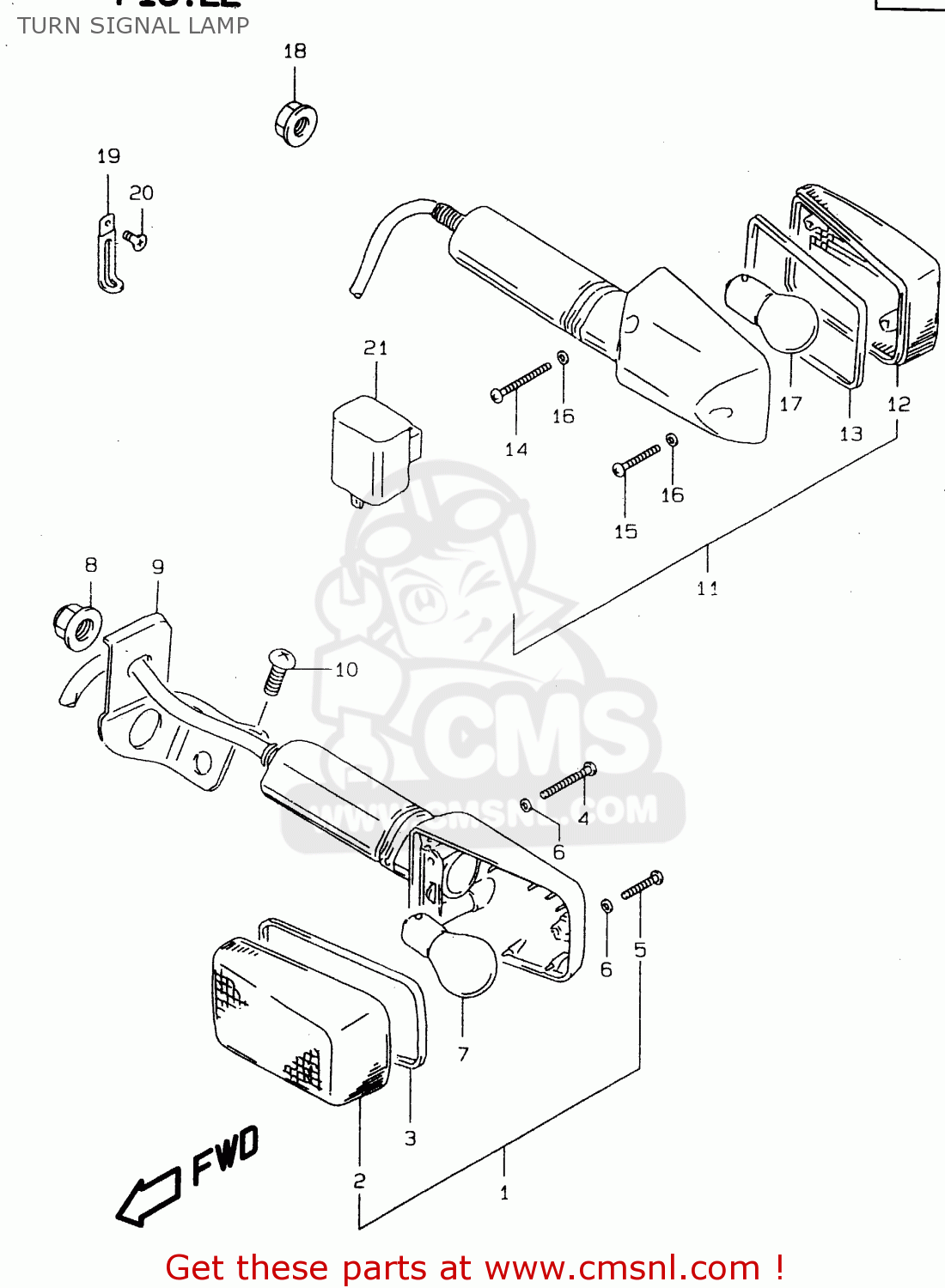

Turn signal lamp diagram DR125SE 1999 (X) (E04 E18 E22 E34)
TURN SIGNAL LAMP DR125SE 1999 (X) (E04 E18 E22 E34)
×
prices are in EUR
ref
part #
description
quantity
1
3560129E30
ref: 1
LAMP ASSY,FR TURN SIGNAL
€ 57.50
1
3560129EC0
ref: 1
E18, E22
LAMP ASSY,FR TURN SIGNAL
€ 78.00
2
3561217C20
ref: 2
LENS
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
€ 1.50
5
3572540511
ref: 5
SCREW
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
€ 5.00
8
0831610103
ref: 8
NUT
€ 2.00
9
3567044A01
ref: 9
BRACKET,FR TURN,R
€ 13.50
9
3568044A01
ref: 9
BRACKET,FR TURN,L
€ 13.50
10
0214205083
ref: 10
SCREW
€ 2.00
11
3560329E90
ref: 11
<-35603-29E60
LAMP ASSY,RR TURNSIGNAL,R
€ 62.00
12
3565217C20
ref: 12
LENS
€ 6.50
13
3561327A00
ref: 13
GASKET (NAS)
€ 3.00
14
3562327A00
ref: 14
SCREW(3X30)
€ 1.50
15
3572540511
ref: 15
SCREW
€ 1.50
16
3562727A02
ref: 16
GASKET (NAS)
€ 1.50
17
0947112045
ref: 17
BULB(12V21W)
€ 5.00
18
0831610103
ref: 18
NUT
€ 2.00
19
0940406432
ref: 19
<-09404-04402
CLAMP(L:65)
€ 2.50
20
0354104103
ref: 20
SCREW
€ 1.50
21
3861031X50
ref: 21
RELAY ASSY,TURNSIGNAL
€ 54.50
21
3861006F00
ref: 21
E18, E22, <-38610-45
RELAY ASSY,TURNSIGNAL
€ 67.50
