CYLINDER

DR200 1988 (J) USA (E03)

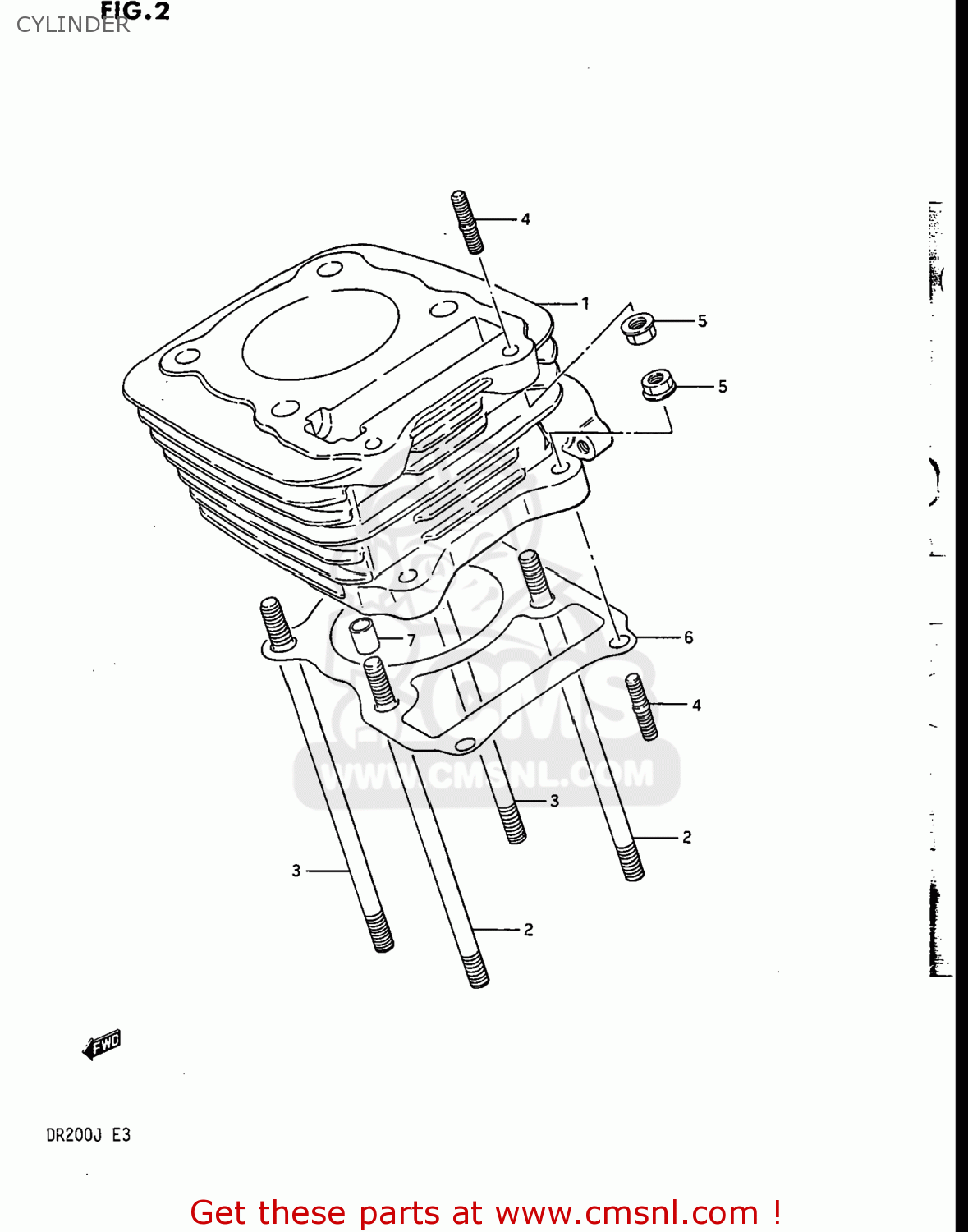

Cylinder diagram DR200 1988 (J) USA (E03)

CYLINDER DR200 1988 (J) USA (E03)

CYLINDER DR200 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121042A00
ref: 1
11210-42A01

CYLINDER

€ 281.00

2

0910808195
ref: 2

BOLT,STUD

€ 4.00

3

0910808184
ref: 3

BOLT,STUD(8X167)

€ 4.00

4

0142106255
ref: 4
01421-0625A

STUD 6X25

€ 2.00

5

0831616064
ref: 5
08316-1006B

NUT 6MM

€ 2.50

6

1124142A00
ref: 6
11241-42A10

GASKET,CYLINDER (MCA)

€ 4.00

7

0421111149
ref: 7

PIN

€ 2.00
