FRONT MASTER CYLINDER

DR200 1988 (J) USA (E03)

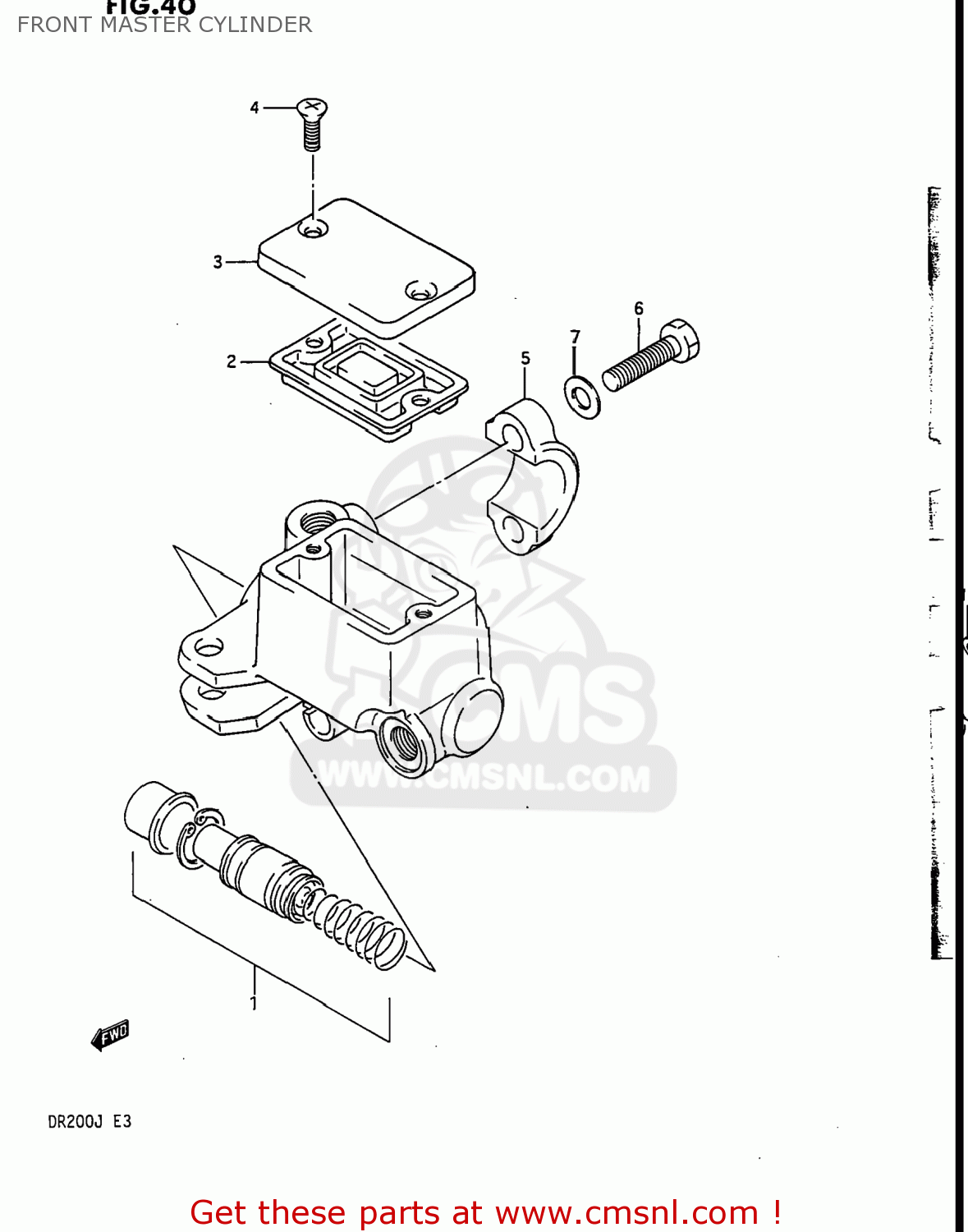

Front master cylinder diagram DR200 1988 (J) USA (E03)

FRONT MASTER CYLINDER DR200 1988 (J) USA (E03)
FRONT MASTER CYLINDER DR200 1988 (J) USA (E03)
FRONT MASTER CYLINDER DR200 1988 (J) USA (E03)
prices are in EUR
ref
part #
description
quantity

5960013A20
ref:
59600-13A60
CYLINDER ASSEMBLY,FRONT MASTER
5960013A20
€ 191.50
1
5960013820
ref: 1
PISTON/CUP SET
5960013820
€ 40.50
2
5966704700
ref: 2
DIAPHRAGM
5966704700
€ 8.00
3
5966904710
ref: 3
69669-24A01
CAP
5966904710
€ 12.00
4
6968949300
ref: 4
SCREW
6968949300
€ 1.50
5
5967136500
ref: 5
HOLDER
5967136500
€ 10.00
6
0110706255
ref: 6
01500-0625A
BOLT
0110706255
€ 2.50
7
0832221064
ref: 7
08322-0106B
WASHER
0832221064
€ 2.00
