REAR COMBINATION LAMP
DR200 1988 (J) USA (E03)

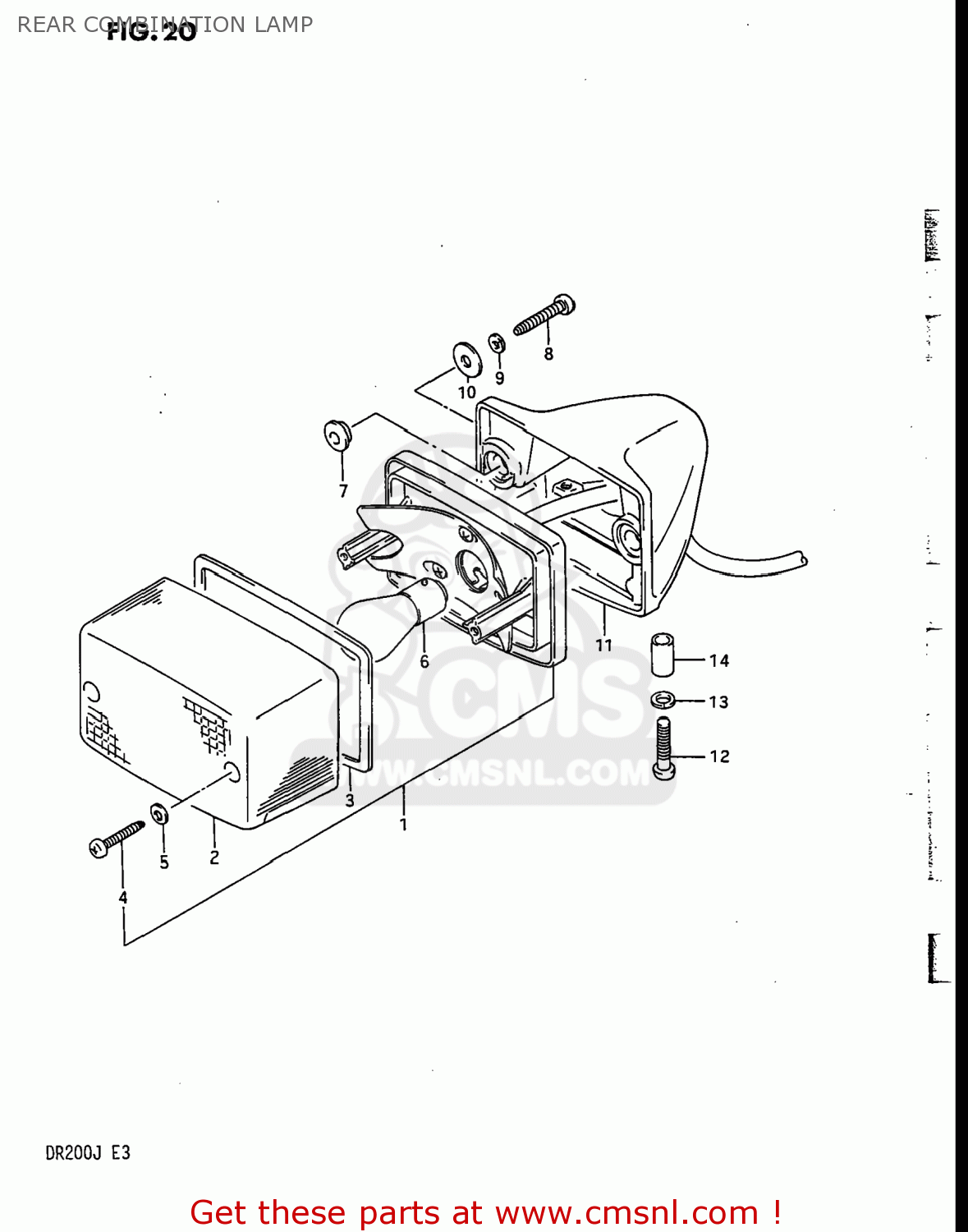

Rear combination lamp diagram DR200 1988 (J) USA (E03)
REAR COMBINATION LAMP DR200 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3572042A00
ref: 1
LAMP UNIT,REAR COMBINATION
€ 79.50
2
3571224530
ref: 2
35712-24531
LENS,REAR COMBINATION LAMP
€ 21.50
3
3571313600
ref: 3
GASKET,RR COMBI LAMP LENS (NAS)
€ 3.50
4
0321104208
ref: 4
03211-04207
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947106049
ref: 6
BULB(6V5W,TOKAI DENSO)
€ 3.50
7
3576601A00
ref: 7
SPACER,RR COMBI
€ 3.00
8
0321105255
ref: 8
03212-05253
SCREW
€ 2.50
9
0832121055
ref: 9
08321-0105A
WASHER,LOCK
€ 3.00
10
3572717210
ref: 10
09160-05037
WASHER
€ 1.50
11
3573042A00
ref: 11
BRACKET UNIT,TAIL LAMP
€ 39.00
12
0211206256
ref: 12
02112-0625A
SCREW
€ 1.50
13
0832121066
ref: 13
08321-0106A
WASHER,LOCK
€ 2.00
14
0918006121
ref: 14
SPACER(6.4X9.2X12)
€ 2.50
