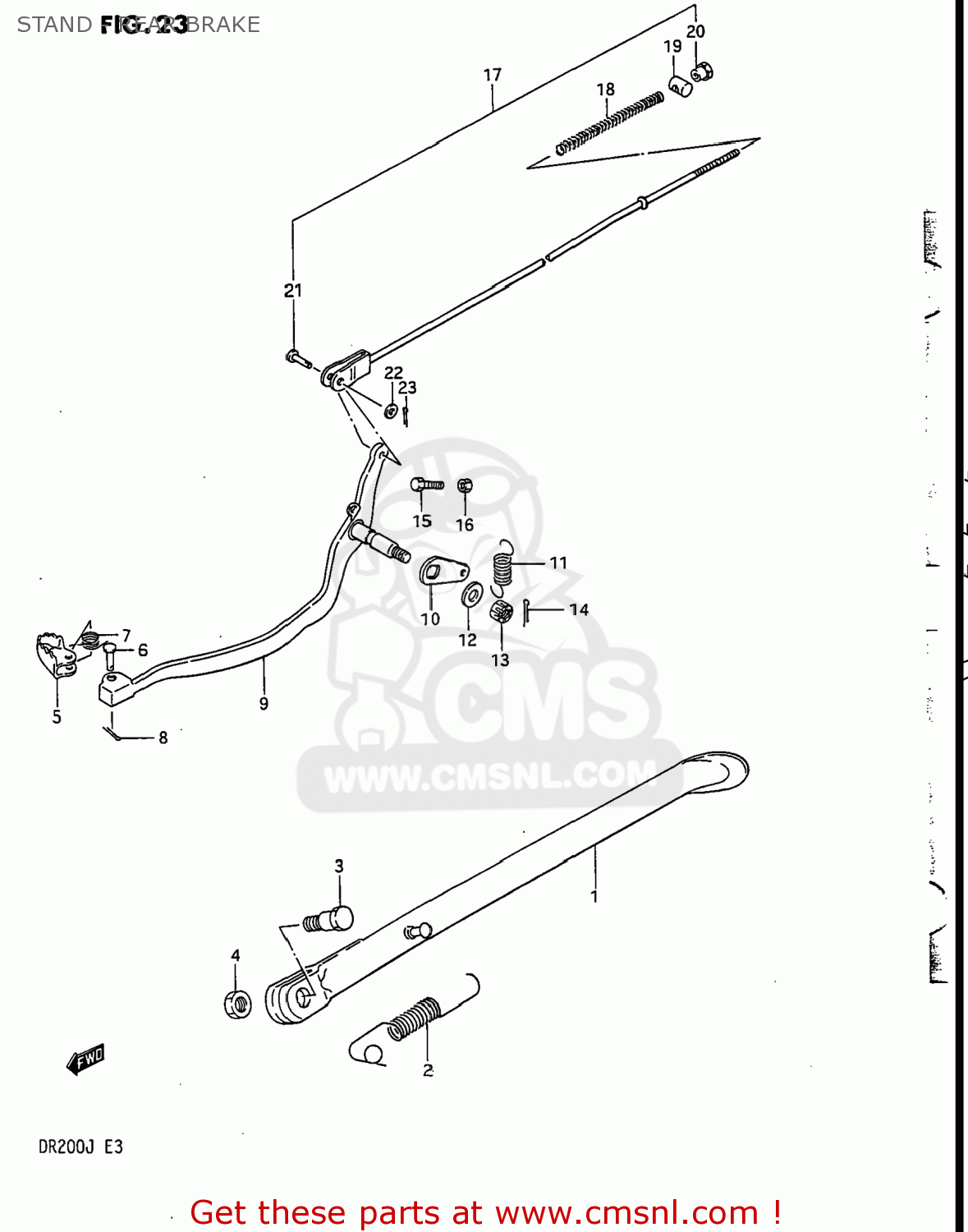

STAND - REAR BRAKE - DR200 1988 (J) USA (E03)

ref

part #

description

quantity

1-1

4231042A0019F
ref: 1-1
42310-42A00-13L

STAND,SIDE

€ 26.00

1-2

4231042A0013L
ref: 1-2

STAND COMP,PROP

€ 26.00

1-3

4231042A0034S
ref: 1-3
42310-42A00-13L

STAND,SIDE

€ 26.00

2

0944317007
ref: 2

SPRING

€ 4.50

3-1

0911110019
ref: 3-1
09111-10047

BOLT L:30

€ 4.50

3-2

0911110038
ref: 3-2
09111-10047

BOLT L:30

€ 4.50

4

0831022107
ref: 4
08310-00107

NUT

€ 2.50

5

4311014130
ref: 5

PEDAL,BRAKE

€ 6.00

6

0920006038
ref: 6

PIN

€ 2.00

7

0944411004
ref: 7
09444-11005

SPRING

€ 3.00

8

0411120158
ref: 8
04111-2015A

PIN

€ 1.50

9

4312044A01
ref: 9
43120-44A03

ARM,BRAKE PEDAL

€ 27.00

10

4312838200
ref: 10

ARM,BRAKE RETURN SPRING

€ 3.50

11

0944314002
ref: 11

SPRING

€ 2.50

12

0821108202
ref: 12

WASHER

€ 1.50

13

0831441088
ref: 13
08314-4008B

NUT 8MM

€ 2.50

14

0411120208
ref: 14
04111-2020A

PIN 20X20

€ 1.50

15

0910006009
ref: 15

BOLT(6X23)

€ 1.50

16

0831011067
ref: 16
08310-00067

NUT 6MM

€ 2.50

17

4330042A01
ref: 17
43300-42A02

ROD ASSEMBLY,REAR BRAKE

€ 12.50

18

0944009004
ref: 18

SPRING

€ 2.00

19

0920913005
ref: 19
09209-13018

PIN

€ 3.50

20

0915006009
ref: 20
09150-06010

NUT (6MM)

€ 3.50

21

0920006013
ref: 21

PIN(L:13.5)

€ 2.00

22

0832221067
ref: 22
08322-01067

WASHER

€ 2.00

23

0411120208
ref: 23
04111-2020A

PIN 20X20

€ 1.50

STAND - REAR BRAKE
