HEADLAMP

DR200 1988 (J) USA (E03)

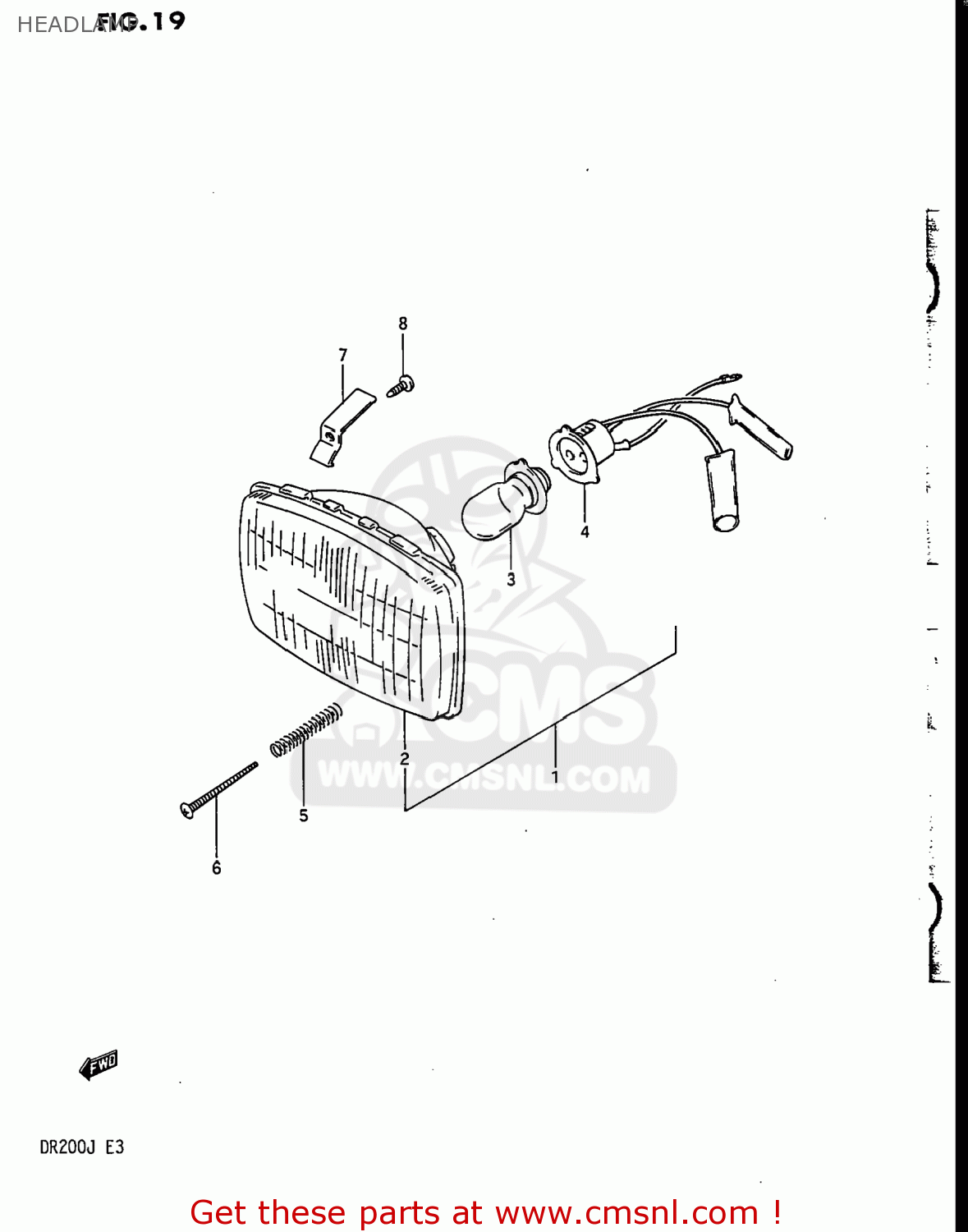

Headlamp diagram DR200 1988 (J) USA (E03)

HEADLAMP DR200 1988 (J) USA (E03)

HEADLAMP DR200 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510037230
ref: 1

HEADLAMP ASSEMBLY

€ 0.00

2

3512137200
ref: 2

LAMP UNIT

€ 82.50

3

0947106015
ref: 3

BULB

€ 7.50

4

3517143020
ref: 4
35171-09X50

SOCKET,HEADLAMP

€ 12.50

5

3515435300
ref: 5

SPRING,HEAD LAMP ADJUSTER

€ 3.00

6

3515135302
ref: 6
35623-09400

SCREW,HEADLAMP ADJUST

€ 2.50

7

3512837200
ref: 7

SPRING

€ 3.50

8

3515437200
ref: 8
09132-03002

SPRING,HEADLAMP ADJUST

€ 1.50
