TRIP METER
DR200 1988 (J) USA (E03)

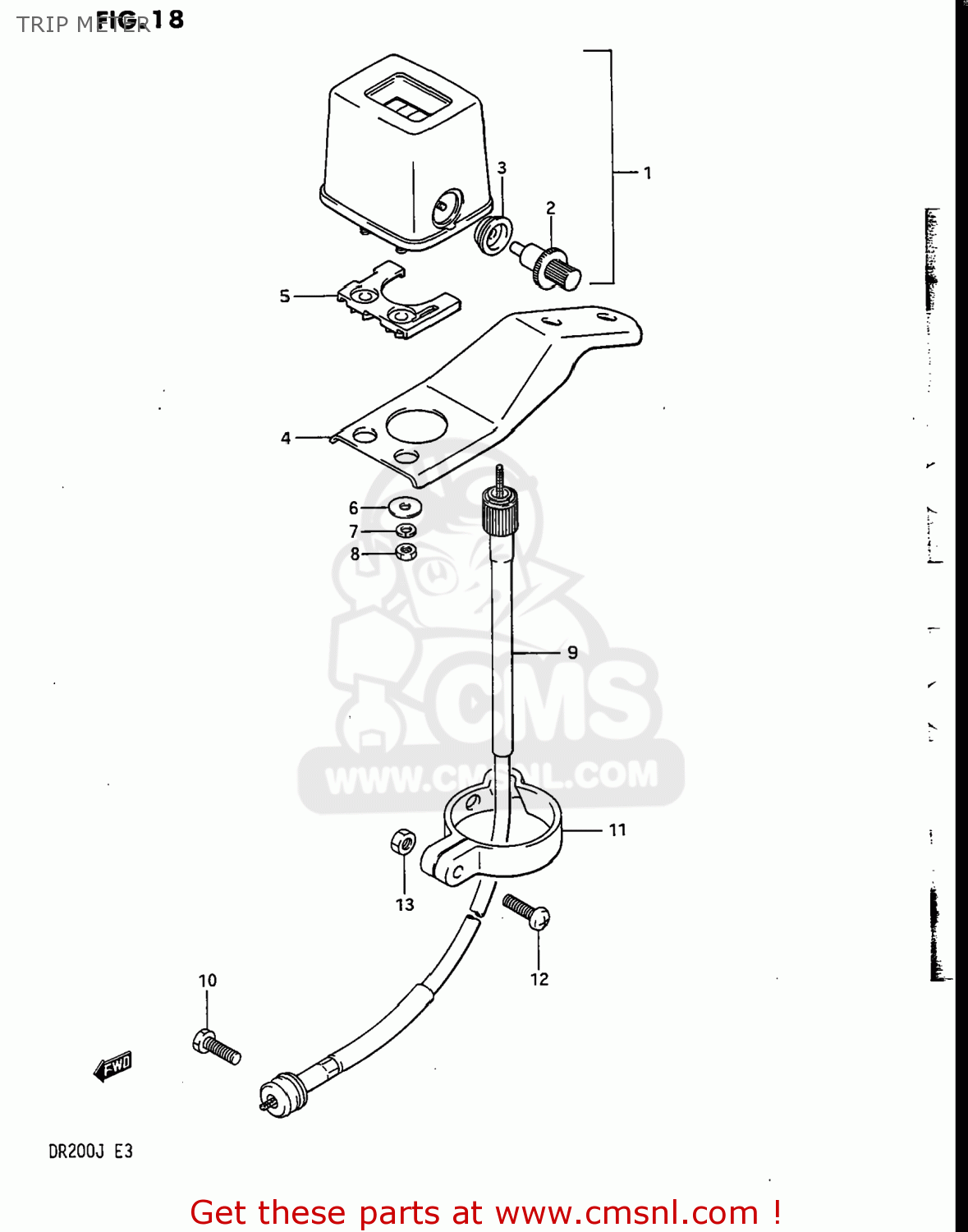

Trip meter diagram DR200 1988 (J) USA (E03)
TRIP METER DR200 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3472140610
ref: 1
34721-05D20
TRIP METER
€ 136.50
2
3412440610
ref: 2
KNOB,TRIP METER
€ 6.00
3
3412641410
ref: 3
COVER,TRIPMETER KNOB
€ 2.00
4
3472544A10
ref: 4
BRACKET,TRIPMETER
€ 27.00
5
3472641410
ref: 5
CUSHION,TRIPMETER
€ 4.00
6
3472741410
ref: 6
09160-04022
WASHER,METER
€ 1.50
7
0832121048
ref: 7
08321-0104A
LOCK WASHER
€ 2.00
8
0831011047
ref: 8
08310-00047
NUT
€ 2.00
9
3491042A10
ref: 9
34910-08D00
CABLE ASSEMBLY,SPEEDOMETER
€ 65.50
10
0110705167
ref: 10
01500-0516B
BOLT
€ 1.50
11
3493801A00
ref: 11
CLAMP,SPEEDOMETER CABLE
€ 7.50
12
0211205165
ref: 12
02112-05164
SCREW
€ 2.00
13
0831012055
ref: 13
08310-0005A
NUT ,5MM
€ 2.50
