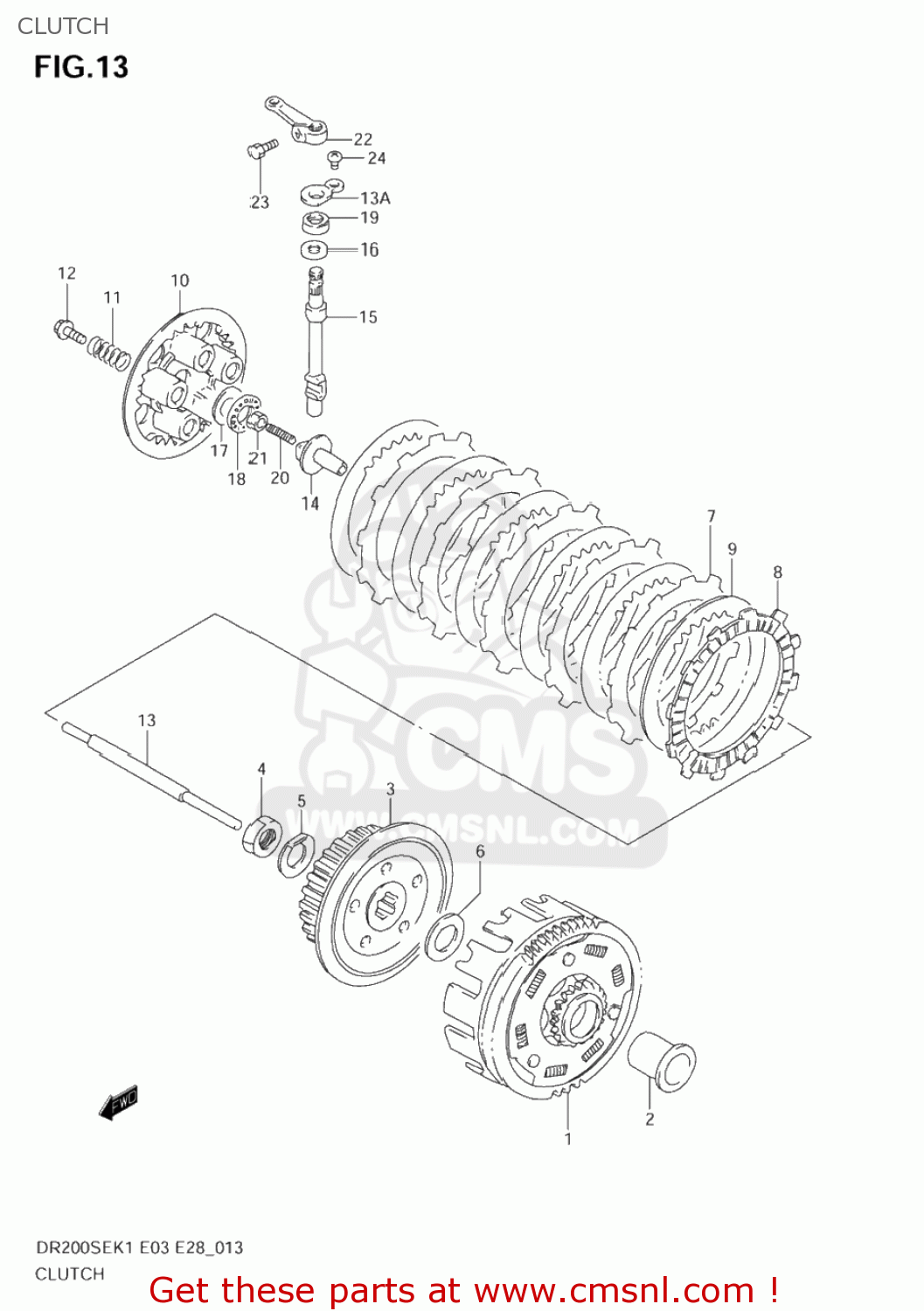

CLUTCH

ref

part #

description

quantity

1

2120042A50
ref: 1

GEAR ASSY,PRI DRIVEN

€ 236.50

2

2125113E00
ref: 2

SPACER,PRIMARY DRIVEN GEAR

€ 11.50

3

2141142A02
ref: 3

HUB,CLUTCH SLEEVE

€ 41.00

4

0914016001
ref: 4

NUT

€ 4.50

5

0916916003
ref: 5

WASHER

€ 2.00

6

0821120355
ref: 6

WASHER

€ 1.00

7-1

2144142A00
ref: 7-1
21441-25C01

PLATE,CLUTCH DRIVE (NAS)

€ 12.00

7-2

2144125C01
ref: 7-2

PLATE,CLUTCH DRIVE (NAS)

€ 12.00

8

2144113A01
ref: 8

PLATE,CLUTCH DRIVE(T:3.0) (NAS)

€ 8.50

9

2145101B40
ref: 9

PLATE,DRIVEN(T:1.4)

€ 4.50

10

2146214102
ref: 10
21462-14103

PLATE,CLUTCH PRESSURE

€ 16.00

11

0944015021
ref: 11

SPRING

€ 4.50

12

0911605020
ref: 12

BOLT(5X16)

€ 2.50

13

2311005202
ref: 13
23110-05203

ROD,CLUTCH PUSH

€ 11.00

13A

2311705200
ref: 13A

RETAINER,CL RLSE OIL SEAL

€ 3.50

14

2312138201
ref: 14

PIECE,CLUTCH PUSH

€ 17.00

15

2312205200
ref: 15

CAMSHAFT,CLUTCH RELEASE

€ 31.00

16

0918110195
ref: 16

SHIM(10X20X1)

€ 2.00

17

0916015045
ref: 17

WASHER(15.5X28X1)

€ 4.00

18

0926315003
ref: 18

BEARING(15X28X2)

€ 7.00

19

0928210012
ref: 19

SEAL,OIL(10X20X6)

€ 7.50

20

0913406010
ref: 20

SCREW(6X25)

€ 3.00

21

0914006023
ref: 21

NUT

€ 2.00

22

2327146010
ref: 22

ARM,CLUTCH RELEASE

€ 14.50

23

0150006163
ref: 23
01500-0616A

BOLT

€ 2.00

24

0214206103
ref: 24
02142-0610A

SCREW 6X10

€ 2.00
