REAR COMBINATION LAMP
DR200SE 2002 (K2) USA (E03)

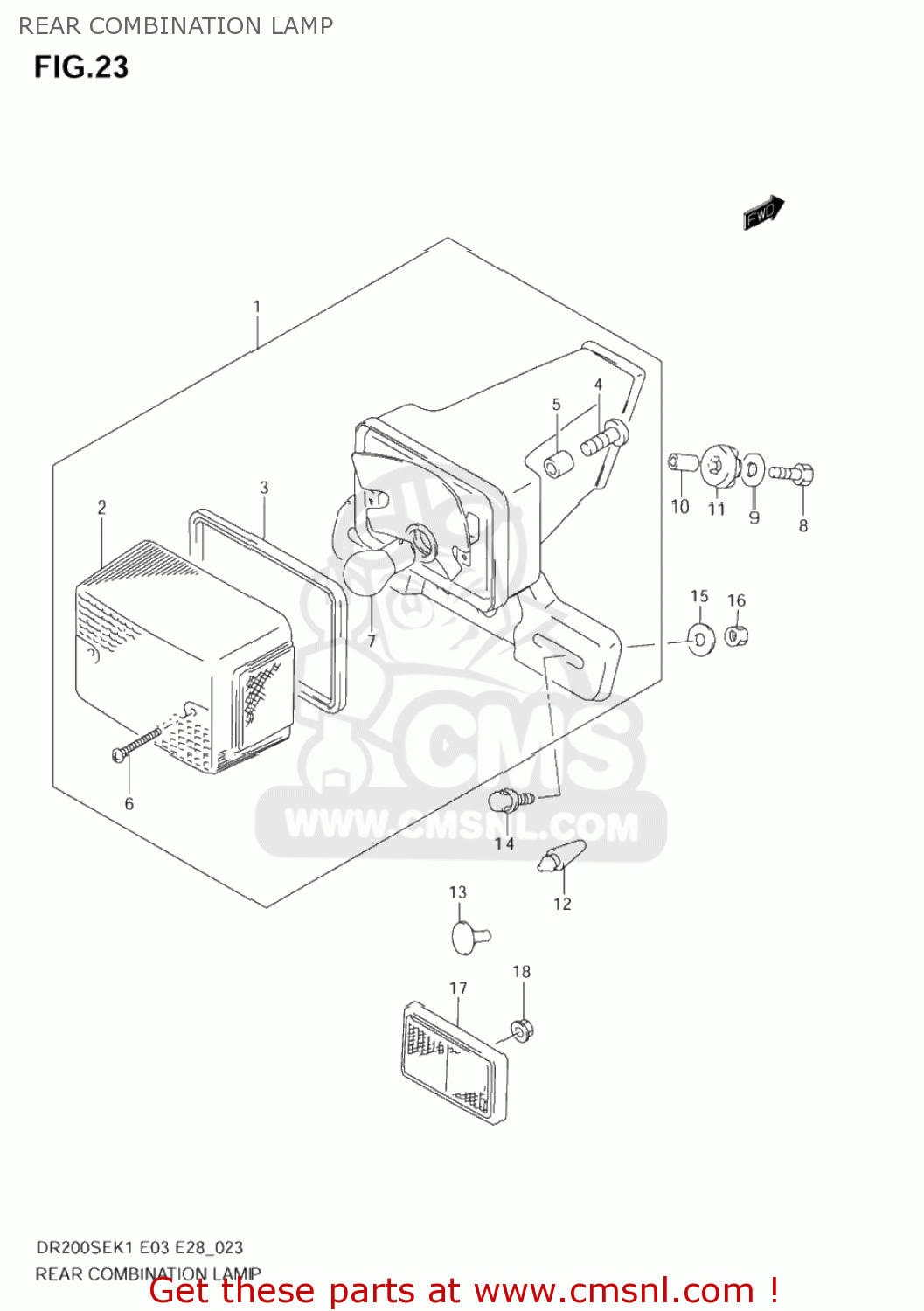

Rear combination lamp diagram DR200SE 2002 (K2) USA (E03)
REAR COMBINATION LAMP DR200SE 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571042A30
ref: 1
LAMP ASSY,RR COMBINATION
€ 210.00
2
3571242A30
ref: 2
LENS
€ 26.00
3
3571314D30
ref: 3
GASKET,LENS (NAS)
€ 5.00
4
0912506055
ref: 4
SCREW(6X25)
€ 3.00
5
3576614D30
ref: 5
SPACER
€ 2.50
6
0912504501
ref: 6
SCREW(4X45)
€ 3.00
7
0947112083
ref: 7
09471-12128
BULB(12V21/5W)
€ 6.00
8
0150006203
ref: 8
01500-0620A
BOLT
€ 2.00
9
0916006109
ref: 9
WASHER(6.5X18X1.6)
€ 2.00
10
0918006291
ref: 10
SPACER(6.5X10X13)
€ 2.00
11
0932009015
ref: 11
CUSHION
€ 2.50
12
0932106030
ref: 12
CUSHION
€ 3.00
13
0932106026
ref: 13
CUSHION
€ 3.50
14
0150006303
ref: 14
01500-0630A
BOLT
€ 2.50
15
0916006109
ref: 15
WASHER(6.5X18X1.6)
€ 2.00
16
0831000063
ref: 16
08310-0006A
NUT 6MM
€ 2.00
17
3597038E00
ref: 17
REFLECTOR ASSY,RR
€ 71.50
18
0831610053
ref: 18
08316-1005A
NUT
€ 2.50
