STARTER CLUTCH
DR200SE 2002 (K2) USA (E03)

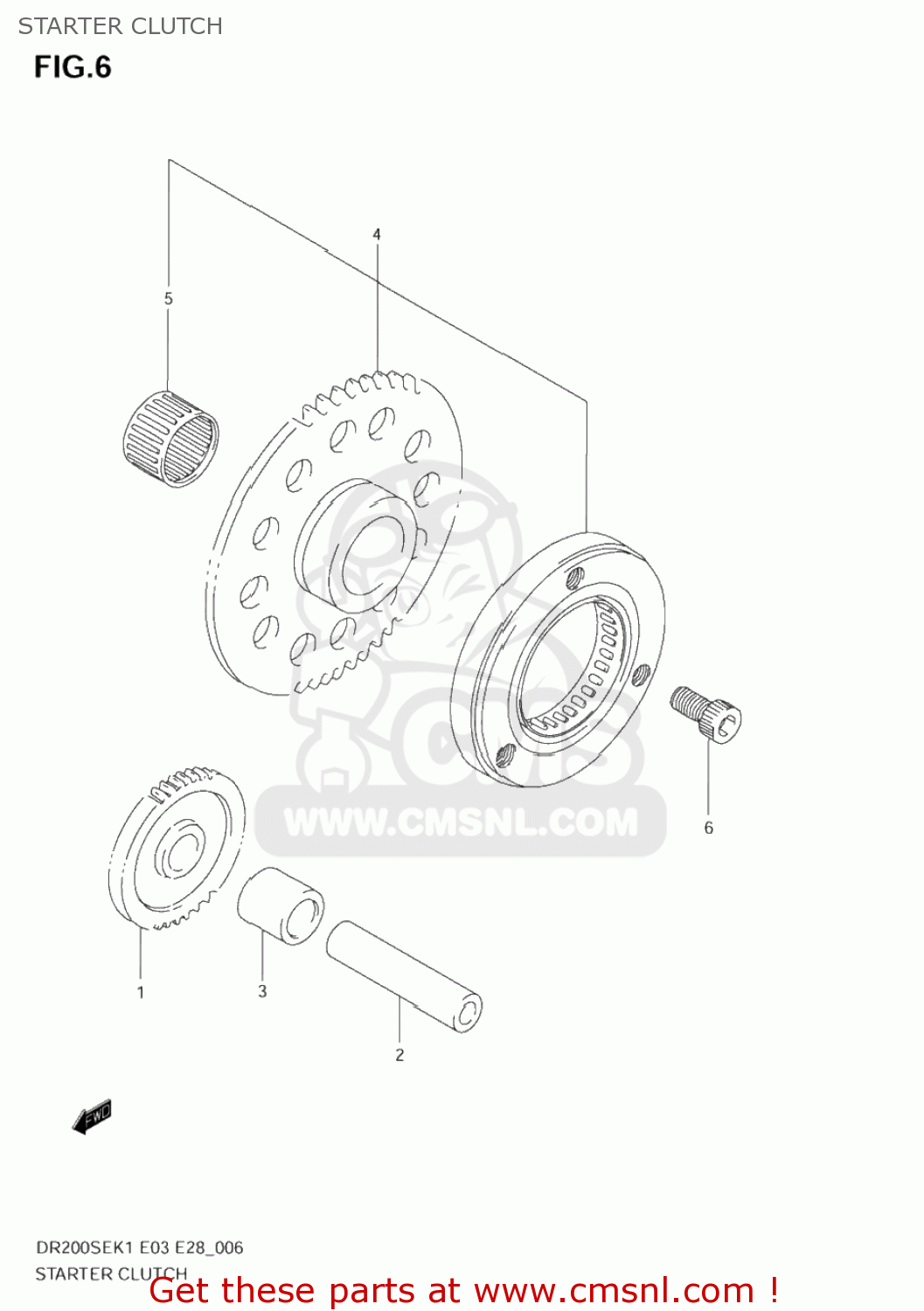

Starter clutch diagram DR200SE 2002 (K2) USA (E03)
STARTER CLUTCH DR200SE 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1261142A01
ref: 1
12611-42A03
GEAR,STARTER,IDLE
€ 40.50
2
0920613003
ref: 2
PIN(7.4X13X56)
€ 9.00
3
0918013006
ref: 3
SPACER(13X19X19)
€ 3.50
4
1260035843
ref: 4
CLUTCH SET,STARTER
€ 125.50
5
0926322031
ref: 5
BEARING(22X28X16)
€ 18.00
6
0713008163
ref: 6
07130-0816A
BOLT
€ 3.00
