FOOTREST
DR200SE 2002 (K2) USA (E03)

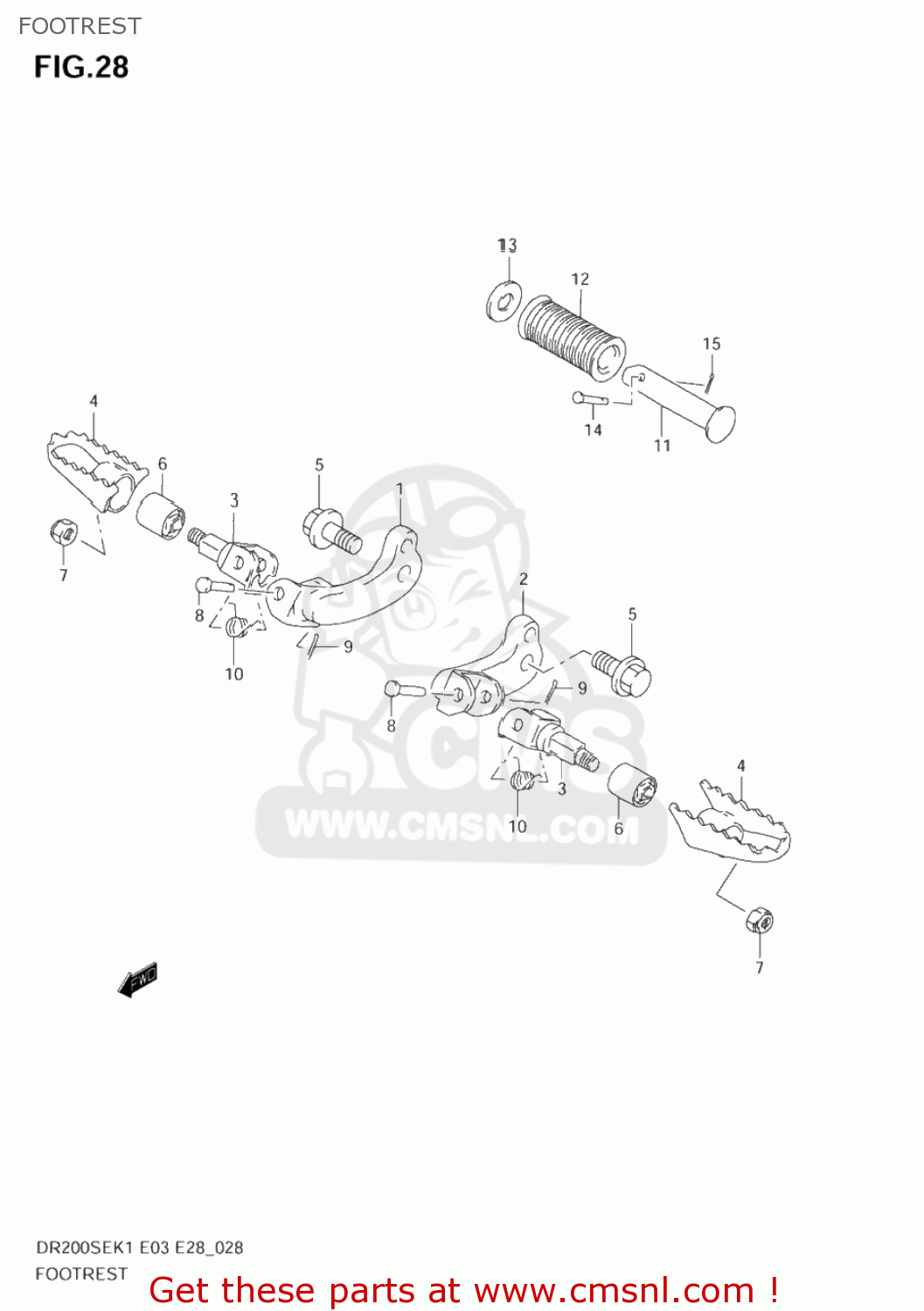

Footrest diagram DR200SE 2002 (K2) USA (E03)
FOOTREST DR200SE 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351044A03019
ref: 1
BAR,FR FOOTREST,R
€ 26.00
2
4352044A03019
ref: 2
BAR,FR FOOTREST,L
€ 24.00
3
4353044A02
ref: 3
BRACKET,FR FOOTREST
€ 24.50
4
4355044A01019
ref: 4
FOOTREST,FR
€ 17.50
5
0910312047
ref: 5
BOLT(12X25)
€ 3.50
6
0931910053
ref: 6
BUSH
€ 17.50
7
0831931103
ref: 7
08319-3110A
NUT
€ 3.00
8
0920008002
ref: 8
PIN
€ 2.00
9
0411120158
ref: 9
04111-2015A
PIN
€ 1.50
10
0944814037
ref: 10
SPRING
€ 2.50
11
4361003001
ref: 11
BAR,FOOTREST RUBBER
€ 5.50
12
4361233200
ref: 12
RUBBER,PILLION FOOTREST
€ 4.50
13
0916019024
ref: 13
WASHER(19.5X32X2)
€ 2.00
14
0920006033
ref: 14
PIN
€ 2.00
15
0411120158
ref: 15
04111-2015A
PIN
€ 1.50
