MAGNETO
DR200SE 2002 (K2) USA (E03)

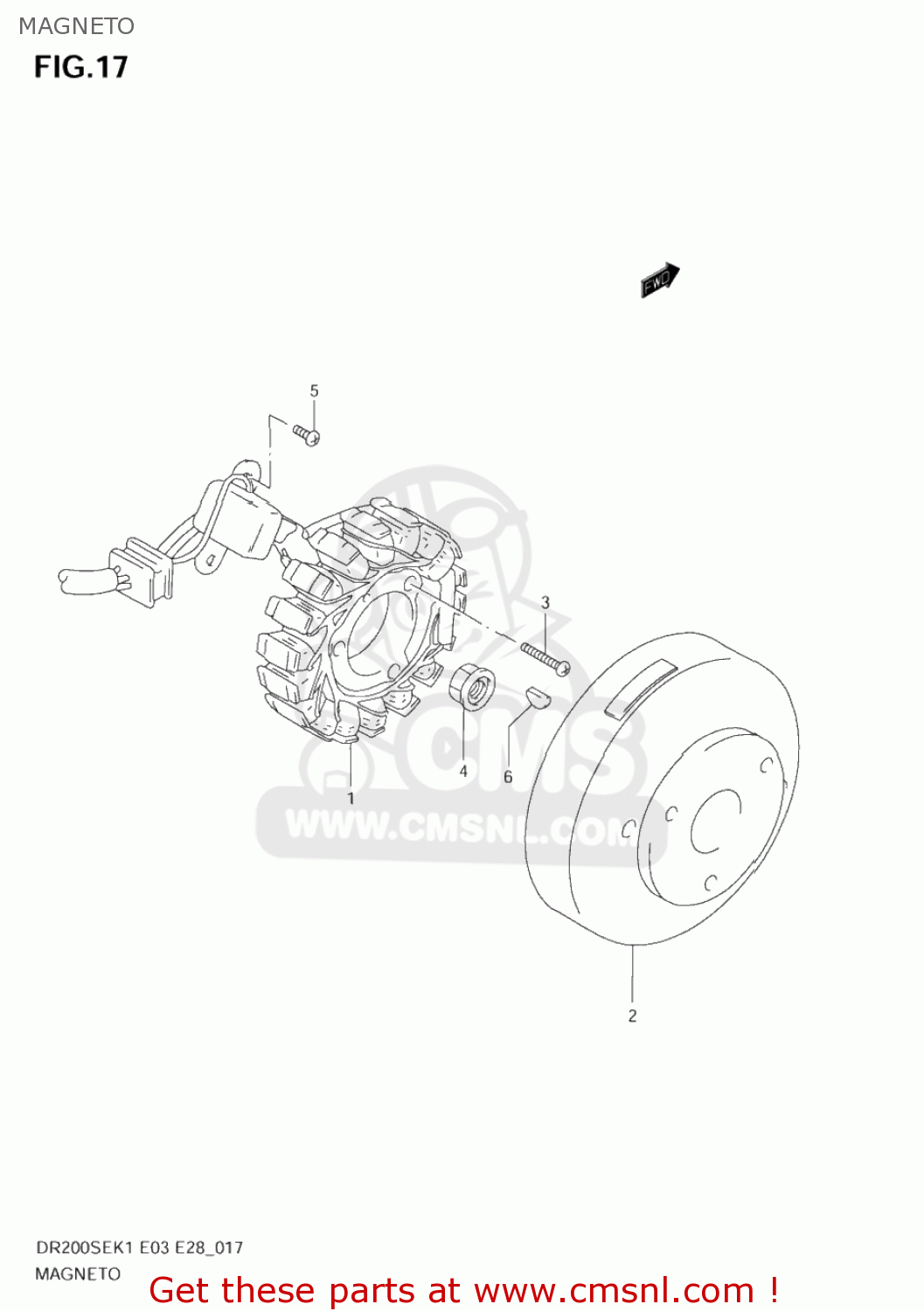

Magneto diagram DR200SE 2002 (K2) USA (E03)
MAGNETO DR200SE 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210142A30
ref: 1
32101-42A40
STATOR ASSEMBLY
€ 458.50
2
3210242A30
ref: 2
ROTOR ASSY
€ 0.00
3
0211205253
ref: 3
02112-0525A
SCREW
€ 1.50
4-1
0831610103
ref: 4-1
08316-1010B
NUT
€ 2.00
4-2
0915910110
ref: 4-2
NUT
€ 2.00
4-3
3179226F10
ref: 4-3
NUT,MAGNETO ROTOR
€ 2.50
5
0211205123
ref: 5
02112-0512A
SCREW
€ 1.50
6
0942003008
ref: 6
KEY
€ 2.50
