CYLINDER
DR200SE 2002 (K2) USA (E03)

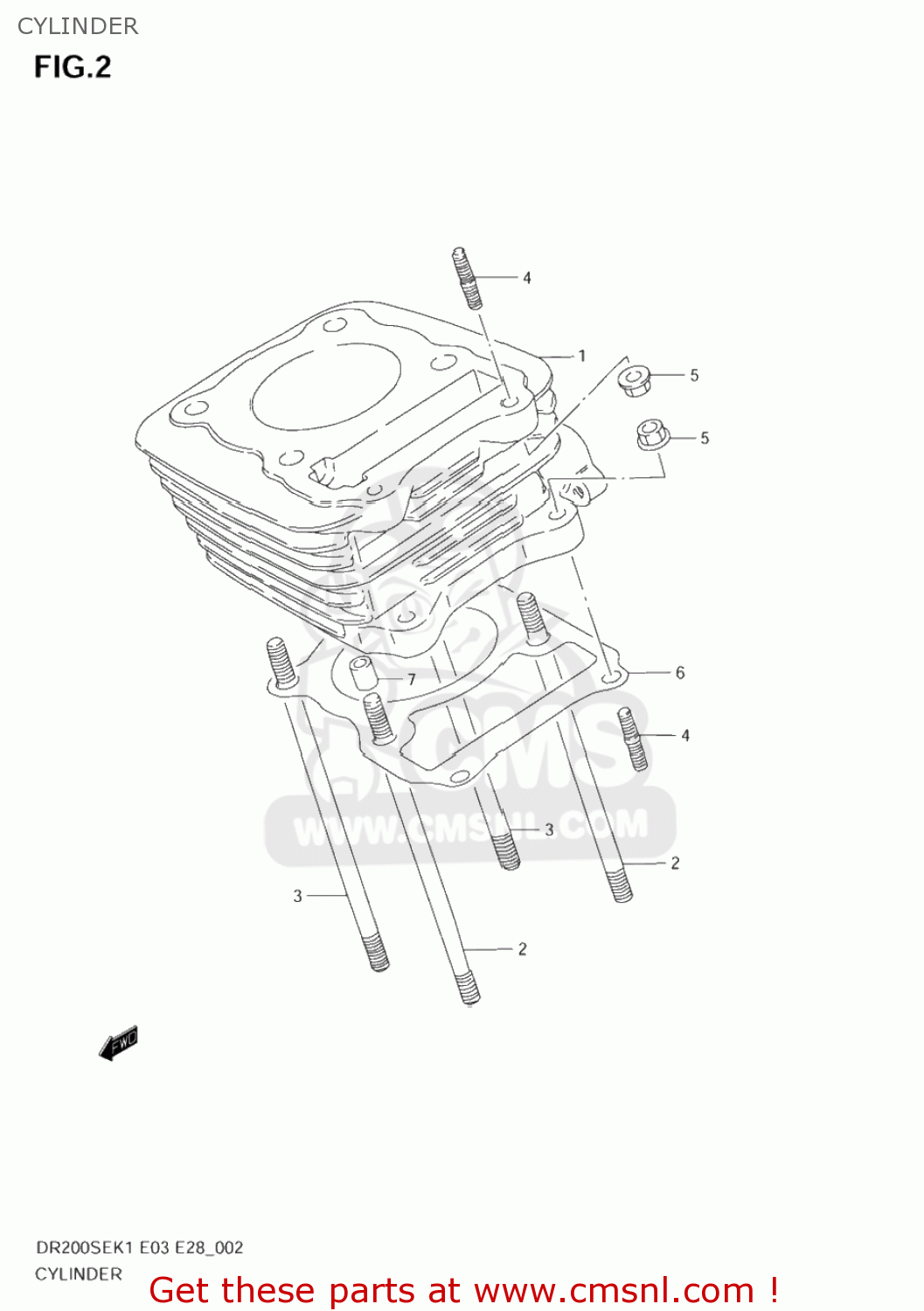

Cylinder diagram DR200SE 2002 (K2) USA (E03)
CYLINDER DR200SE 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121113G500F0
ref: 1-1
CYLINDER
€ 329.00
1-2
1121142A500F0
ref: 1-2
CYLINDER
€ 0.00
2
0910808195
ref: 2
BOLT,STUD
€ 4.00
3
0910808184
ref: 3
BOLT,STUD(8X167)
€ 4.00
4
0142106253
ref: 4
01421-0625A
STUD BOLT
€ 2.00
5
0831610063
ref: 5
08316-1006B
NUT
€ 2.50
6-1
1124142A01
ref: 6-1
11241-42A10
GASKET,CYLINDER (NAS)
€ 4.00
6-2
1124142A10
ref: 6-2
GASKET,CYLINDER (NAS)
€ 4.00
7
0421111149
ref: 7
PIN
€ 2.00
