DR200SE 2003 (K3) USA (E03)

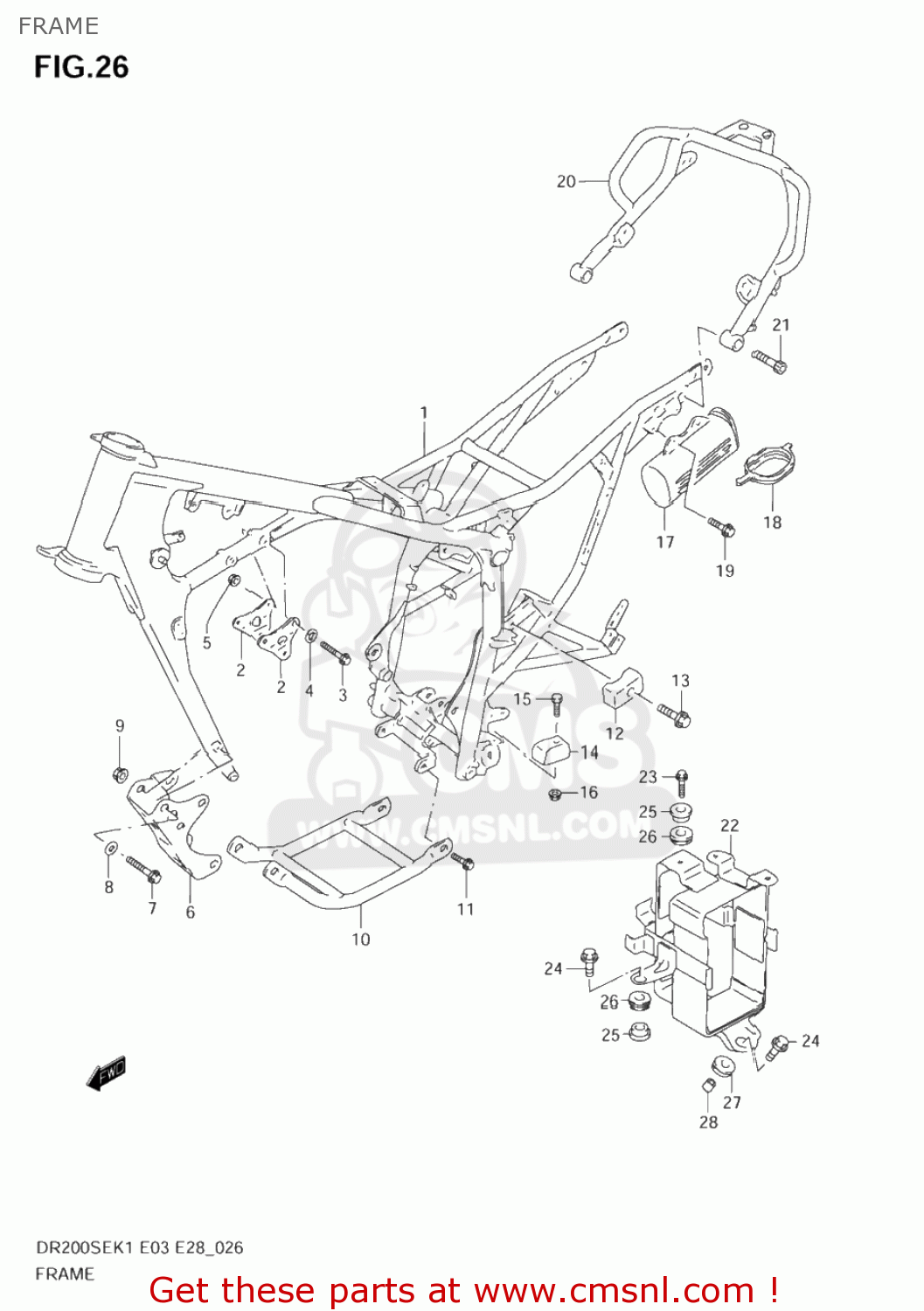

Frame diagram DR200SE 2003 (K3) USA (E03)
FRAME DR200SE 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110044AB024K
ref: 1-1
41100-44AB1-24K
FRAME(CHARCOAL)
€ 0.00
1-2
4110044AB017U
ref: 1-2
41100-44AB1-17U
FRAME(GRAY)
€ 860.00
1-3
4110044AB0YU8
ref: 1-3
41100-44AB1-YU8
FRAME (GRAY)
€ 0.00
1-4
4110044AB1YU8
ref: 1-4
FRAME(GRAY)
€ 0.00
1-5
4110044AD024K
ref: 1-5
41100-44AD1-24K
FRAME COMP
€ 731.00
1-6
4110044AD017U
ref: 1-6
41100-44AD1-17U
FRAME
€ 731.00
1-7
4110044AD0YU8
ref: 1-7
41100-44AD1-YU8
FRAME(SILVER)
€ 0.00
1-8
4110044AD1YU8
ref: 1-8
FRAME (GRAY)
€ 731.00
2
4199142A00291
ref: 2
PLATE,ENGINE MOUNT UPR
€ 15.00
3
0910308332
ref: 3
BOLT(8X53)
€ 3.50
4
0832101083
ref: 4
08321-0108A
LOCK WASHER
€ 2.50
5
0831931083
ref: 5
08319-3108A
NUT
€ 2.50
6-1
4199244AA124K
ref: 6-1
PLATE,ENGINE MOUNT LWR
€ 0.00
6-2
4199244AA117U
ref: 6-2
PLATE,ENG MTG LWR
€ 0.00
6-3
4199244AA1YU8
ref: 6-3
PLATE,ENG MTG LWR
€ 0.00
7
0910308328
ref: 7
BOLT(8X65)
€ 4.00
8
0832101083
ref: 8
08321-0108A
LOCK WASHER
€ 2.50
9
0831931083
ref: 9
08319-3108A
NUT
€ 2.50
10-1
4251044AA024K
ref: 10-1
PROTECTOR ENGINE(CHARCOAL)
€ 113.00
10-2
4251044AA017U
ref: 10-2
PROTECTOR,ENGINE(GRAY)
€ 0.00
10-3
4251044AA0YU8
ref: 10-3
PROTECTOR,ENGINE(SILVER)
€ 0.00
11
0155110163
ref: 11
01551-1016A
BOLT
€ 2.00
12
4391144A00
ref: 12
GUIDE,CH CONTROL UPR
€ 12.00
13
0158006353
ref: 13
01580-0635B
BOLT
€ 3.50
14
4391242AA0
ref: 14
GUIDE,CHAIN CONTROL LWR
€ 12.50
15
0912806006
ref: 15
09128-06057
BOLT(6X20)
€ 2.00
16
0831931063
ref: 16
08319-3106A
NUT
€ 2.50
17
4155138200
ref: 17
41551-38201
HOLDER,TOOL
€ 17.00
18
4155237210
ref: 18
CAP,HOLDER
€ 5.00
19
0911606165
ref: 19
BOLT(6X16)
€ 2.50
20-1
4398044AB224K
ref: 20-1
GRIP,RR
€ 189.00
20-2
4398044AB217U
ref: 20-2
GRIP,RR
€ 0.00
20-3
4398044AB2YU8
ref: 20-3
GRIP,RR
€ 0.00
21
0910608105
ref: 21
BOLT(8X30)
€ 3.00
22
4154044AA0
ref: 22
HOLDER,BATTERY
€ 0.00
23
0155006203
ref: 23
01550-0620A
BOLT
€ 2.50
24
0911606131
ref: 24
BOLT(6X25)
€ 2.00
25
0916906065
ref: 25
WASHER
€ 3.50
26
0932008021
ref: 26
CUSHION
€ 4.00
27
0932010501
ref: 27
CUSHION
€ 5.50
28
0918006285
ref: 28
SPACER(6.5X10X9)
€ 2.50
