HANDLEBAR
DR200SE 2003 (K3) USA (E03)

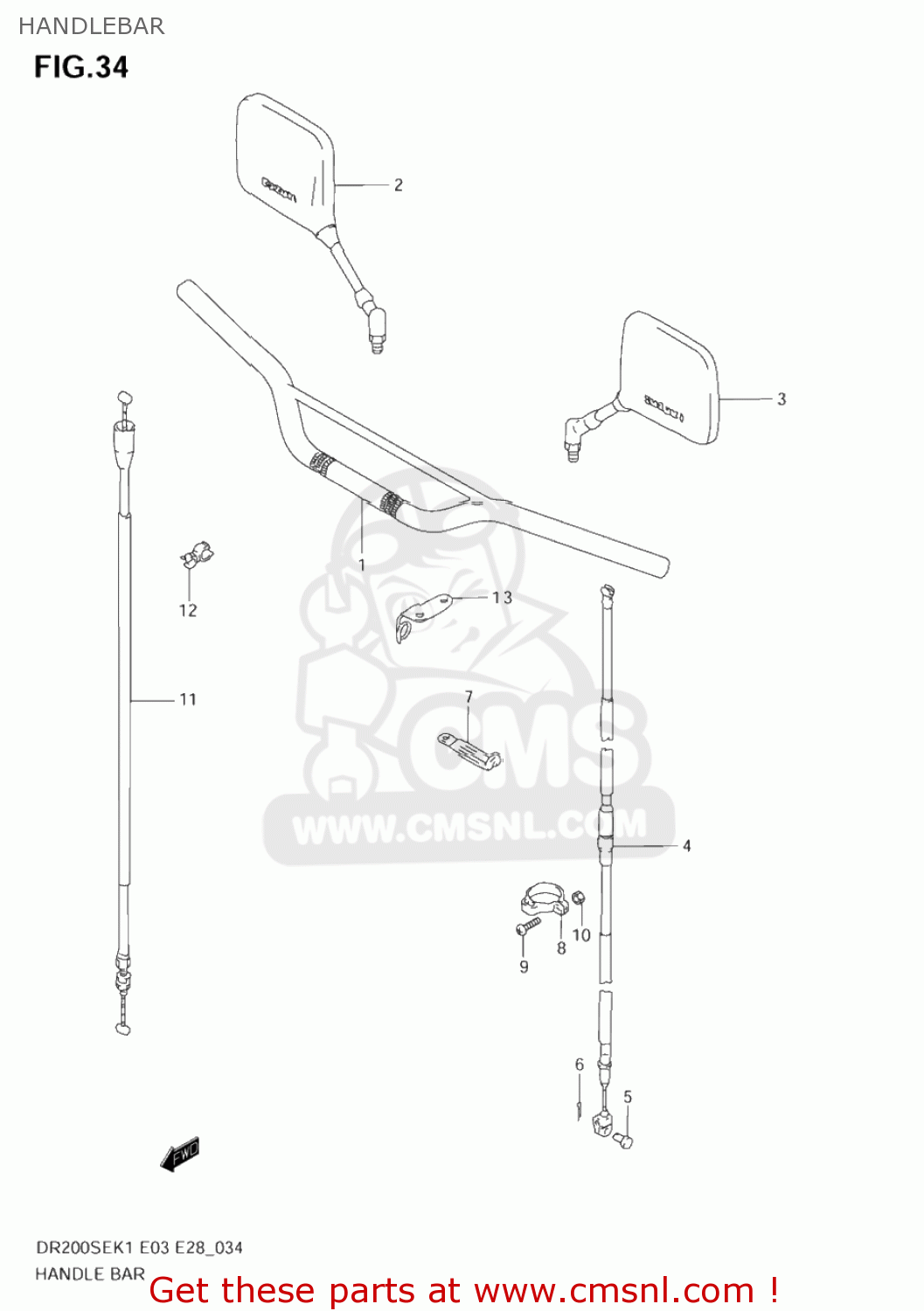

Handlebar diagram DR200SE 2003 (K3) USA (E03)
HANDLEBAR DR200SE 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611044AA0291
ref: 1
HANDLEBAR(BLACK)
€ 70.00
2
5650010041
ref: 2
56500-10042
MIRROR ASSEMBLY,REAR VIEW
€ 57.50
3
5660010041
ref: 3
56600-10042
MIRROR ASSEMBLY,REAR VIEW
€ 44.00
4
5820044AB1
ref: 4
CABLE ASSY,CLUTCH
€ 35.50
5
0920006004
ref: 5
PIN(L:13)
€ 1.50
6
0411120158
ref: 6
04111-2015A
PIN
€ 1.50
7
0940725401
ref: 7
CLAMP(L:235)
€ 4.00
8
5828505351
ref: 8
CLAMP,CLUTCH CABLE
€ 4.00
9
0211205163
ref: 9
02112-0516A
SCREW
€ 2.00
10
0831000053
ref: 10
08310-0005A
NUT
€ 2.50
11
5830044AA0
ref: 11
CABLE ASSY,THROTTLE
€ 32.50
12
0940800078
ref: 12
CLAMP
€ 3.00
13
5862015D10
ref: 13
GUIDE,CABLE
€ 6.50
