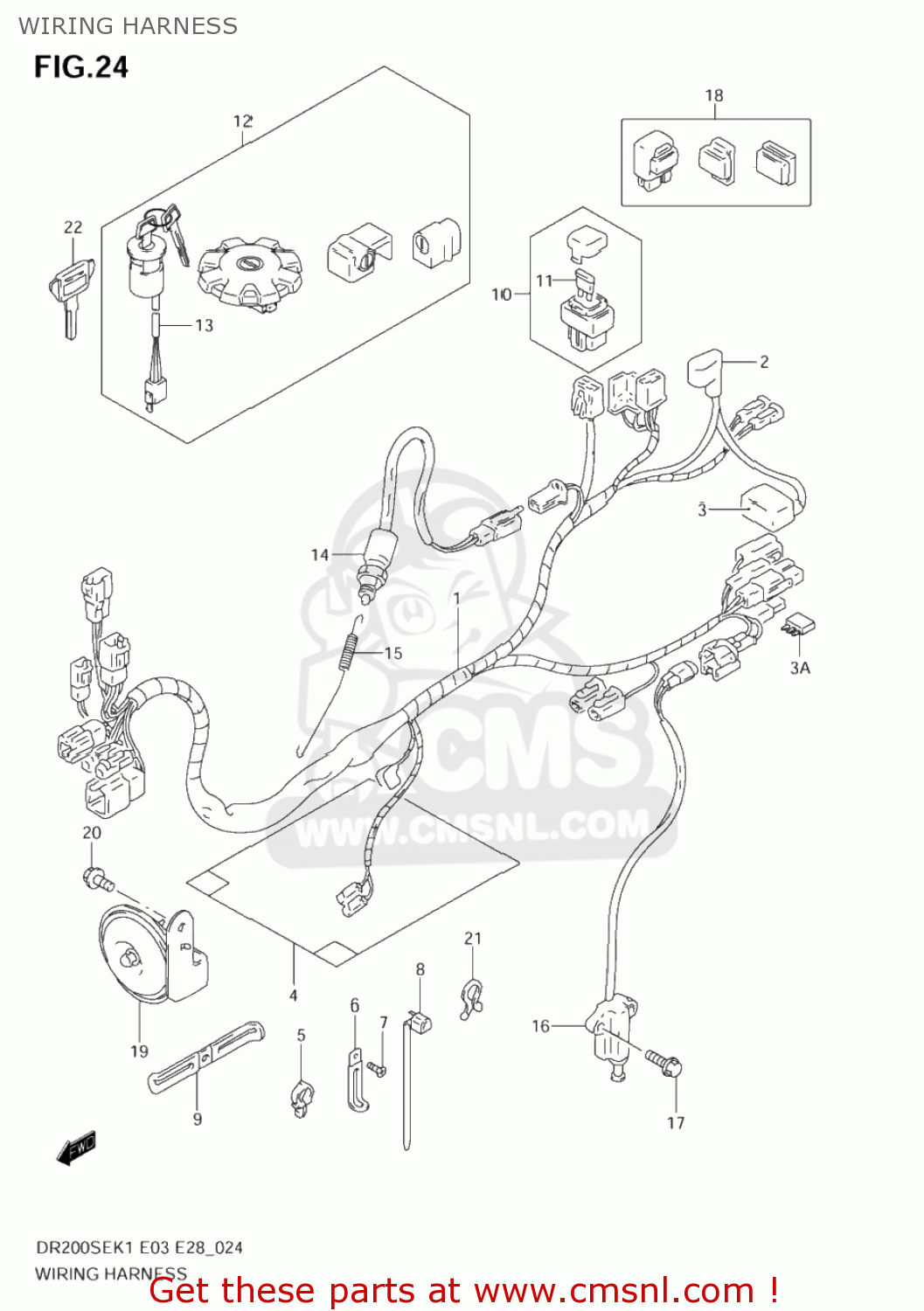

WIRING HARNESS

ref

part #

description

quantity

1

3661042A50
ref: 1

HARNESS,WIRING

€ 0.00

2

3186110D00
ref: 2

CAP,STARTER RELAY

€ 4.00

3

3362410D00
ref: 3

CAP,BATTERY PLUS

€ 4.00

3A

3661138A00
ref: 3A

DIODE(STANLEY DE8804)

€ 13.00

4

3661815D20
ref: 4

COVER,WIRING HARNESS

€ 12.00

5

0940312404
ref: 5

CLAMP

€ 1.50

6-1

0940406429
ref: 6-1

CLAMP(L:45)

€ 2.50

6-2

0940406434
ref: 6-2

CLAMP(L:80 T:1.0)

€ 3.00

7

0354104103
ref: 7
03541-0410A

SCREW

€ 1.50

8-1

0940711401
ref: 8-1

CLAMP(L:95)

€ 2.50

8-2

0940714403
ref: 8-2

CLAMP(L:125)

€ 2.50

8-3

0940718402
ref: 8-3

CLAMP(L:165)

€ 2.50

8-4

0940725401
ref: 8-4

CLAMP(L:235)

€ 4.00

9

3665105301
ref: 9

CLAMP,STARTER MOTOR LEAD

€ 5.00

10

3674024B01
ref: 10

BOX ASSY,FUSE

€ 18.00

11

0948120101
ref: 11

FUSE(20A)

€ 2.00

12-1

3700044820
ref: 12-1
37000-44821

LOCK SET

€ 171.50

12-2

3700044830
ref: 12-2
37000-44831

LOCK SET

€ 190.00

13

3711044A01
ref: 13
37110-44A20

SWITCH ASSEMBLY,IGNITION

€ 70.00

14-1

3774031D00
ref: 14-1

SWITCH ASSY,STOP LAMP

€ 20.50

14-2

3774045D00
ref: 14-2
37740-31D00

SWITCH ASSY,STOP LAMP

€ 20.50

15

0944306064
ref: 15

SPRING

€ 3.50

16

3784044X50
ref: 16

SWITCH ASSY,SIDE STAND

€ 75.50

17

0155006203
ref: 17
01550-0620A

BOLT

€ 2.50

18

3874024X50
ref: 18

RELAY ASSY

€ 37.50

19

3850044B00
ref: 19

HORN ASSY

€ 48.00

20

0155006123
ref: 20
01550-0612A

BOLT

€ 2.50

21

0940800012
ref: 21

CLIP(ID:11.5)

€ 2.00

22-1

3714603A00
ref: 22-1

KEY,BLANK(TYPE:C)

€ 6.00

22-2

3714603A10
ref: 22-2

KEY,BLANK(TYPE:D)

€ 6.00

22-3

3714603A20
ref: 22-3

KEY,BLANK(TYPE:E)

€ 6.00

22-4

3714603A30
ref: 22-4

KEY,BLANK(TYPE:F)

€ 6.00
