SEAT (MODEL K2/K3/K4)

DR200SE 2003 (K3) USA (E03)

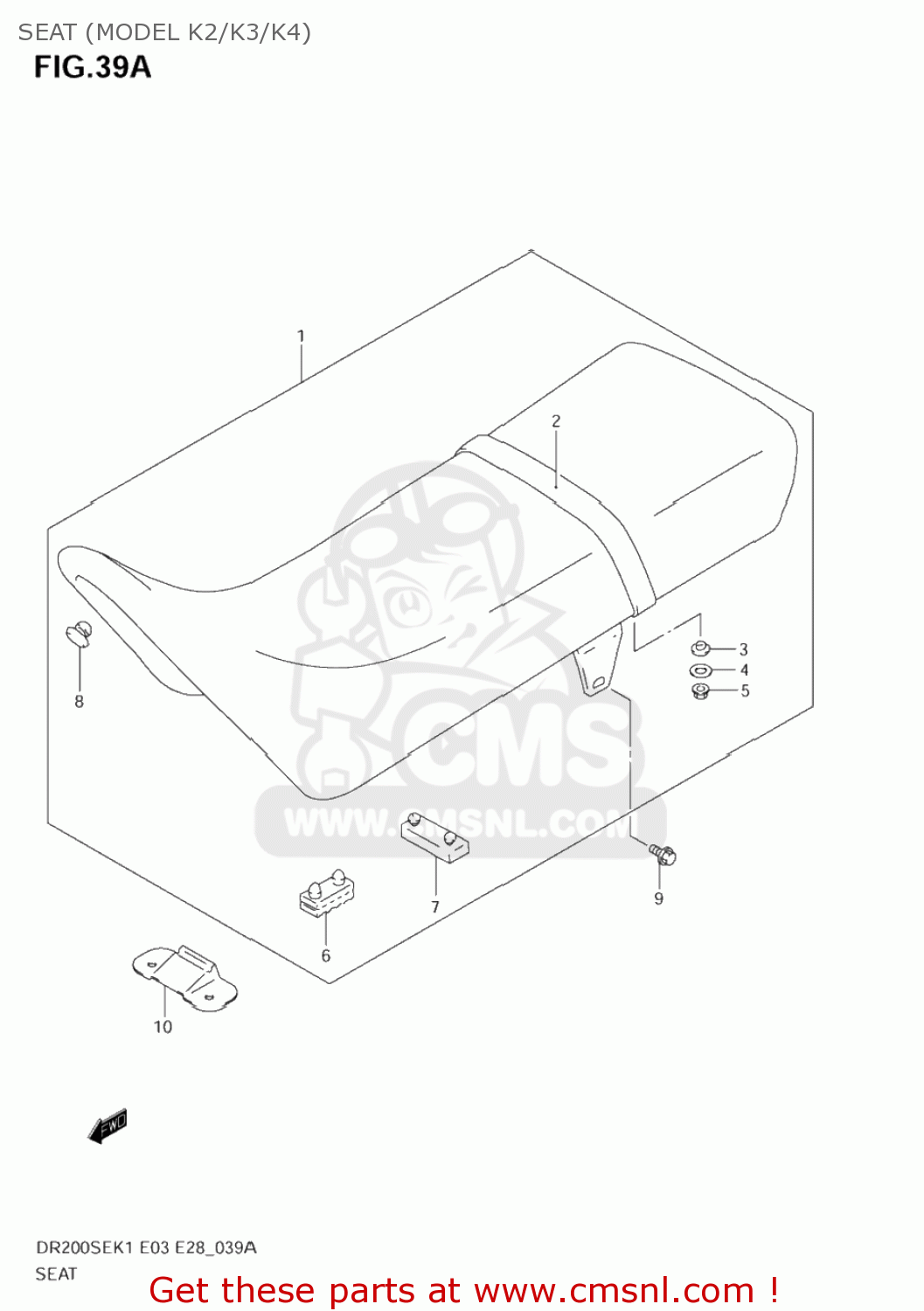

Seat (model k2/k3/k4) diagram DR200SE 2003 (K3) USA (E03)

SEAT (MODEL K2/K3/K4) DR200SE 2003 (K3) USA (E03)

SEAT (MODEL K2/K3/K4) DR200SE 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4510042AK06BY
ref: 1

SEAT ASSY(BLACK)

€ 345.50

2

4518042AA0P21
ref: 2

BAND,SEAT(BLACK)

€ 0.00

3

0916906071
ref: 3

WASHER

€ 2.50

4

0821206201
ref: 4

WASHER

€ 1.50

5

0831620063
ref: 5
08316-2006A

NUT

€ 2.00

6

4514931300
ref: 6

CUSHION,SEAT(40X20X15)

€ 2.00

7

4514943500
ref: 7

CUSHION,SEAT

€ 3.00

8

0932910001
ref: 8

CUSHION

€ 2.50

9

0155008123
ref: 9
01550-0812A

BOLT

€ 3.50

10

4511942A00
ref: 10

PLATE,SEAT FR HOOK

€ 5.00
