SEAT (MODEL K1)

DR200SE 2003 (K3) USA (E03)

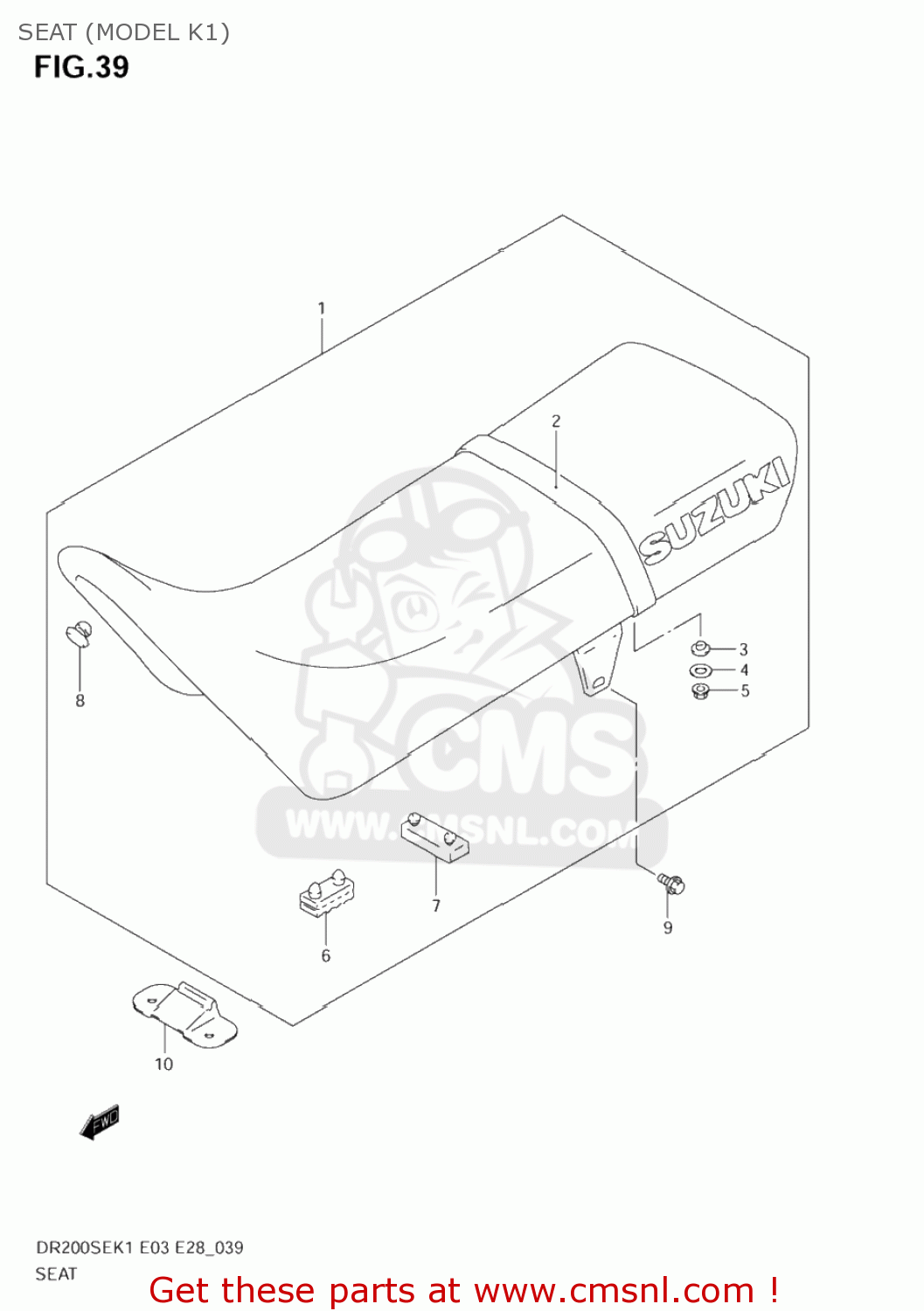

Seat (model k1) diagram DR200SE 2003 (K3) USA (E03)

SEAT (MODEL K1) DR200SE 2003 (K3) USA (E03)

SEAT (MODEL K1) DR200SE 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4510042AC0N9K
ref: 1

SEAT SET

€ 267.00

2

4518042AA0P21
ref: 2

BAND,SEAT(BLACK)

€ 0.00

3

0916906071
ref: 3

WASHER

€ 2.50

4

0821206201
ref: 4

WASHER

€ 1.50

5

0831620063
ref: 5
08316-2006A

NUT

€ 2.00

6

4514931300
ref: 6

CUSHION,SEAT(40X20X15)

€ 2.00

7

4514943500
ref: 7

CUSHION,SEAT

€ 3.00

8

0932910001
ref: 8

CUSHION

€ 2.50

9

0155008123
ref: 9
01550-0812A

BOLT

€ 3.50

10

4511942A00
ref: 10

PLATE,SEAT FR HOOK

€ 5.00
