CRANKCASE COVER (MODEL P/R/S)
DR250SE 1991 (M) USA (E03)

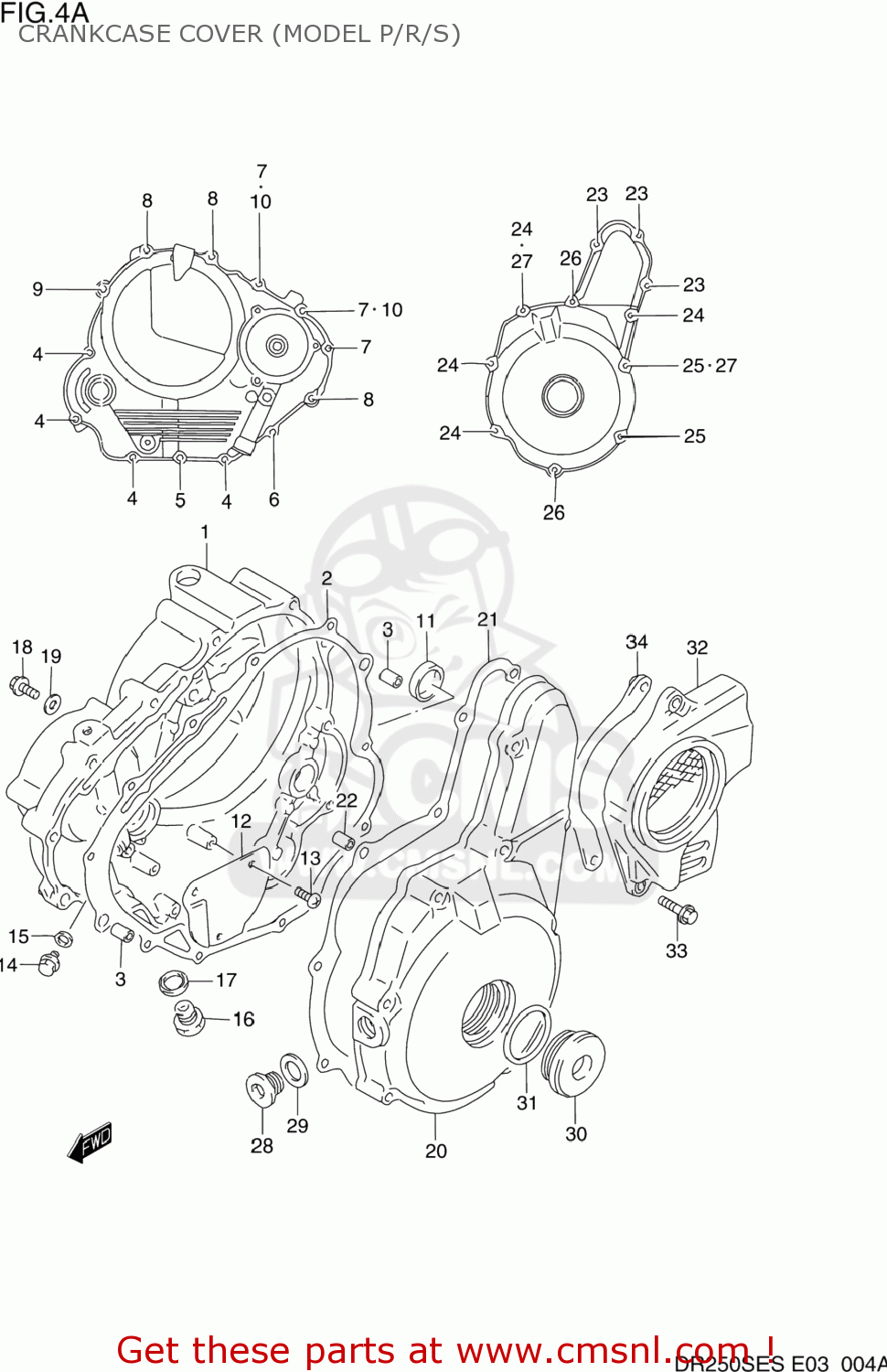

Crankcase cover (model p/r/s) diagram DR250SE 1991 (M) USA (E03)
CRANKCASE COVER (MODEL P/R/S) DR250SE 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134114D06
ref: 1
11340-47810
COVER,CLUTCH
€ 276.50
2-1
1148214D02
ref: 2-1
11482-14D03
GASKET,CLUTCH COVER (NAS)
€ 26.50
2-2
1148214D03
ref: 2-2
GASKET,CLUTCH COVER (NAS)
€ 26.50
3
0421109149
ref: 3
PIN
€ 2.00
4
0154706253
ref: 4
01547-0625B
SCREW
€ 3.00
5
0154706303
ref: 5
01547-0630B
BOLT,G/S SWITC
€ 3.50
6
0154706353
ref: 6
01547-0635B
BOLT
€ 3.50
7
0154706403
ref: 7
01547-0640B
BOLT
€ 3.50
8
0154706603
ref: 8
01547-0660B
BOLT
€ 4.00
9
0154706653
ref: 9
01547-0665B
BOLT
€ 2.50
10-1
0916806023
ref: 10-1
GASKET(5.8X13X1.2) (NAS)
€ 2.00
10-2
0916806024
ref: 10-2
GASKET(5.8X11X1.2) (NAS)
€ 2.50
11
1134215D00
ref: 11
PLUG,CLUTCH COVER KICK
€ 7.50
12
1134914D00
ref: 12
SEPARATOR,OIL RETURN
€ 4.50
13-1
0912505042
ref: 13-1
SCREW(5X10)
€ 2.50
13-2
0214205103
ref: 13-2
02142-0510B
SCREW
€ 2.50
14
0910306078
ref: 14
BOLT(6X8)
€ 2.50
15
0916806004
ref: 15
GASKET(6.2X11X1).2 (NAS)
€ 2.00
16
0924810007
ref: 16
PLUG(10X6.8)
€ 5.00
17
0916810002
ref: 17
GASKET(10X14X3.6) (NAS)
€ 3.00
18
0912806043
ref: 18
09128-06058
SCREW (6X10)
€ 2.50
19-1
0916806023
ref: 19-1
GASKET(5.8X13X1.2) (NAS)
€ 2.00
19-2
0916806024
ref: 19-2
GASKET(5.8X11X1.2) (NAS)
€ 2.50
20
1135115D02
ref: 20
COVER,MAGNETO
€ 309.50
21-1
1148315D01
ref: 21-1
11483-15D02
GASKET,MAGNETO COVER (NAS)
€ 19.50
21-2
1148315D02
ref: 21-2
GASKET,MAGNETO COVER (NAS)
€ 19.50
22
0421109149
ref: 22
PIN
€ 2.00
23
0154706253
ref: 23
01547-0625B
SCREW
€ 3.00
24
0154706403
ref: 24
01547-0640B
BOLT
€ 3.50
25
0154706453
ref: 25
01547-0645B
BOLT
€ 3.50
26
0154706503
ref: 26
01547-0650B
BOLT
€ 3.50
27-1
0916806023
ref: 27-1
GASKET(5.8X13X1.2) (NAS)
€ 2.00
27-2
0916806024
ref: 27-2
GASKET(5.8X11X1.2) (NAS)
€ 2.50
28
0924814005
ref: 28
PLUG,14X12
€ 2.00
29-1
0916814004
ref: 29-1
GASKET(14X19.2X2) (NAS)
€ 2.50
29-2
0916814002
ref: 29-2
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
30
092593601620H
ref: 30
PLUG(SILVER)
€ 11.50
31
0928033004
ref: 31
O RING(D:3.1,ID:32.7)
€ 2.50
32
1136014D01
ref: 32
COVER,ENGINE SPROCKET
€ 91.50
33
0154706253
ref: 33
01547-0625B
SCREW
€ 3.00
34
2764014D01
ref: 34
PLATE,FR CHAIN GUIDE
€ 59.50
