WIRING HARNESS (MODEL P/R/S)
DR250SE 1991 (M) USA (E03)

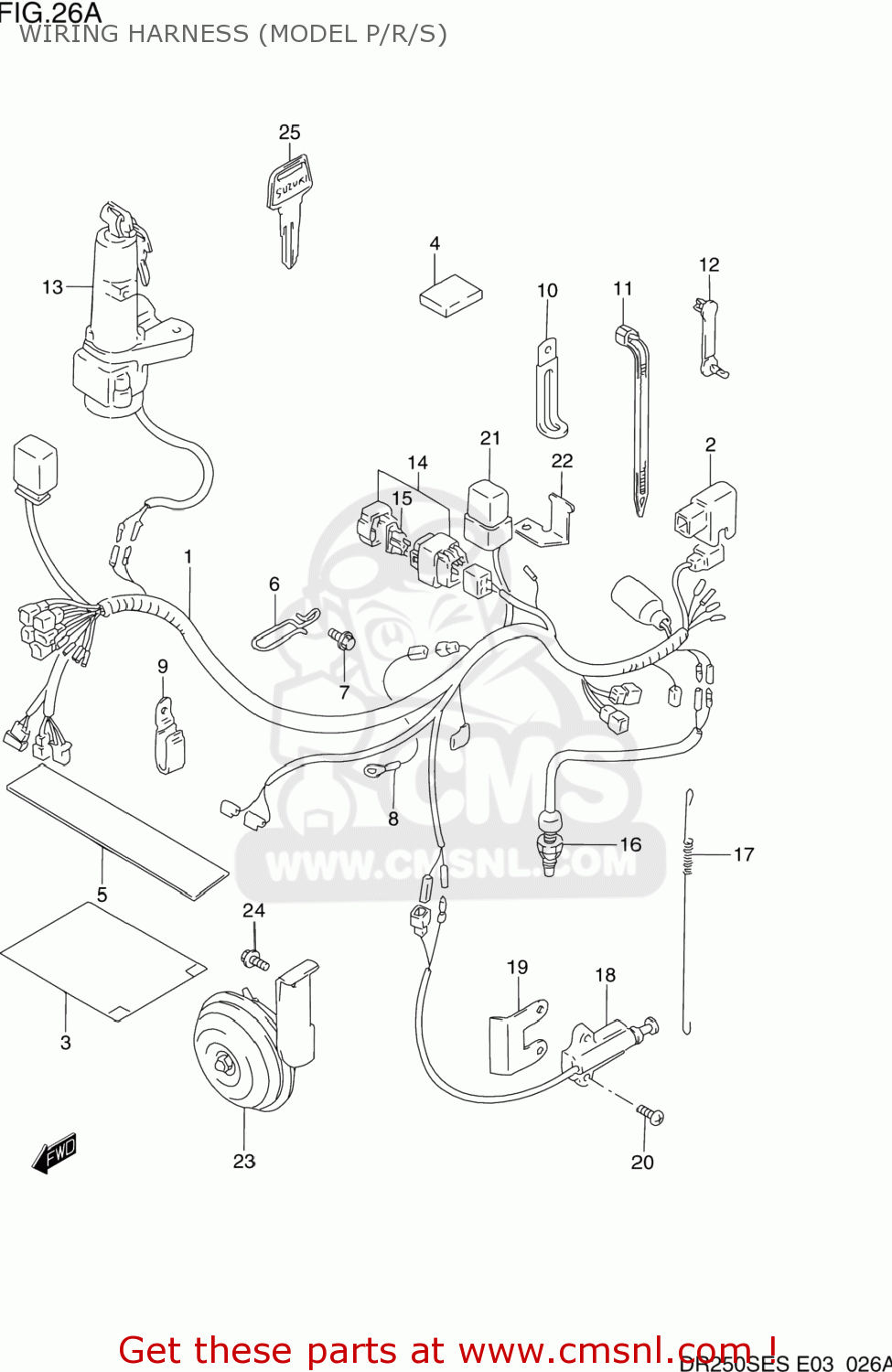

Wiring harness (model p/r/s) diagram DR250SE 1991 (M) USA (E03)
WIRING HARNESS (MODEL P/R/S) DR250SE 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661015D50
ref: 1
HARNESS,WIRING
€ 169.50
2
3362415D00
ref: 2
CAP,BATTERY PLUS
€ 6.00
3-1
3661815D01
ref: 3-1
36618-15D20
COVER,WIRING HARNESS
€ 12.00
3-2
3661815D02
ref: 3-2
36618-15D20
COVER,WIRING HARNESS
€ 12.00
3-3
3661815D20
ref: 3-3
COVER,WIRING HARNESS
€ 12.00
4
6314901C00
ref: 4
63191-25C00
CUSHION
€ 2.50
5
3692014D00
ref: 5
PROTECTOR,WIRING HARNESS
€ 5.50
6
3661915D11
ref: 6
GUIDE,WIRING HARNESS
€ 142.00
7-1
0151706105
ref: 7-1
01550-0610A
BOLT
€ 2.50
7-2
0155006103
ref: 7-2
01550-0610A
BOLT
€ 2.50
8-1
3685114D00
ref: 8-1
36851-05D00
WIRE
€ 3.00
8-2
3685105D00
ref: 8-2
WIRE,REGULATOR EARTH LEAD
€ 3.00
9-1
0940310307
ref: 9-1
CLAMP
€ 3.00
9-2
0940317303
ref: 9-2
CLAMP
€ 4.00
10-1
0940406403
ref: 10-1
09404-06432
CLAMP
€ 2.50
10-2
0940406405
ref: 10-2
09404-06433
CLAMP
€ 3.00
10-3
0940406429
ref: 10-3
CLAMP(L:45)
€ 2.50
10-4
0940406424
ref: 10-4
09404-06432
CLAMP
€ 2.00
10-5
0940406426
ref: 10-5
09404-06433
CLAMP
€ 3.00
10-6
0940406431
ref: 10-6
09404-06432
CLAMP(L:65)
€ 2.50
10-7
0940406433
ref: 10-7
CLAMP(L:80)
€ 3.00
10-8
0940408419
ref: 10-8
CLAMP(L:80)
€ 2.00
11-1
0940702401
ref: 11-1
CLAMP
€ 2.50
11-2
0940710404
ref: 11-2
CLAMP(L:100)
€ 4.00
11-3
0940714403
ref: 11-3
CLAMP(L:125)
€ 2.50
11-4
0940714409
ref: 11-4
CLAMP
€ 2.50
11-5
0940718403
ref: 11-5
09407-18402
CLAMP L:165
€ 2.50
11-6
0940725401
ref: 11-6
CLAMP(L:235)
€ 4.00
12
0940703401
ref: 12
CLAMP(L:33)
€ 3.50
13
3711003D00
ref: 13
37110-03D01
SWITCH ASSEMBLY,IGNITION
€ 58.50
14-1
3674009301
ref: 14-1
36740-24B01
BOX ASSEMBLY,FUSE
€ 18.00
14-2
3674024B01
ref: 14-2
BOX ASSY,FUSE
€ 18.00
15
0948120101
ref: 15
FUSE(20A)
€ 2.00
16
3774015D00
ref: 16
SWITCH ASSY,STOP LAMP
€ 21.50
17
0944306080
ref: 17
SPRING
€ 4.00
18-1
3784048B21
ref: 18-1
37840-12X50
SWITCH ASSEMBLY,SIDE STAND
€ 76.00
18-2
3784012X50
ref: 18-2
SWITCH ASSY,SIDE STAND WARNING
€ 76.00
19
3784114D00
ref: 19
PROTECTOR,SIDE STAND SWITCH
€ 4.50
20-1
0214206205
ref: 20-1
02142-0620A
SCREW, CENTER
€ 2.00
20-2
0214206203
ref: 20-2
02142-0620A
SCREW
€ 2.00
21
3874024X50
ref: 21
RELAY ASSY
€ 37.50
22
3674414D01
ref: 22
BRACKET,FUSE
€ 0.00
23
3850014D01
ref: 23
38500-14D02
HORN ASSEMBLY
€ 54.50
24-1
0151706164
ref: 24-1
01550-0616A
BOLT
€ 2.50
24-2
0155006163
ref: 24-2
01550-0616A
BOLT
€ 2.50
25-1
3714624500
ref: 25-1
37146-03A00
KEY,BLANK
€ 6.00
25-2
3714624510
ref: 25-2
37146-03A10
KEY,BLANK
€ 6.00
