SEAT
DR250SE 1991 (M) USA (E03)

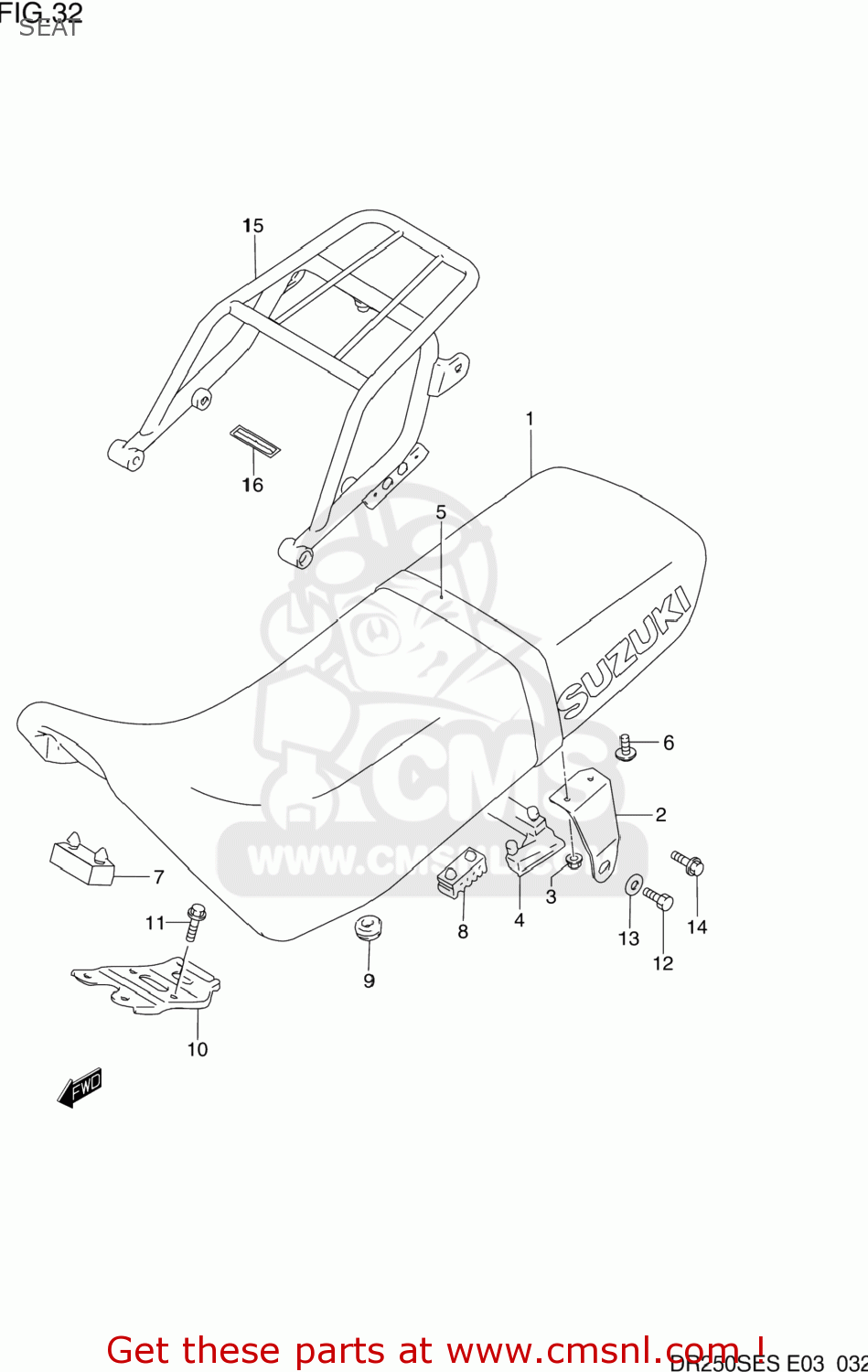

Seat diagram DR250SE 1991 (M) USA (E03)
SEAT DR250SE 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510015D109DD
ref: 1
SEAT SET
€ 279.50
2-1
4511614D00
ref: 2-1
BRACKET,SEAT,R
€ 8.00
2-2
4511714D00
ref: 2-2
BRACKET,SEAT,L
€ 8.00
3-1
0831616066
ref: 3-1
08316-1006B
NUT
€ 2.50
3-2
0831610063
ref: 3-2
08316-1006B
NUT
€ 2.50
4
4525514D00
ref: 4
CUSHION
€ 30.00
5
4518015D104UZ
ref: 5
45180-15D10-S04
BAND,SEAT GRIP (BLUE)
€ 0.00
6
0155006203
ref: 6
01550-0620A
BOLT
€ 2.50
7
0932108006
ref: 7
CUSHION
€ 3.00
8
4514931300
ref: 8
CUSHION,SEAT(40X20X15)
€ 2.00
9
0932008013
ref: 9
CUSHION
€ 4.00
10-1
4512015D00
ref: 10-1
45120-15D01
PLATE,SEAT FRONT HOOK
€ 16.50
10-2
4512015D01
ref: 10-2
PLATE,SEAT FR HOOK
€ 16.50
11-1
0151708126
ref: 11-1
01550-0812A
BOLT
€ 3.50
11-2
0155008123
ref: 11-2
01550-0812A
BOLT
€ 3.50
12-1
0110708125
ref: 12-1
01500-0812A
BOLT
€ 1.50
12-2
0192408125
ref: 12-2
01550-0812A
BOLT
€ 2.50
13
0832211084
ref: 13
08322-0108A
WASHER
€ 1.50
14
0155008123
ref: 14
01550-0812A
BOLT
€ 3.50
15-1
4631015D110NF
ref: 15-1
46310-15D30-0NF
CARRIER
€ 142.50
15-2
4631015D130NF
ref: 15-2
46310-15D30-0NF
CARRIER
€ 114.50
15-3
4631015D300NF
ref: 15-3
CARRIER COMP,SUPPORT
€ 114.50
15-4
4631015D301TS
ref: 15-4
CARRIER,SPORT
€ 618.00
16
6839114D00
ref: 16
LABEL,WARNING
€ 0.00
