CRANKSHAFT (MODEL P/R/S)
DR250SE 1991 (M) USA (E03)

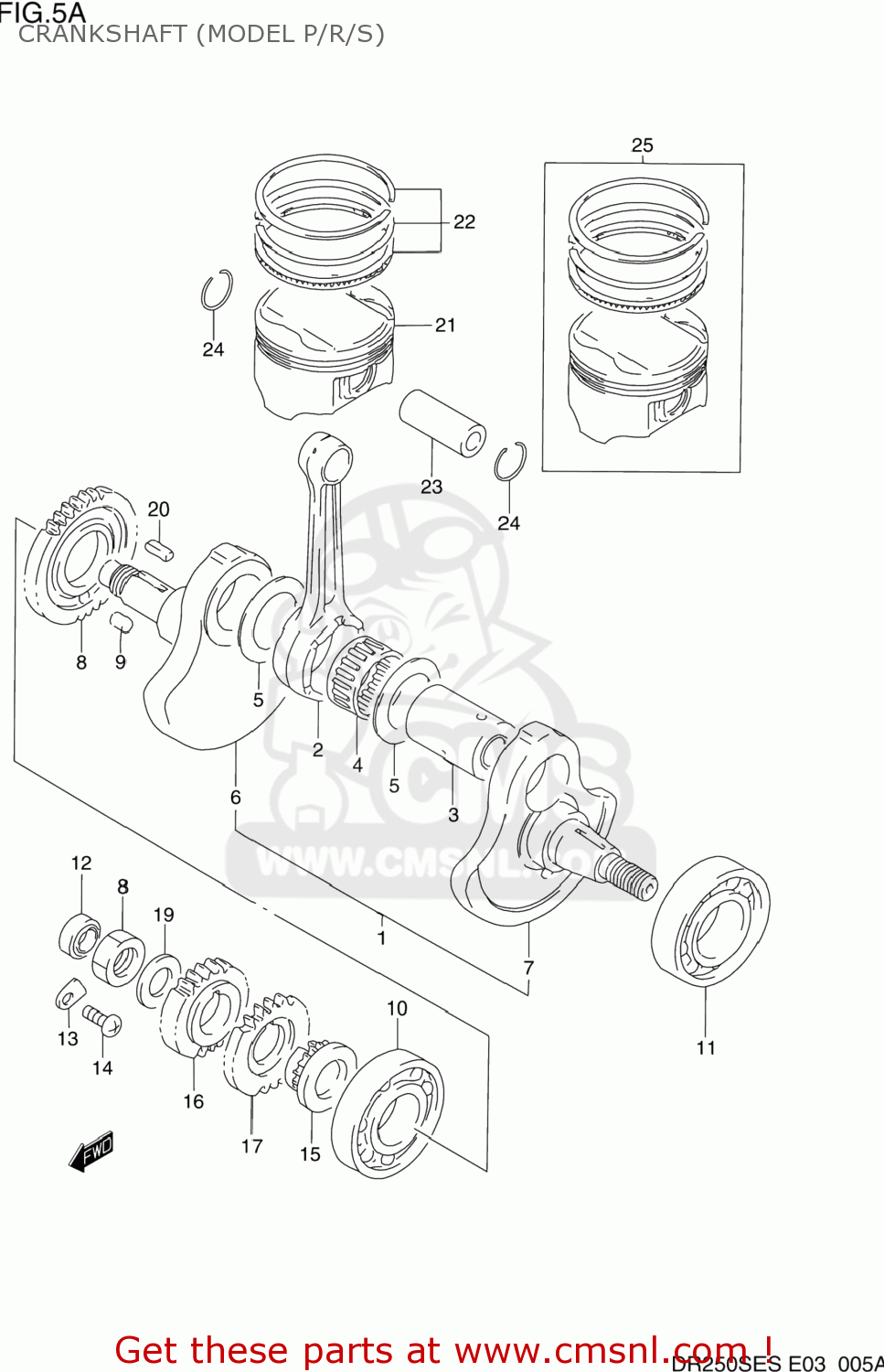

Crankshaft (model p/r/s) diagram DR250SE 1991 (M) USA (E03)
CRANKSHAFT (MODEL P/R/S) DR250SE 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1220047D50
ref: 1
CRANKSHAFT ASSEMBLY
€ 0.00
2-1
1216115D00
ref: 2-1
12161-15D10
CONNECTING ROD
€ 129.00
2-2
1216147D50
ref: 2-2
12161-15D10
CONNECTING ROD
€ 129.00
3
1221014D02
ref: 3
12210-14D03
PIN COMP,CRANK
€ 56.00
4
0926334005
ref: 4
BEARING(34X43X22)
€ 45.50
5
0916034003
ref: 5
WASHER(34X52X1)
€ 6.50
6
1222115D01
ref: 6
CRANKSHAFT,RIGHT
€ 131.50
7
1226115D10
ref: 7
CRANKSHAFT,LEFT
€ 145.00
8
1266114D00
ref: 8
GEAR,CRANK BAL DRIVE(NT:37)
€ 118.00
9
0422108149
ref: 9
PIN
€ 2.50
10
0926230077
ref: 10
BEARING(30X72X19)
€ 47.50
11
0926235038
ref: 11
BEARING(35X72X17)
€ 38.00
12
0928214003
ref: 12
SEAL,OIL(14X24X6)
€ 8.00
13
2474218A00
ref: 13
RETAINER,BEARING
€ 2.00
14
0211206123
ref: 14
02112-0612A
SCREW
€ 1.50
15
1273114D00
ref: 15
SPROCKET,CAM CHAIN DRIVE
€ 50.00
16
2111115D20
ref: 16
21111-15D21
GEAR,PRIMARY DRIVE (NT:
€ 50.00
17
1632115D00
ref: 17
16321-15D01
GEAR,OIL PUMP DRIVE (NT
€ 36.00
18
0914018012
ref: 18
NUT
€ 8.00
19
0916418001
ref: 19
WASHER
€ 3.00
20
0942105009
ref: 20
KEY
€ 8.00
21
1211115D100F0
ref: 21
PISTON (73.00MM)
€ 87.00
22
1214015D10
ref: 22
RING SET,PISTON
€ 73.00
23
1215117C00
ref: 23
PIN,PISTON
€ 15.50
24
0938119001
ref: 24
RING,SNAP
€ 2.50
25-1
1210015D10050
ref: 25-1
PISTON SET(OS:0.5)
€ 121.00
25-2
1210015D10100
ref: 25-2
PISTON SET (OS:1.0)
€ 69.00
