LEFT HANDLE SWITCH (MODEL P/R/S)
DR250SE 1991 (M) USA (E03)

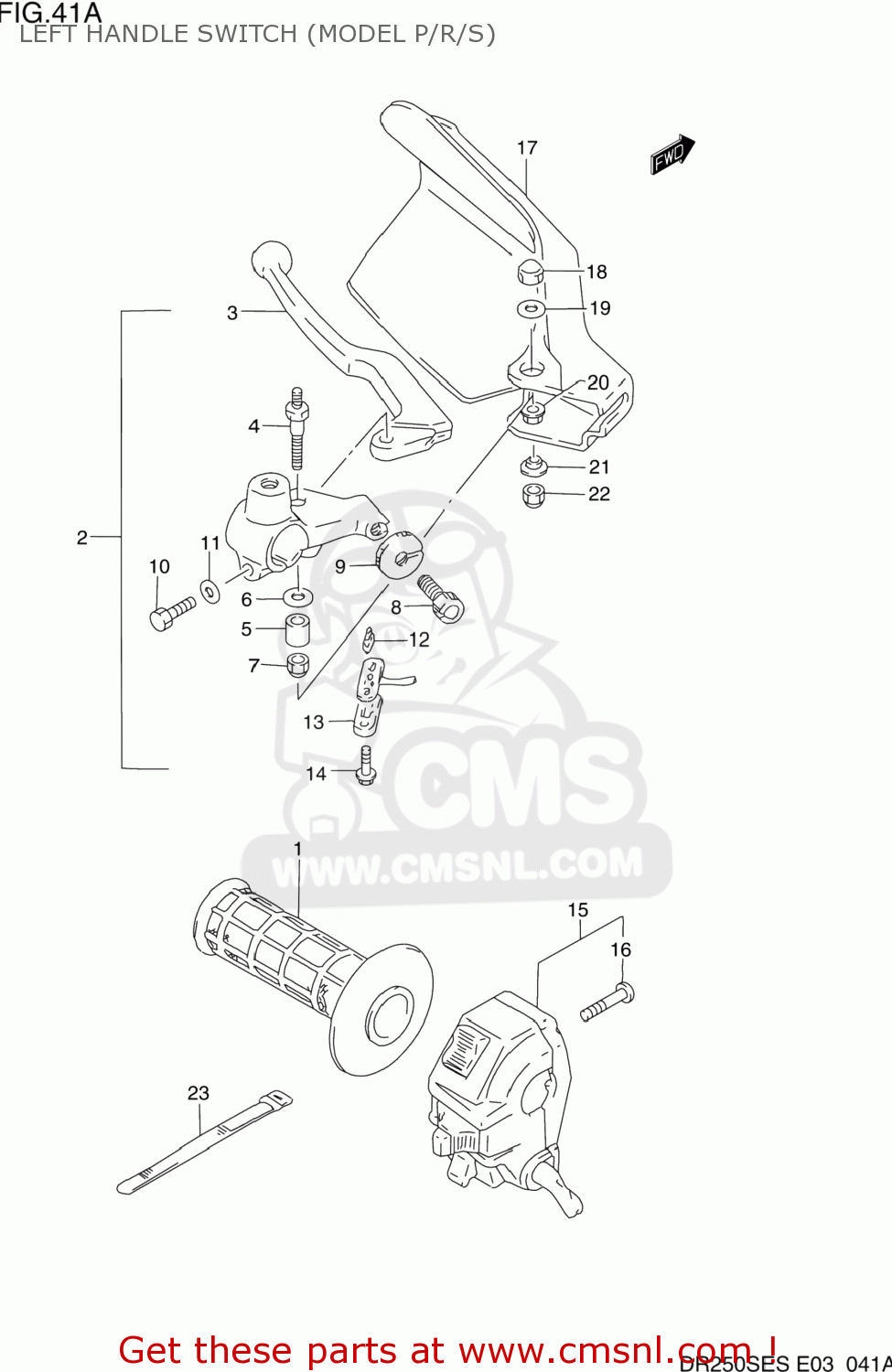

Left handle switch (model p/r/s) diagram DR250SE 1991 (M) USA (E03)
LEFT HANDLE SWITCH (MODEL P/R/S) DR250SE 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5721127C00
ref: 1
GRIP,L
€ 11.00
2-1
5750015D10
ref: 2-1
57500-15D11
LEVER ASSEMBLY
€ 53.50
2-2
5750015D11
ref: 2-2
LEVER ASSY,CLUTCH
€ 53.50
3-1
5762015D10
ref: 3-1
57620-15D11
LEVER,CLUTCH
€ 26.00
3-2
5762015D11
ref: 3-2
LEVER,CLUTCH
€ 26.00
4
5753144B00
ref: 4
57531-44B01
BOLT,LEVER SET
€ 6.50
5
5753244B00
ref: 5
SPACER,LEVER SET
€ 3.50
6
5753344B00
ref: 6
WASHER,LEVER SET
€ 2.50
7
0831921065
ref: 7
08319-2106B
NUT
€ 2.50
8
5744144400
ref: 8
ADJUSTER,CABLE
€ 5.50
9
5744244B00
ref: 9
NUT,LOCK
€ 11.50
10-1
0120406204
ref: 10-1
BOLT
€ 2.00
10-2
0150006207
ref: 10-2
BOLT
€ 2.00
11-1
0832221064
ref: 11-1
08322-0106B
WASHER
€ 2.00
11-2
0832201067
ref: 11-2
WASHER
€ 2.00
12
5746518601
ref: 12
CONTACT,SWITCH
€ 4.50
13
5748133010
ref: 13
COVER,FR BK TERMINAL BASE
€ 19.50
14
5748449110
ref: 14
SCREW
€ 1.50
15
3740003D12
ref: 15
37400-15D20
SWITCH ASSEMBLY,HANDLE,LEFT
€ 109.50
16
0211205305
ref: 16
02112-0530B
SCREW
€ 1.50
17
5754131D000NF
ref: 17
57541-31D30-0NF
COVER,KNUCKLE,LEFT
€ 25.50
18-1
0831311067
ref: 18-1
08313-10067
NUT
€ 2.00
18-2
0831311063
ref: 18-2
08313-1006A
NUT
€ 2.00
19
0916006066
ref: 19
WASHER(6.5X20X1.6)
€ 2.00
20
0916006019
ref: 20
WASHER(6.5X16X1.2)
€ 1.50
21
0916906040
ref: 21
WASHER
€ 2.00
22
0831921068
ref: 22
08319-2106A
NUT 6MM
€ 2.00
23
0940712402
ref: 23
CLAMP(L:120)
€ 3.00
