MAGNETO (MODEL P/R/S)
DR250SE 1991 (M) USA (E03)

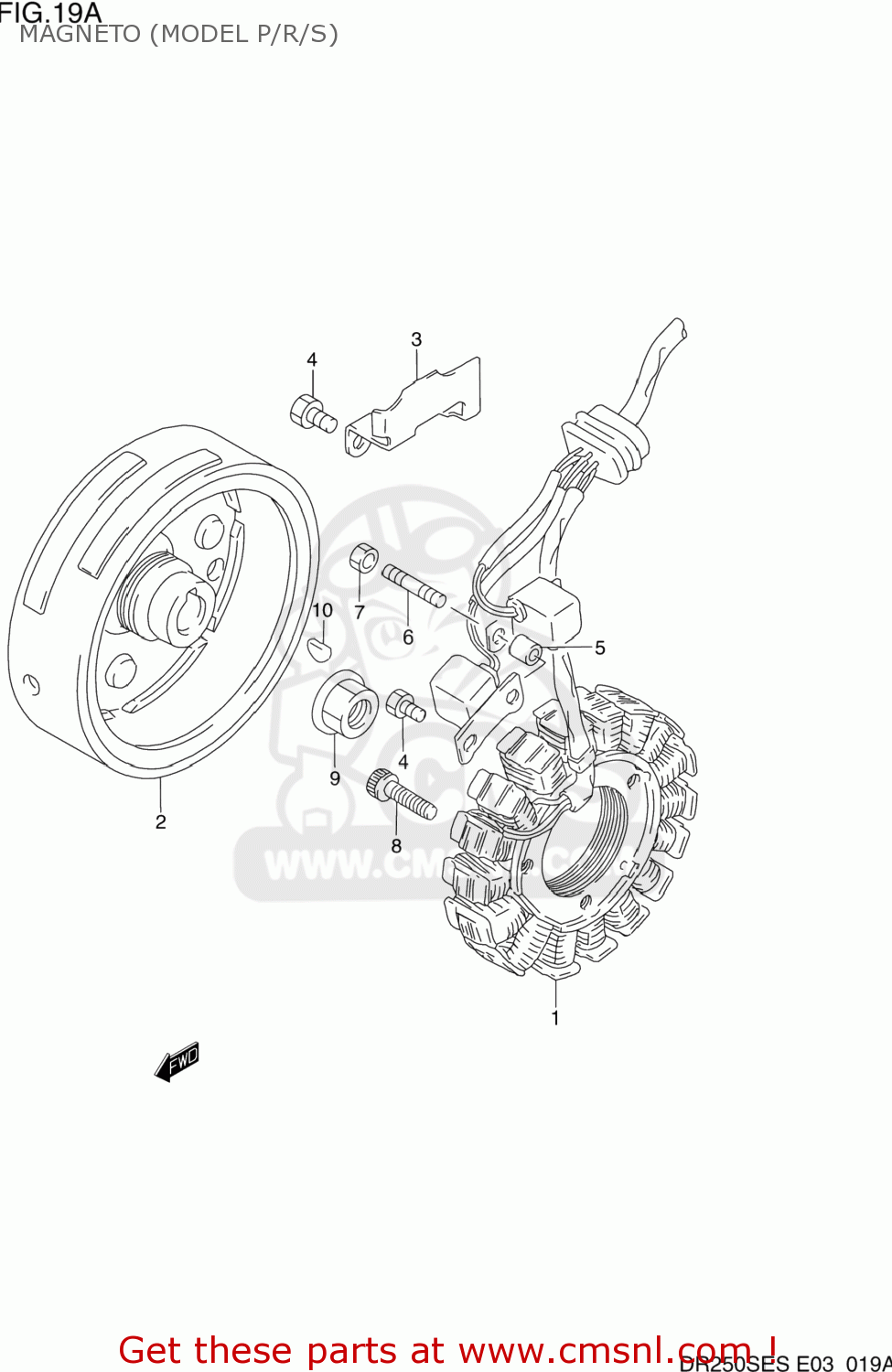

Magneto (model p/r/s) diagram DR250SE 1991 (M) USA (E03)
MAGNETO (MODEL P/R/S) DR250SE 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210115D01
ref: 1
STARTER ASSY
€ 807.00
2
3210215D00
ref: 2
ROTOR
€ 308.50
3
3237115D00
ref: 3
CLAMP,MAGNETO LEAD WIRE
€ 0.00
4
0910005019
ref: 4
BOLT(5X10)
€ 1.50
5
0918005009
ref: 5
09180-05053
SPACER (5.5X9.5X6.5)
€ 2.00
6
0910805014
ref: 6
BOLT,STUD(5X18)
€ 2.00
7-1
0831011057
ref: 7-1
08310-00057
NUT 5MM
€ 2.50
7-2
0831000053
ref: 7-2
08310-0005A
NUT
€ 2.50
8-1
0711006257
ref: 8-1
07130-06257
BOLT
€ 2.50
8-2
0713006253
ref: 8-2
07130-0625B
BOLT,CL.COVER
€ 3.00
9
0915914015
ref: 9
NUT
€ 3.00
10-1
0834131049
ref: 10-1
09420-04008
KEY 4MM
€ 3.50
10-2
0942004008
ref: 10-2
KEY
€ 3.50
