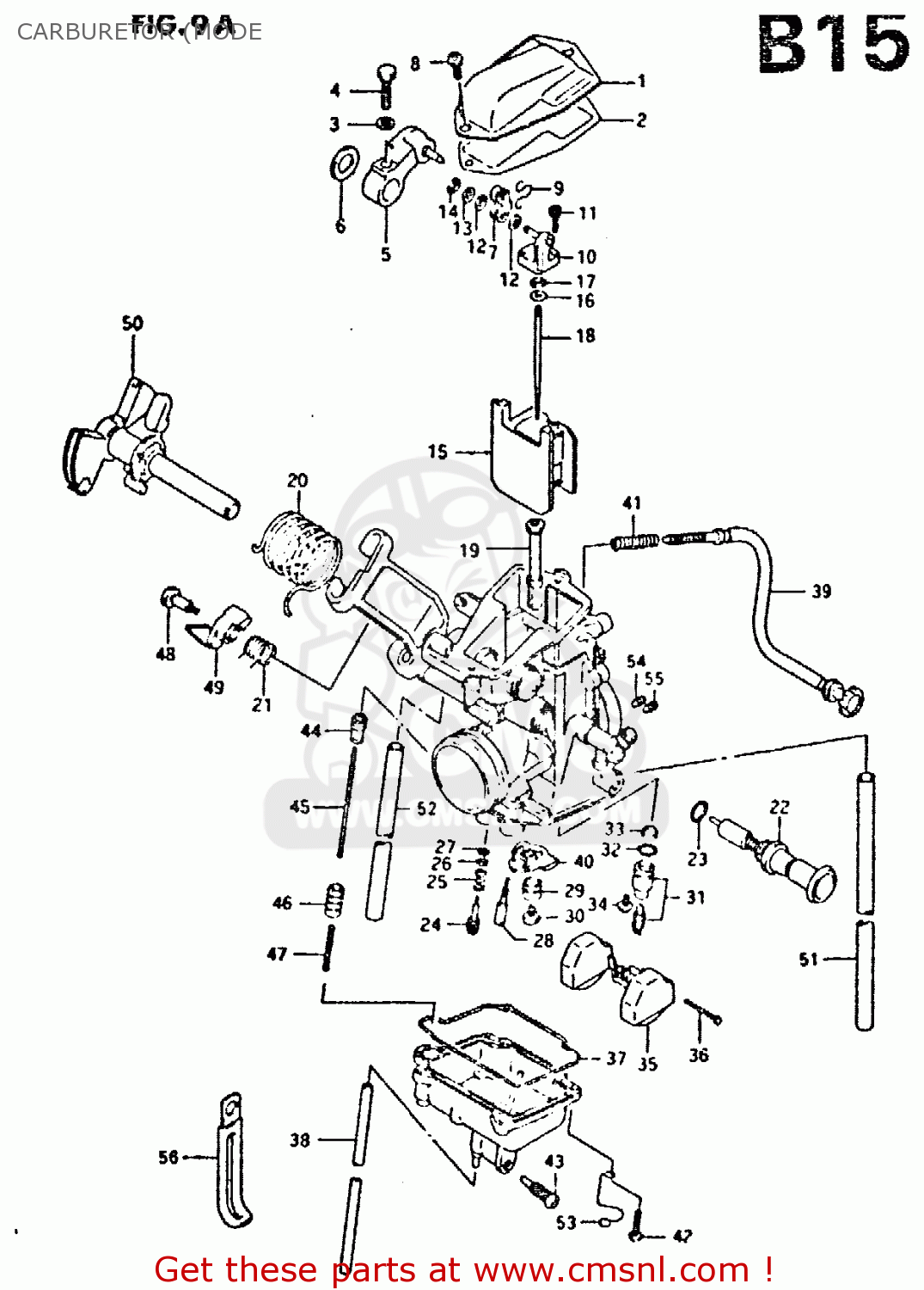

CARBURETOR (MODE

ref

part #

description

quantity

0

1320014D03
ref: 0
MODEL R/S/T

CARBURETOR ASSEMBLY

€ 518.50

0

1320014D80
ref: 0
MODEL S E37

CARBURETOR ASSY

€ 0.00

1

1326127A00
ref: 1

COVER,CARBURETOR,TOP

€ 14.50

2

1326627A00
ref: 2

GASKET,CARBURETOR TOP (NAS)

€ 6.00

3

0832101053
ref: 3

LOCK,WASHER

€ 3.00

4

0150005163
ref: 4

BOLT

€ 1.50

5

1354114A00
ref: 5

ARM,THROTTLE

€ 34.50

6

1357438200
ref: 6

RING,THROTTLE SHAFT

€ 4.00

7

1344714A00
ref: 7

PLATE

€ 16.50

8

0211234103
ref: 8

SCREW

€ 2.00

9

1344614A00
ref: 9

SPRING

€ 4.00

10

1339827A02
ref: 10

CONNECTOR

€ 18.00

11

0211203123
ref: 11

SCREW

€ 2.50

12

1344514A00
ref: 12

GASKET (NAS)

€ 3.00

13

0916004021
ref: 13

WASHER

€ 2.00

14-1

1329849000
ref: 14-1
MODEL R/S

E-RING

€ 2.00

14-2

1341538300
ref: 14-2
MODEL T

E RING

€ 2.00

15

1355114D00
ref: 15

VALVE,PISTON

€ 126.00

16

1338247010
ref: 16

WASHER,JET NEEDLE

€ 3.00

17

1339410010
ref: 17

CLIP

€ 4.50

18

1338314D00
ref: 18

NEEDLE,JET

€ 15.00

19

0949400681
ref: 19

JET,NEEDLE(P-8)

€ 23.50

20

1357342A20
ref: 20

SPRING

€ 9.00

21

1349414D00
ref: 21

SPRING

€ 7.00

22

1341114D00
ref: 22

PLUNGER ASSY

€ 39.00

23

1337446710
ref: 23

O RING

€ 4.50

24

1327947070
ref: 24
MODEL R/S/T

SCREW,PILOT

€ 11.50

25

1326847070
ref: 25

SPRING

€ 5.00

26

1329129900
ref: 26

WASHER

€ 2.00

27

1329529900
ref: 27

O RING,PILOT AIR SCREW

€ 4.00

28

0949235017
ref: 28

JET,PILOT(37.5)

€ 12.00

29

1333113A00
ref: 29

RING,MAIN JET FIXING

€ 5.50

30

0949125011
ref: 30
MODEL R/S/T

JET,MAIN(127.5)

€ 10.00

31-1

1337037100
ref: 31-1

VALVE ASSEMBLY,NEEDLE

€ 63.00

31-2

1337014D10
ref: 31-2
E37

VALVE ASSY, NEEDLE

€ 0.00

32

1337444080
ref: 32

O-RING,NEEDLE VALVE

€ 6.00

33

1337684110
ref: 33

FILTER

€ 6.50

34

1360243410
ref: 34

SCREW

€ 2.50

35

1325028A00
ref: 35

FLOAT

€ 33.00

36

1325492311
ref: 36

PIN,FLOAT

€ 2.00

37

1325127A00
ref: 37

O RING,FLOAT CHAMBER

€ 9.00

38

0935230503600
ref: 38
L:600>:50

HOSE(3X5X600)

€ 8.00

39

1326714D00
ref: 39

ADJUSTER ASSY

€ 44.50

40

1333114D00
ref: 40

RING

€ 5.50

41

1326814D00
ref: 41

SPRING

€ 4.00

42-1

1360104148
ref: 42-1

SCREW

€ 2.50

42-2

0211204163
ref: 42-2

SCREW 4X16

€ 1.00

43

1324713A00
ref: 43
MODEL R/S/T

SCREW,DRAIN

€ 5.50

44

1349944500
ref: 44

BOOT, ACCELE PUMP ROD

€ 11.00

45

1348714D00
ref: 45

ROD

€ 9.00

46

1349327A00
ref: 46

PLUNGER

€ 9.00

47

1327109400
ref: 47

SPRING

€ 4.50

48

1361314A00
ref: 48

BOLT

€ 8.00

49

1349014A00
ref: 49

LEVER

€ 9.50

50

1355314D00
ref: 50

SHAFT ASSEMBLY

€ 64.00

51

0935250903600
ref: 51
L:600>200

HOSE(5X9X600)

€ 28.50

52

0935250903600
ref: 52
L:600>175

HOSE(5X9X600)

€ 28.50

53

1369219C00
ref: 53

CLIP

€ 6.00

54

0949370009
ref: 54
MODEL R/S/T

JET,MAIN AIR(0.7)

€ 13.00

55

0949322005
ref: 55
MODEL R/S/T

JET,AIR(1.1)

€ 12.00

56

0940406429
ref: 56

CLAMP(L:45)

€ 2.50

56-1

0949320007
ref: 56-1
MODEL L/M

JET,AIR(1.0)

€ 10.00

56-2

0949322005
ref: 56-2
MODEL N/P

JET,AIR(1.1)

€ 12.00

57

0940406402
ref: 57

CLAMP

€ 2.50

all assemblies
