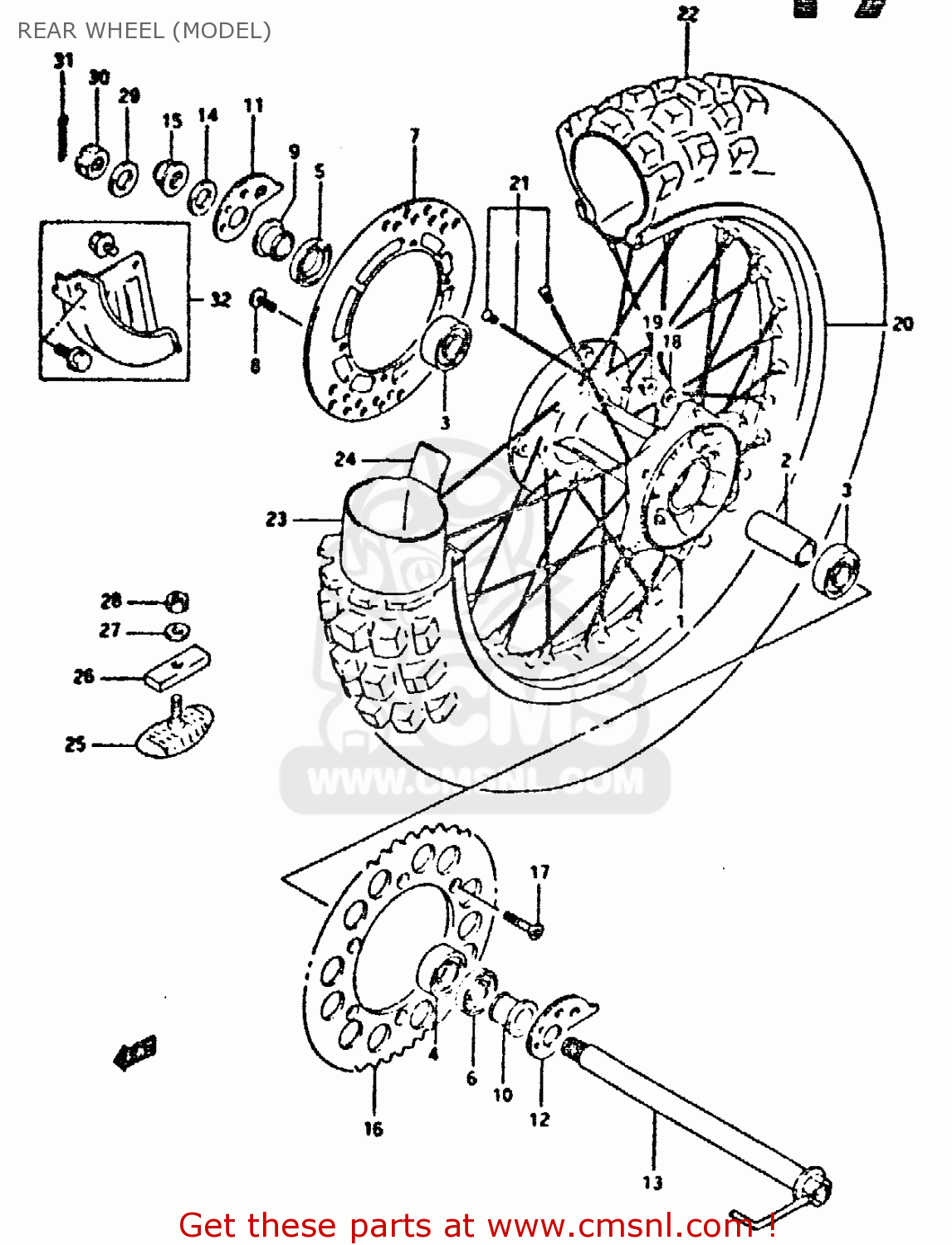

REAR WHEEL (MODEL)

ref

part #

description

quantity

1-1

6411114D00
ref: 1-1
>64111-14D01

HUB,REAR WHEEL

€ 768.00

1-2

6411114D01
ref: 1-2
MODEL R/S

HUB,REAR WHEEL

€ 768.00

1-3

6411114D20
ref: 1-3
MODEL T

HUB,REAR WHEEL

€ 275.50

2

6473114D00
ref: 2

SPACER,RR HUB BEARING

€ 17.50

3

0812360047
ref: 3

BALL BEARING

€ 21.00

4

0812362047
ref: 4

BEARING

€ 17.00

5

0928226001
ref: 5

SEAL,OIL(26X42X8)

€ 13.00

6

0928326019
ref: 6

SEAL,OIL(26X47X5)

€ 9.50

7-1

6921103D01
ref: 7-1
MODEL R/S

DISC,RR BRAKE

€ 160.00

7-2

6921103D10
ref: 7-2
MODEL T

DISC,RR BRAKE

€ 166.00

8-1

0910608091
ref: 8-1
>09106-08111

BOLT

€ 4.00

8-2

0910608111
ref: 8-2
MODEL R/S

BOLT

€ 4.00

8-3

5942103A10
ref: 8-3
MODEL T

BOLT,BRAKE DISC

€ 4.00

9

6474114D00
ref: 9

SPACER,RR AXLE,R

€ 13.00

10

6475114D00
ref: 10

SPACER,RR AXLE,L

€ 31.50

11

6141014D10
ref: 11

ADJUSTER,CHAIN,R

€ 31.50

12

6142114D10
ref: 12

ADJUSTER,CHAIN,L

€ 15.00

13

6471014D50
ref: 13

AXLE,RR

€ 61.50

14

0916019022
ref: 14

WASHER(19X32X3.2)

€ 5.00

15

0831921188
ref: 15
MODEL R/T E94 MODE

NUT 18MM

€ 3.50

16-1

6451108D50
ref: 16-1

SPROCKET,RR(NT:44-520)

€ 138.50

16-2

6451108D40
ref: 16-2
OPT. OFF ROAD USE ON

SPROCKET,RR(NT:43)

€ 0.00

16-3

6451108D60
ref: 16-3
OPT. OFF ROAD USE ON

SPROCKET,RR(NT:45)

€ 0.00

16-4

6451114D70
ref: 16-4
OPT. OFF ROAD USE ON

SPROCKET,RR(43T,S45C)

€ 87.00

16-5

6451114D80
ref: 16-5
OPT. OFF ROAD USE ON

SPROCKET,RR(44T,S45C)

€ 68.50

16-6

6451114D90
ref: 16-6
OPT. OFF ROAD USE ON

SPROCKET,REAR (45T)(S45C)

€ 0.00

17

0912008004
ref: 17

SCREW(8X33.5)

€ 3.00

18

0832201083
ref: 18

WASHER

€ 1.50

19

0831931087
ref: 19

NUT

€ 2.50

20

6531114D00
ref: 20

RIM,RR WHEEL(18X2.15 AL)

€ 248.00

21

6532014D00
ref: 21

SPOKE SET,RR WHEEL

€ 64.50

22-1

6511014D10
ref: 22-1
MODEL R >65110-14D00

TIRE, ASSY (110/100-1B) BRIDGESTONE

€ 0.00

22-2

6511014D00
ref: 22-2
MODEL S/T

TIRE COMP,REAR 110/100-1

€ 0.00

23

6520040430
ref: 23

TUBE,INNER

€ 0.00

24

5526111010
ref: 24

PROTECTOR,INNER TUBE

€ 3.50

25-1

6527014200
ref: 25-1
>65270-28E00

STOPPER,BEAD

€ 38.00

25-2

6527028E00
ref: 25-2

STOPPER,BEAD(2.15)

€ 38.00

26

6527127C00
ref: 26

CUSHION,BEAD STOPPER

€ 5.50

27-1

0832201087
ref: 27-1
MODEL R

WASHER

€ 2.00

27-2

0832201083
ref: 27-2
MODEL S/T

WASHER

€ 1.50

28-1

0831000087
ref: 28-1
MODEL R

NUT

€ 2.00

28-2

0831000083
ref: 28-2
MODEL S/T

NUT

€ 1.50

29

0916019022
ref: 29
MODEL S/T E1

WASHER(19X32X3.2)

€ 5.00

30

0831440183
ref: 30
MODEL S/T E1

NUT

€ 4.50

31

0411140308
ref: 31
MODEL S/T E1

PIN,COTTER

€ 1.50

32

6920028C00
ref: 32
OPT. OFF ROAD USE ON

COVER SET,RR BRAKE DISC

€ 29.50

all assemblies
