CYLINDER

DR350 1990 (L)

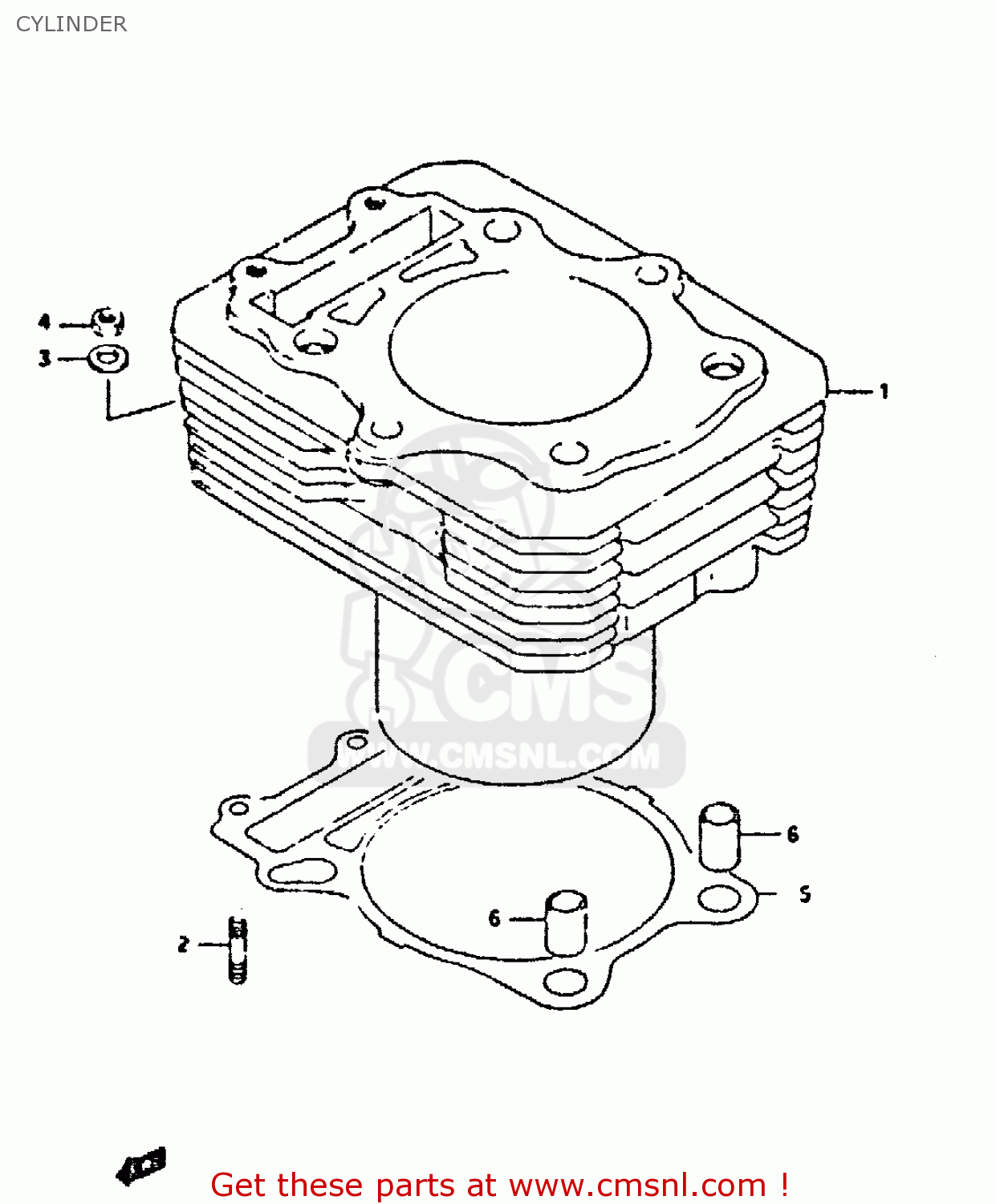

Cylinder diagram DR350 1990 (L)

prices are in EUR

ref

part #

description

quantity

1-1

CYLINDER

€ 554.50

1-2

1121014D110F0
ref: 1-2
MODEL M/N/P

CYLINDER

€ 554.50

1-3

1121047D000F0
ref: 1-3
MODEL R/S/T

CYLINDER

€ 554.50

0142106208
ref: 2

STUD 6X20

€ 2.50

3-1

0832211068
ref: 3-1
MODEL L/M/N/P

WASHER 6MM

€ 2.00

3-2

0832201063
ref: 3-2
MODEL R/S/T

WASHER

€ 2.00

4-1

0914006022
ref: 4-1
MODEL L/M/N/P

NUT

€ 3.00

1124114D01
ref: 5

GASKET,CYLINDER (NAS)

€ 12.00

0421113189
ref: 6
09206-13001

PIN

€ 2.50
