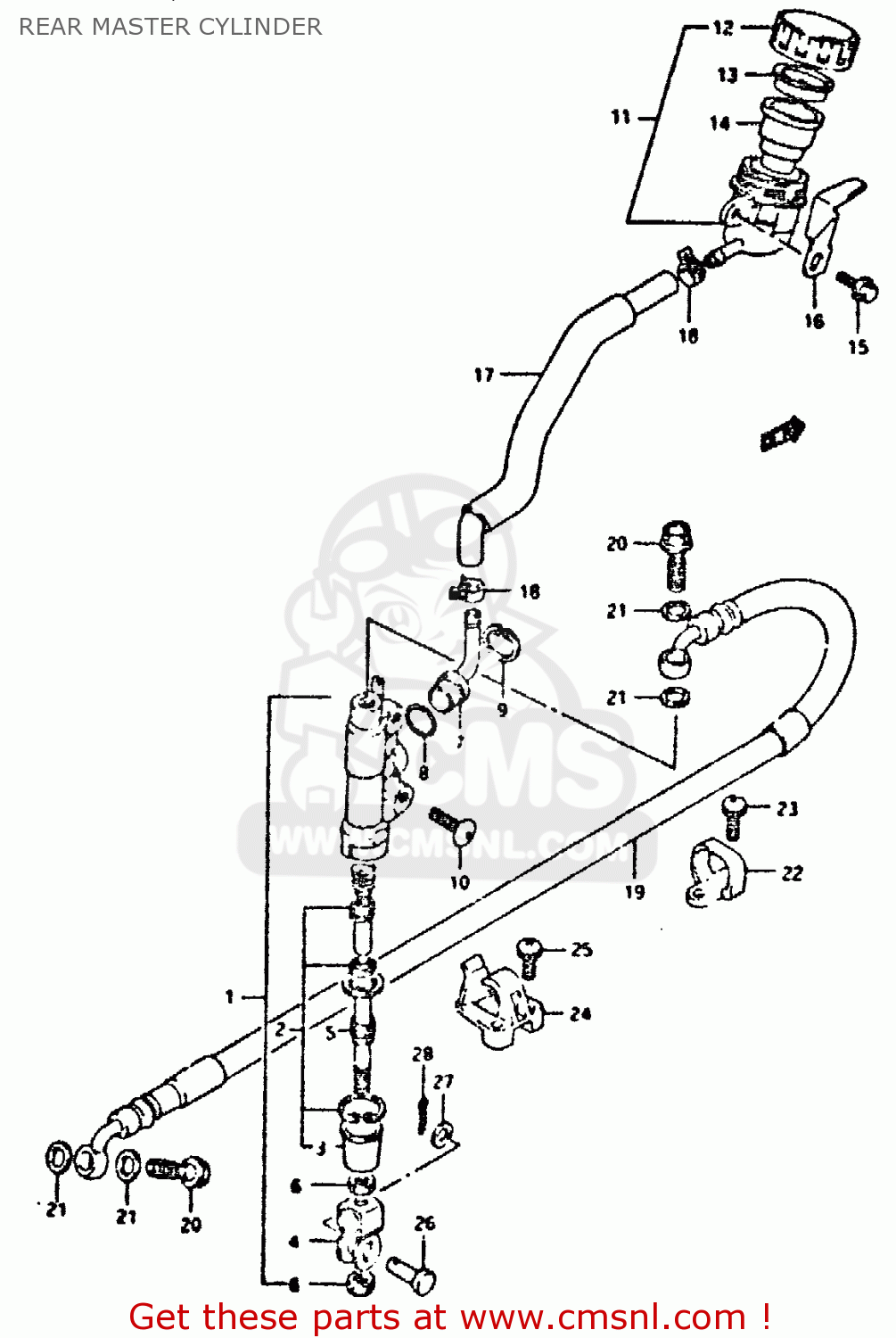

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960014D00
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 167.00

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969200B21
ref: 4

YOKE

€ 13.50

5

6967048B00
ref: 5

ROD,PUSH

€ 20.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

5967217C00
ref: 7

CONNECTOR

€ 8.00

8

6968634200
ref: 8

O RING

€ 3.50

9

6967400B20
ref: 9

CIRCLIP

€ 3.00

10-1

0913906024
ref: 10-1
>09139-06067

SCREW

€ 3.00

10-2

0913906067
ref: 10-2

SCREW(6X16)

€ 3.00

11

6974003D10
ref: 11

TANK ASSY,RR BRAKE RESERVOIR

€ 72.50

12

6966903D10
ref: 12

CAP

€ 11.00

13

6966800B20
ref: 13

PLATE

€ 4.00

14

6966700B20
ref: 14

DIAPHRAGM

€ 9.50

15-1

0151706164
ref: 15-1
MODEL L/M/N/P

BOLT

€ 2.50

15-2

0155006163
ref: 15-2
MODEL R/S/T

BOLT

€ 2.50

16

6974314D10
ref: 16
MODEL L/M/N/P/R

GUARD,RSVR TANK CAP

€ 4.50

17

6973014D00
ref: 17

HOSE COMP,RESERVOIR TANK

€ 26.00

18-1

0940112402
ref: 18-1
MODLE L/M/N/P

CLAMP

€ 2.50

18-2

0940112404
ref: 18-2
MODEL R/S/T

CLIP

€ 2.50

19

6948014D00
ref: 19

HOSE,RR BRAKE

€ 65.00

20-1

0936010017
ref: 20-1
MODEL L/M

BOLT UNION

€ 6.50

20-2

0936010017
ref: 20-2
MODEL N/P

BOLT UNION

€ 6.50

20-3

0936010034
ref: 20-3
MODEL N/P

BOLT UNION

€ 5.00

20-4

0936010039
ref: 20-4
MODEL R/S/T

BOLT UNION

€ 6.50

20-5

0936010040
ref: 20-5
MODEL R/S/T

BOLT UNION

€ 5.00

21

0916110009
ref: 21

WASHER(10X15X1.5)

€ 2.00

22

6119600B21
ref: 22

GUIDE,RR BRAKE HOSE

€ 6.00

23-1

0912505042
ref: 23-1
MODEL L/M/N/P

SCREW(5X10)

€ 2.50

23-2

0214205103
ref: 23-2
MODEL R/S/T

SCREW

€ 2.50

24

6119603D00
ref: 24

GUIDE,RR BRAKE HOSE

€ 3.00

25-1

0211235168
ref: 25-1
MODEL L/M/N/P

SCREW

€ 2.50

25-2

0211235163
ref: 25-2
MODEL R/S/T

SCREW

€ 2.50

26

0920008048
ref: 26

PIN(8X20)

€ 3.00

27

0916008074
ref: 27

WASHER(8.5X13X1.6)

€ 2.50

28

0411125158
ref: 28

PIN 20X15

€ 1.50
