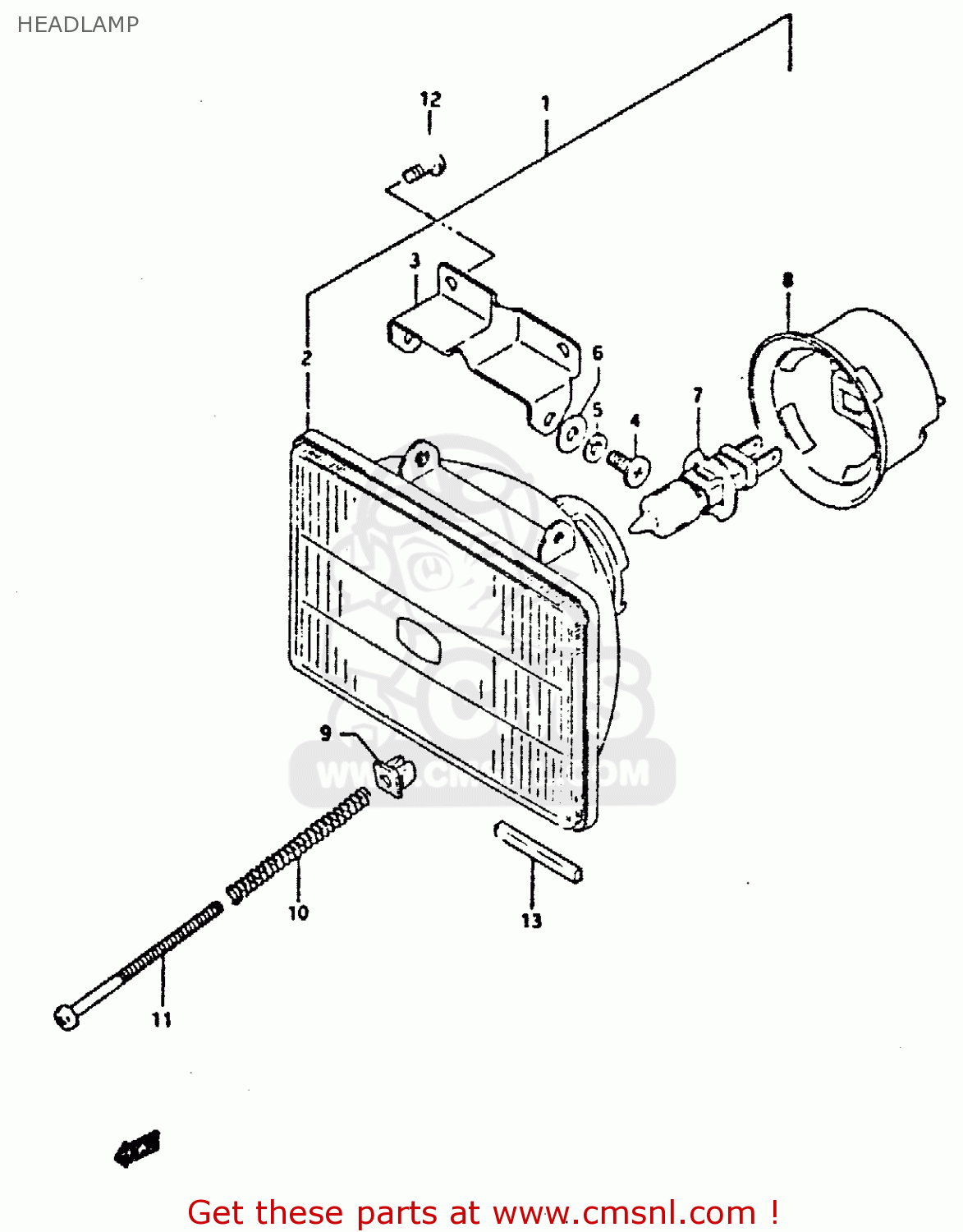

HEADLAMP

ref

part #

description

quantity

1-1

3510005D00
ref: 1-1
MODEL L/M

HEADLAMP ASSY

€ 107.00

1-2

3510005D10
ref: 1-2
MODEL N/P/R/S/T

HEADLAMP ASSY

€ 150.00

2

3512105D00
ref: 2

UNIT,LAMP

€ 80.00

3

3523005D00
ref: 3

BRACKET,LAMP

€ 9.00

4

3513616700
ref: 4

SCREW

€ 3.00

5

0832101057
ref: 5

WASHER,LOCK

€ 2.00

6

3513805D00
ref: 6

WASHER

€ 1.50

7

0947112160
ref: 7

BULB(12V55W)

€ 24.50

8

3517305D00
ref: 8

COVER,SOCKET

€ 15.00

9-1

3515205C00
ref: 9-1
MODEL L/M/N/P/R

NUT,HEADLAMP ADJUSTER

€ 2.50

9-2

3513512E20
ref: 9-2
MODEL S/T

NUT,ADJUSTING

€ 2.50

10

3515430B00
ref: 10

SPRING,HEAD LAMP ADJUSTER

€ 1.50

11-1

3515105D00
ref: 11-1
MODEL L/M/N/P/R

SCREW,HEADLAMP ADJUST

€ 3.00

11-2

0912501501
ref: 11-2
MODEL S/T

SCREW

€ 0.00

12-1

0351104106
ref: 12-1
MODEL L/M/N/P

SCREW

€ 1.50

12-2

0351104103
ref: 12-2
MODEL R/S/T

SCREW

€ 1.50

13-1

3365214D00
ref: 13-1
MODEL N/P

PROTECTOR,BATTERY

€ 2.50

13-2

3365220C00
ref: 13-2
MODEL R/S/T

PROTECTOR(50X50X5)

€ 2.50

all assemblies
