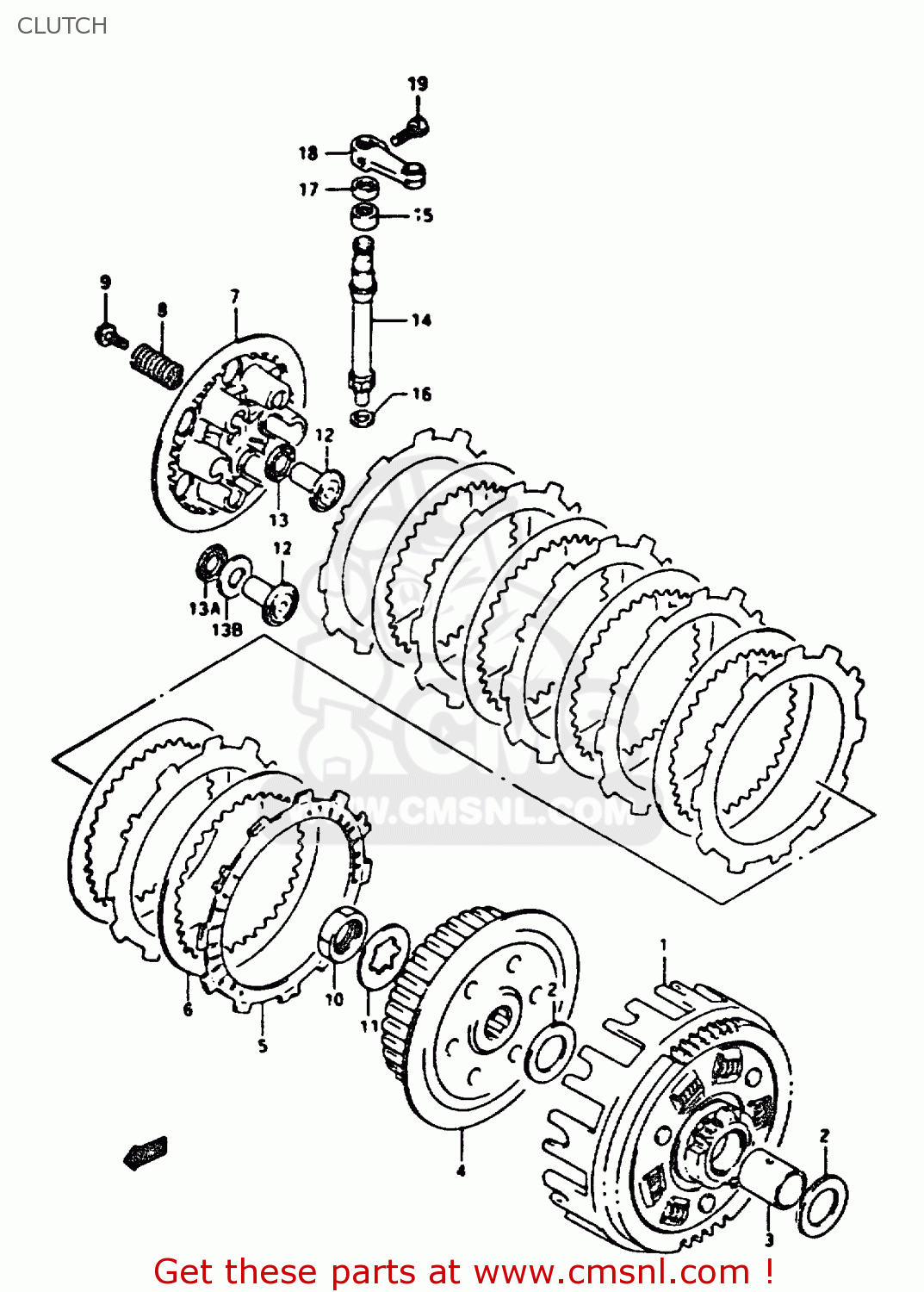

CLUTCH

ref

part #

description

quantity

1-1

2120014D11
ref: 1-1
MODEL L/M/N/P NT:62/

GEAR ASSY,PRI DRIVEN(62/15

€ 321.00

1-2

2120015D21
ref: 1-2
MODEL R/S/T NT:64/15

GEAR ASSY,PRI DRIVEN(64/15

€ 238.00

2

0821120363
ref: 2

WASHER

€ 3.50

3

0918020109
ref: 3

SPACER(20X25X29)

€ 15.50

4

2141014D00
ref: 4

HUB,CLUTCH SLEEVE

€ 114.00

5

2144112D01
ref: 5

PLATE,CLUTCH DRIVE (NAS)

€ 16.50

6-1

2145114D00
ref: 6-1
MODEL L/M/N/P

PLATE,CLUTCH DRIVEN (NAS)

€ 10.50

6-2

2145128C30
ref: 6-2
MODEL R/S/T

PLATE,CLUTCH DRIVEN T: (NAS)

€ 10.50

7

2146200B02
ref: 7

DISC,CLUTCH PRESSURE

€ 40.00

8

0944015014
ref: 8

SPRING

€ 4.00

9

0911605003
ref: 9

BOLT 5X16

€ 2.50

10

0914020002
ref: 10

NUT (20MM)

€ 3.50

11

0916720009
ref: 11
<09167-20006

WASHER,LOCK

€ 3.00

12

2316544B01
ref: 12
<23165-00B00

RACK,CLUTCH RELEASE

€ 17.00

13

0926310002
ref: 13
-F.NO.102211

BEARING(10X22X2.8)

€ 8.50

13A

0926310016
ref: 13A
F.NO.1002112-

BEARING(10X24X2)

€ 7.00

13B

0821110241
ref: 13B
F.NO.102212-

WASHER

€ 2.50

14

2326114D02
ref: 14

PINION,CLUTCH RELEASE

€ 36.00

15

0926312024
ref: 15

BEARING(12X16X10)

€ 11.00

16

0821108141
ref: 16

WASHER

€ 1.50

17

0928510004
ref: 17

SEAL,OIL(10X17X5)

€ 3.50

18

2327120901
ref: 18

ARM,CLUTCH RELEASE

€ 20.50

19-1

0110706167
ref: 19-1
MODEL L/M/N/P

BOLT

€ 3.00

19-2

0150006163
ref: 19-2
MODEL R/S/T

BOLT

€ 2.00

all assemblies
