CRANKCASE COVER

DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)

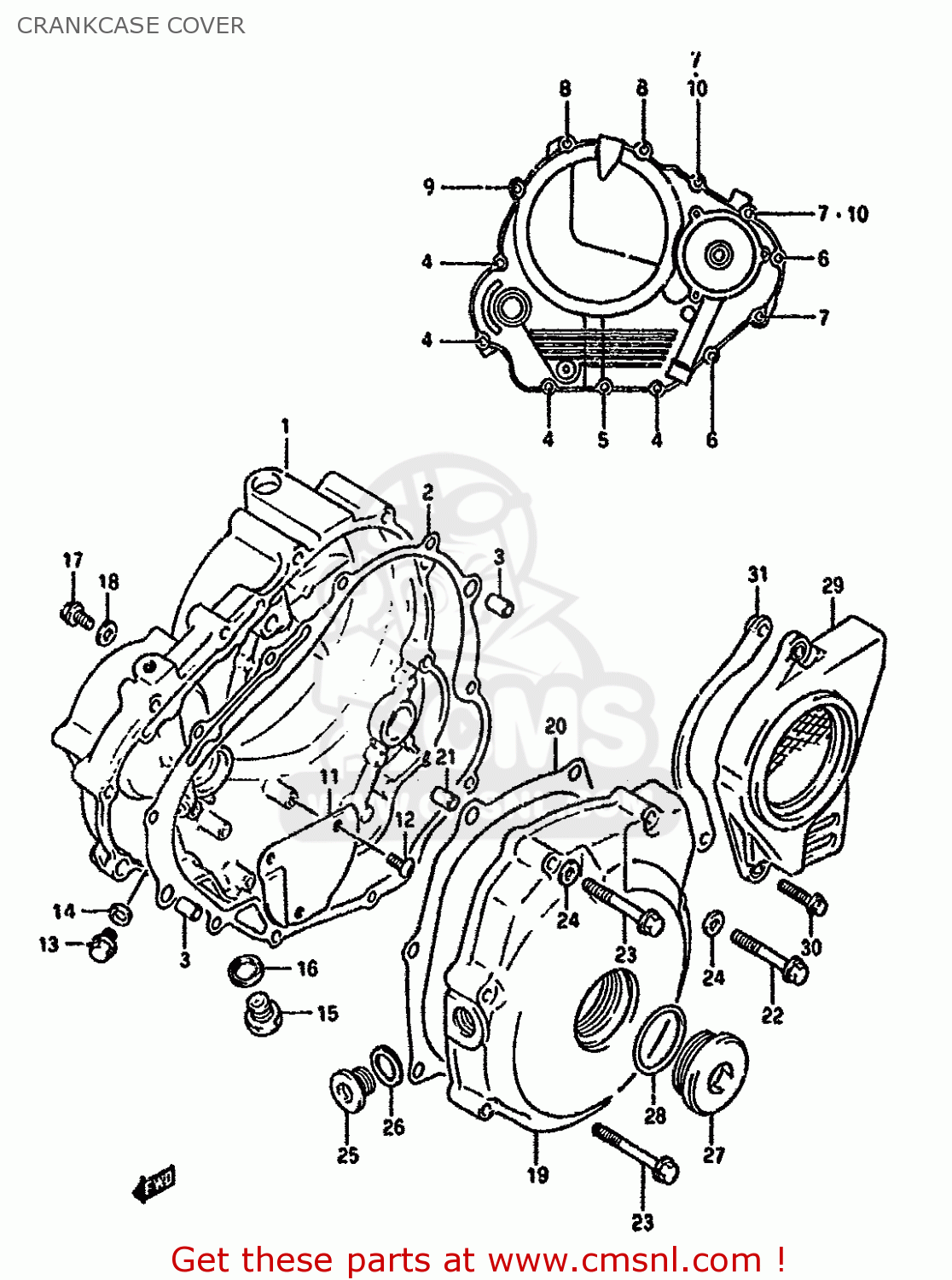

Crankcase cover diagram DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)

CRANKCASE COVER DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)
CRANKCASE COVER DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)
CRANKCASE COVER DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
1134114D03
ref: 1-1
MODEL L/M/N-11341-14
COVER,CLUTCH
€ 261.00
1-2
1134114D06
ref: 1-2
MODEL P/R
COVER,CLUTCH
€ 261.00
2
1148214D02
ref: 2
GASKET,CLUTCH COVER (NAS)
€ 24.50
3
0421109149
ref: 3
PIN
0421109149
€ 2.00
4-1
0154706257
ref: 4-1
MODEL L/M/N/P
BOLT
0154706257
€ 2.50
4-2
0154706253
ref: 4-2
MODEL R
SCREW
0154706253
€ 2.50
5-1
0154706307
ref: 5-1
MODEL L/M/N/P
BOLT
0154706307
€ 2.50
5-2
0154706303
ref: 5-2
MODEL R
BOLT,G/S SWITC
0154706303
€ 3.00
6-1
0154706357
ref: 6-1
MODEL L/M/N/P
BOLT
0154706357
€ 2.50
6-2
0154706353
ref: 6-2
MODEL R
BOLT
0154706353
€ 3.00
7-1
0154706407
ref: 7-1
MODEL L/M/N/P
BOLT
0154706407
€ 2.50
7-2
0154706403
ref: 7-2
MODEL R
BOLT
0154706403
€ 3.00
8-1
0154706607
ref: 8-1
MODEL L/M/N/P
BOLT
0154706607
€ 2.50
8-2
0154706603
ref: 8-2
MODEL R
BOLT
€ 3.50
9-1
0154706657
ref: 9-1
MODEL L/M/N/P
BOLT
0154706657
€ 2.00
9-2
0154706653
ref: 9-2
MODEL R
BOLT
€ 2.00
10
0916806023
ref: 10
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
11
1134914D00
ref: 11
SEPARATOR,OIL RETURN
€ 4.50
12-1
0912505042
ref: 12-1
MODEL L/M/N/P
SCREW(5X10)
0912505042
€ 2.50
12-2
0214205103
ref: 12-2
MODEL R
SCREW
0214205103
€ 2.50
13
0910306078
ref: 13
BOLT(6X8)
0910306078
€ 2.00
14
0916806004
ref: 14
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
15-1
0924814005
ref: 15-1
MODEL L/M/N
PLUG,14X12
0924814005
€ 5.00
15-2
0924810007
ref: 15-2
MODEL P/R
PLUG(10X6.8)
0924810007
€ 4.50
16-1
0916814004
ref: 16-1
MODEL L/M/N
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
16-2
0916810002
ref: 16-2
MODEL P/R
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
17
0912806043
ref: 17
SCREW (6X10)
0912806043
€ 2.00
18
0916806023
ref: 18
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
19-1
1135114D02
ref: 19-1
MODEL L/M/N
COVER,MAGNETO
€ 92.00
19-2
1135114D10
ref: 19-2
MODEL P/R
COVER,MAGNETO
€ 189.00
20-1
1148314D01
ref: 20-1
MODEL L/M/N
GASKET,MAGNETO COVER (NAS)
1148314D01
€ 23.00
20-2
1148314D03
ref: 20-2
MODEL P/R
GASKET,MAGNETO COVER (NAS)
1148314D03
€ 23.00
21
0421109149
ref: 21
PIN
0421109149
€ 2.00
22-1
0154706357
ref: 22-1
MODEL L/M/N
BOLT
0154706357
€ 2.50
22-2
0154706357
ref: 22-2
MODEL P
BOLT
0154706357
€ 2.50
22-3
0154706353
ref: 22-3
MODEL R
BOLT
0154706353
€ 3.00
23-1
0154706457
ref: 23-1
MODEL L/M/N
BOLT
0154706457
€ 2.50
23-2
0154706457
ref: 23-2
MODEL P
BOLT
0154706457
€ 2.50
23-3
0154706453
ref: 23-3
MODEL R
BOLT
0154706453
€ 3.00
24
0916806023
ref: 24
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
25
0924814005
ref: 25
PLUG,14X12
0924814005
€ 5.00
26
0916814002
ref: 26
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
27
092593601620H
ref: 27
PLUG(SILVER)
092593601620H
€ 10.50
28
0928033004
ref: 28
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
29
1136014D01
ref: 29
COVER,ENGINE SPROCKET
1136014D01
€ 84.00
30-1
0154706257
ref: 30-1
MODEL L/M/N/P
BOLT
0154706257
€ 2.50
30-2
0154706253
ref: 30-2
MODEL R
SCREW
0154706253
€ 2.50
31-1
2764014D01
ref: 31-1
MODEL L/M/N/P
PLATE,FR CHAIN GUIDE
2764014D01
€ 59.50
31-2
2764014D10
ref: 31-2
MODEL R
PLATE,FR CHAIN GUIDE
2764014D10
€ 14.50
