REAR FENDER (MODEL R)

DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)

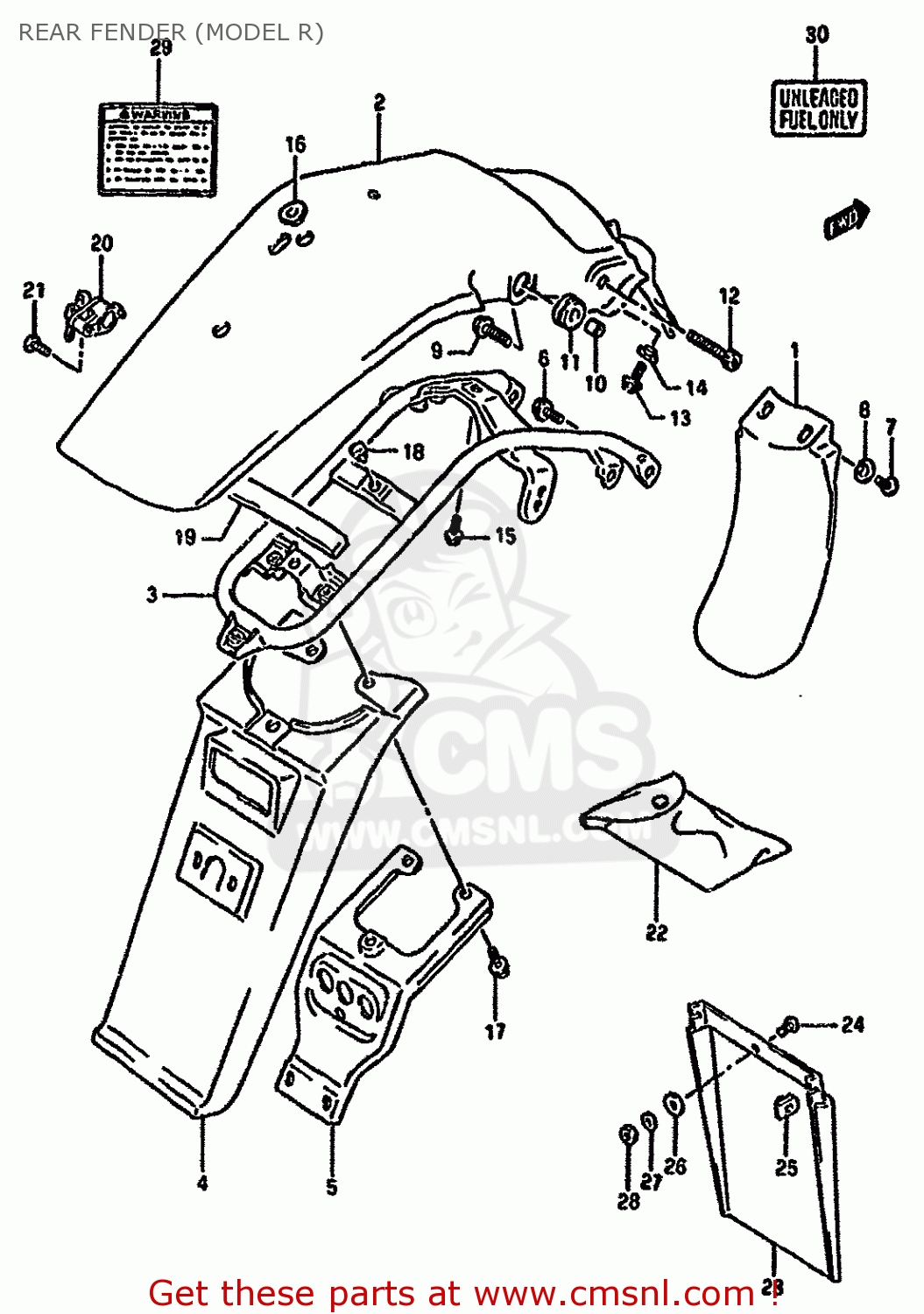

Rear fender (model r) diagram DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)

REAR FENDER (MODEL R) DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)
REAR FENDER (MODEL R) DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)
REAR FENDER (MODEL R) DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
6311214D00
ref: 1
BODY,RR FENDER FR
6311214D00
€ 19.00
2-1
6311314D0330H
ref: 2-1
BODY,RR FENDER RR
6311314D0330H
€ 72.00
2-2
6311314D3330H
ref: 2-2
E22
BODY,RR FENDER RR
€ 55.50
3-1
6312014D11
ref: 3-1
DR350SR
REINF,RR FENDER
€ 104.50
3-2
6312014D30
ref: 3-2
DR350SHR
REINFORCEMENT, REAR FENDER
€ 155.00
4-1
6331103D01
ref: 4-1
E2,E4,E21,E24,E34,E9
EXTENSION,RR FENDER
6331103D01
€ 24.00
4-2
6331103D11
ref: 4-2
E18,E39
EXTENSION, REAR FENDER
€ 27.50
4-3
6331103D30
ref: 4-3
E22
EXTENSION,RR FENDER
€ 33.00
5
6332003D03
ref: 5
REINFORCEMENT,RR FENDER EXT
€ 44.00
6
0910308291
ref: 6
BOLT
€ 3.00
7
0214206123
ref: 7
SCREW 6X12
0214206123
€ 2.00
8
0916906045
ref: 8
WASHER
0916906045
€ 2.50
9
0910308292
ref: 9
BOLT(8X30)
€ 3.00
10
0918008030
ref: 10
SPACER (8.8X12X7)
0918008030
€ 3.50
11
0932012011
ref: 11
CUSHION
0932012011
€ 3.00
12
0910608105
ref: 12
BOLT(8X30)
0910608105
€ 3.00
13
0155006163
ref: 13
BOLT
0155006163
€ 2.50
14
0916906038
ref: 14
WASHER
0916906038
€ 2.50
15
0158008163
ref: 15
BOLT
0158008163
€ 3.00
16
0916014032
ref: 16
WASHER(14.2X26X1.2)
€ 1.50
17
0158006163
ref: 17
BOLT
0158006163
€ 2.50
18
0932106013
ref: 18
CUSHION
0932106013
€ 2.50
19
6319214D00
ref: 19
CUSHION,REAR FENDER
6319214D00
€ 4.00
20
9570003810
ref: 20
LOCK SET,HELMET
9570003810
€ 59.50
21
0211205123
ref: 21
SCREW
0211205123
€ 1.50
22
0980021034
ref: 22
TOOL ASSY
€ 55.00
23-1
6333103D00
ref: 23-1
E18,E39
MUDGUARD,RR FENDER RR
6333103D00
€ 15.50
23-2
6333103D30
ref: 23-2
E22
MUDGUARD,RR FENDER RR
€ 27.50
24
0214205163
ref: 24
E18,E22,E39
SCREW
0214205163
€ 2.50
25
0914805023
ref: 25
E18,E22,E39
NUT
0914805023
€ 1.50
26
0916005016
ref: 26
E18,E22,E39
WASHER
0916005016
€ 1.50
27
0832101053
ref: 27
E18,E22,E39
LOCK,WASHER
€ 3.00
28
0914005006
ref: 28
E18,E22,E39
NUT
0914005006
€ 2.00
29-1
6831915D00
ref: 29-1
LABEL
€ 8.00
29-2
6831915D20
ref: 29-2
E18,E22,E39
LABEL, WARNING
€ 8.00
29-3
6831915D30
ref: 29-3
E4,E21
LABEL, WARNING
€ 8.50
29-4
6831915D40
ref: 29-4
E34
LABEL, WARNING
€ 8.00
29-5
6831915D51
ref: 29-5
E94
LABEL, WARNING SAFETY (SPANISH)
€ 8.00
30-1
6862301B00
ref: 30-1
E24
LABEL,UNLEADED FUEL
6862301B00
€ 3.50
30-2
6862317D00
ref: 30-2
E2
LABEL,CAUTION
6862317D00
€ 4.00
31-1
6833214D00
ref: 31-1
DRAWING NOT SHOWN
LABEL (TIRE AIR PRESSURE)
€ 0.00
31-2
6833214D10
ref: 31-2
E22,DRAWING NOT SHOW
LABEL, TIRE AIR PRESSURE
€ 0.00
31-3
6833214D20
ref: 31-3
E94,DRAWING NOT SHOW
LABEL, TIRE AIR PRESSURE
€ 0.00
32-1
9901114D7001U
ref: 32-1
DR350L
MANUAL,OWNER'S
€ 20.00
32-2
9901114D70009
ref: 32-2
DR350L E15,E17,E34
MANUEL,OWNER'S
€ 0.00
32-3
9901114D7101U
ref: 32-3
DR350M
O.M. DR350S M
9901114D7101U
€ 21.00
32-4
9901114D71009
ref: 32-4
DR350M E15,E16,E17,E
MANUAL,OWNER'S
€ 0.00
32-5
9901114D7201U
ref: 32-5
DR350N
O.M. DR350S N
€ 21.00
32-6
9901114D72009
ref: 32-6
DR350N E15,E16,E17,E
MANUAL,OWNER'S
€ 0.00
32-7
9901114D7201S
ref: 32-7
DR350N E94
MANUAL,OWNER'S
€ 0.00
32-8
9901114D7301U
ref: 32-8
DR350P
MANUAL,OWNER'S
9901114D7301U
€ 21.00
32-9
9901114D73009
ref: 32-9
DR350P E17,E34
MANUAL,OWNER'S
€ 0.00
32-10
9901114D7301S
ref: 32-10
DR350P E94
MANUAL,OWNER'S
€ 0.00
32-11
9901114D7401U
ref: 32-11
DR350R
MANUAL,OWNER'S
€ 29.50
32-12
9901114D74009
ref: 32-12
DR350R E34
MANUAL,OWNER'S
€ 0.00
32-13
9901114D7401S
ref: 32-13
DR350R E94
MANUALS, OWNERS
9901114D7401S
€ 16.00
32-14
9901114D8201U
ref: 32-14
DR350SHN
MANUAL,OWNER'S
€ 0.00
32-15
9901114D8301U
ref: 32-15
DR350SHP
MANUAL,OWNER'S
€ 23.50
32-16
9901114D8401U
ref: 32-16
DR350SHR DRAWING NOT
MANUAL,OWNER'S
€ 0.00
