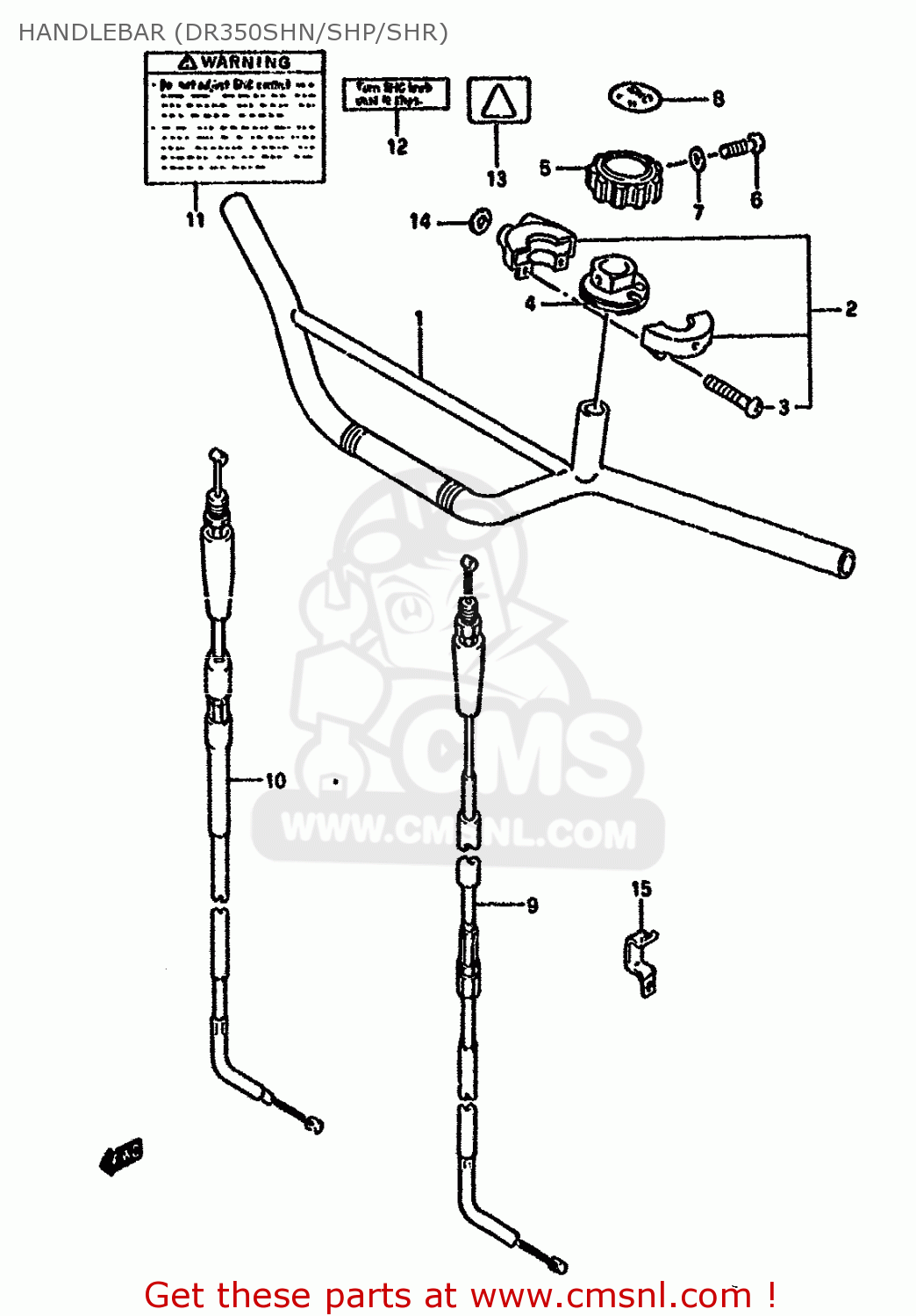

HANDLEBAR (DR350SHN/SHP/SHR)

ref

part #

description

quantity

1

5611014D41291
ref: 1
-56110-15D10-291-561

HANDLEBAR

€ 97.00

2

5710015D00
ref: 2

CASE ASSY,HIGH CONTROL

€ 50.00

3

0211205205
ref: 3

SCREW 5X20

€ 2.50

4

5784115D00
ref: 4

ROTOR,HIGH CONTROL

€ 15.50

5

5785115D00
ref: 5

KNOB,HIGH CONTROL

€ 33.00

6-1

0211205105
ref: 6-1
DR350SHN/SHP

SCREW

€ 2.00

6-2

0211205103
ref: 6-2
DR350SHR

SCREW

€ 2.00

7-1

0832121055
ref: 7-1
DR350SHN/SHP

WASHER,LOCK

€ 3.00

7-2

0832101053
ref: 7-2
DR350SHR

LOCK,WASHER

€ 3.00

8

6886115D00
ref: 8

EMBLEM,HIGH CONTROL

€ 0.00

9

5896015D00
ref: 9

CABLE ASSY,HEI

€ 44.50

10

5897015D00
ref: 10

CABLE ASSY,HEI

€ 66.50

11-1

6839415D41
ref: 11-1
DR350SHN E18

LABEL,WARNING HIGH CONTROL

€ 0.00

11-2

6839415D31
ref: 11-2
E4,E21

LABEL,WARNING HIGH CONTROL

€ 0.00

11-3

6839415D21
ref: 11-3
E22 DR350SHP E18

LABEL,WARNING HIGH CONTROL

€ 0.00

12-1

6839515D10
ref: 12-1
DR350SHN E18

LABEL,WARNING,KNOB SHC

€ 0.00

12-2

6839515D30
ref: 12-2
E4,E21

LABEL,WARNING,KNOB SHC

€ 0.00

12-3

6839515D20
ref: 12-3
E22 DR350SHP E18

LABEL,WARNING,KNOB SHC

€ 0.00

13

6886215D00
ref: 13

LABEL,HIGH CONTROL

€ 0.00

14

0916010082
ref: 14

WASHER(10.5X19X2)

€ 2.00

15

0940310307
ref: 15

CLAMP

€ 3.00

all assemblies
