SECOND AIR (DR350SR E18,DR350SN/SP/SUP/SR E39)

DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)

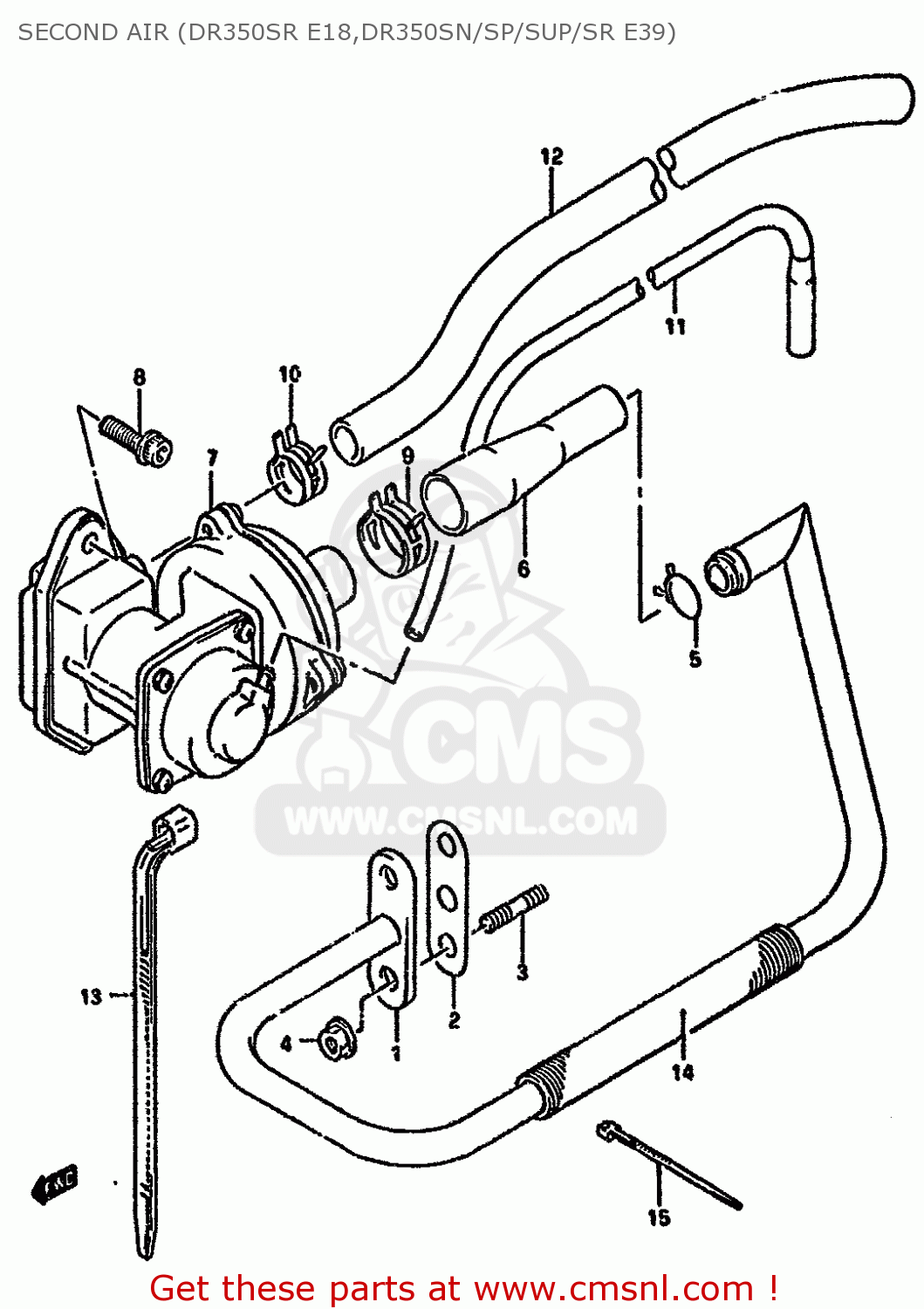

Second air (dr350sr e18,dr350sn/sp/sup/sr e39) diagram DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1842014D21
ref: 1

PIPE,2ND AIR

€ 44.50

1844112D10
ref: 2

GASKET,2ND AIR (NAS)

€ 6.00

0142106165
ref: 3

STUD 6X16

€ 2.00

4-1

0831616064
ref: 4-1
MODEL N/P

NUT 6MM

€ 2.50

4-2

0831610063
ref: 4-2
MODEL R

NUT

€ 2.50

0940115301
ref: 5

CLIP

€ 2.50

1844614D00
ref: 6

HOSE, 2ND AIR

€ 22.00

1845014D00
ref: 7

VALVE ASSY,2ND AIR REED

€ 377.50

8-1

0712006205
ref: 8-1
MODEL N/P

PLUG ,6X20

€ 3.50

8-2

0712006203
ref: 8-2
MODEL R

BOLT

€ 3.50

0940123403
ref: 9

CLIP

€ 4.50

0940115404
ref: 10

CLIP

€ 2.50

0935940701600
ref: 11
L:600-400

HOSE(4X7X600)

€ 9.00

0935212163600
ref: 12
L:600-350

HOSE(12X16X600)

€ 24.50

0940718402
ref: 13

CLAMP(L:165)

€ 2.50

1842114D20
ref: 14

PROTECTOR, 2WD AIR PIPE

€ 10.50

0940710404
ref: 15

CLAMP(L:100)

€ 4.00

0935212163600
ref: 18
L:600-500

HOSE(12X16X600)

€ 24.50

0940718402
ref: 19

CLAMP(L:165)

€ 2.50

1842114D10
ref: 20

PROTECTOR,2ND AIR PIPE

€ 0.00

0940406405
ref: 21

CLAMP

€ 3.00

0940714403
ref: 22

CLAMP(L:125)

€ 2.50

16-2

0940111407
ref: 16-2
MODEL R

CLIP

€ 2.50

0940406607
ref: 17

CLAMP(L:55)

€ 3.00

0924710008
ref: 18

PLUG(10X12)

€ 3.00

0916810002
ref: 19

GASKET(10X14X3.6) (NAS)

€ 2.00
