CYLINDER

DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)

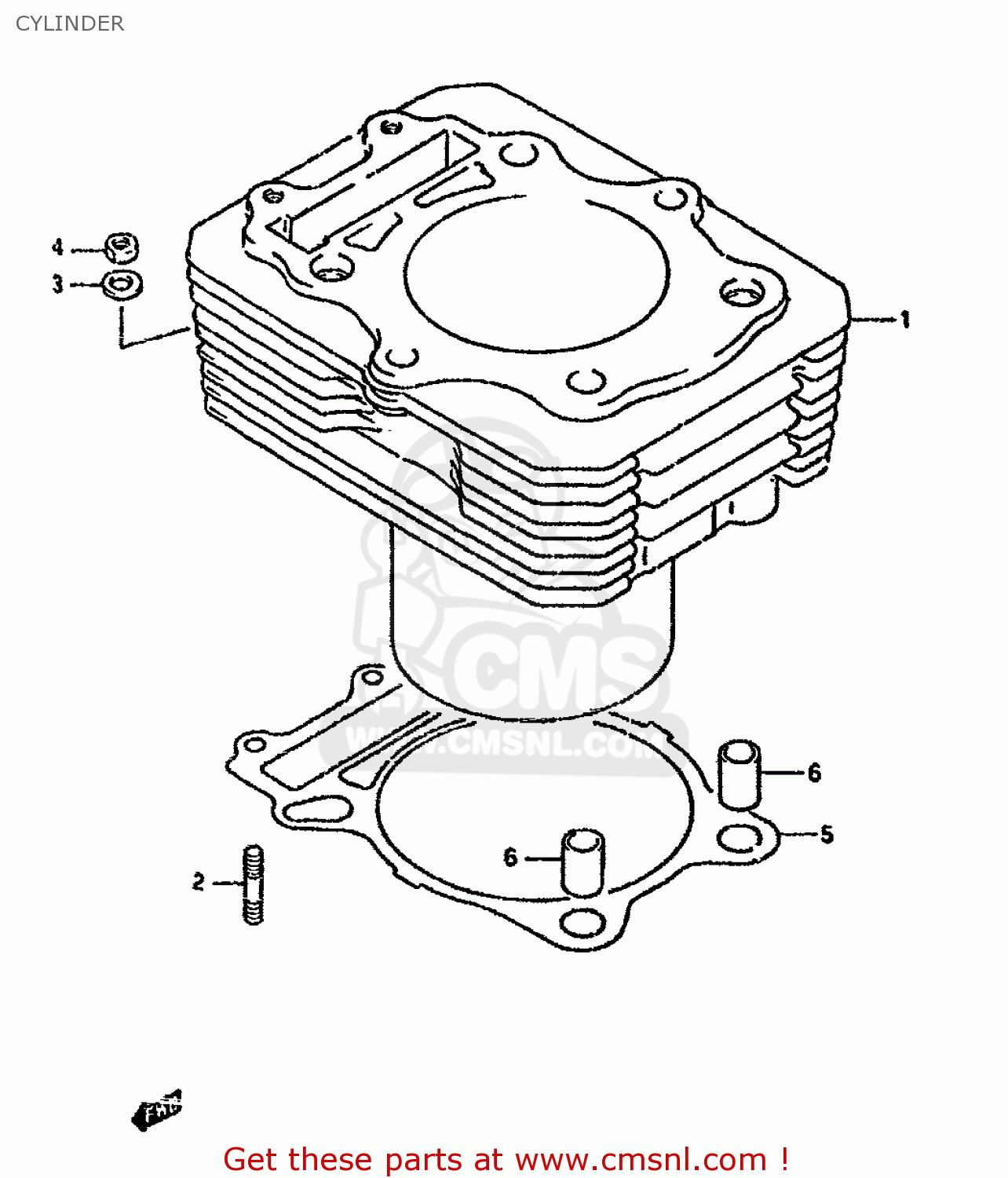

Cylinder diagram DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)

CYLINDER DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)

CYLINDER DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

1121014D010F0
ref: 1-1
MODEL L-11210-14D00-

CYLINDER

€ 554.50

1-2

1121014D110F0
ref: 1-2
MODEL M/N/P

CYLINDER

€ 554.50

1-3

1121047D000F0
ref: 1-3
MODEL R

CYLINDER

€ 554.50

2

0142106208
ref: 2

STUD 6X20

€ 2.50

3-1

0832211068
ref: 3-1
MODEL L/M/N/P

WASHER 6MM

€ 2.00

3-2

0832201063
ref: 3-2
MODEL R

WASHER

€ 2.00

4-1

0914006022
ref: 4-1
MODEL L/M/N/P

NUT

€ 3.00

4-2

0914006502
ref: 4-2
MODEL R

NUT

€ 3.00

5

1124114D01
ref: 5

GASKET,CYLINDER (NAS)

€ 12.00

6

0920613001
ref: 6

PIN

€ 2.50
