REAR SWINGING ARM (MODEL R)

DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)

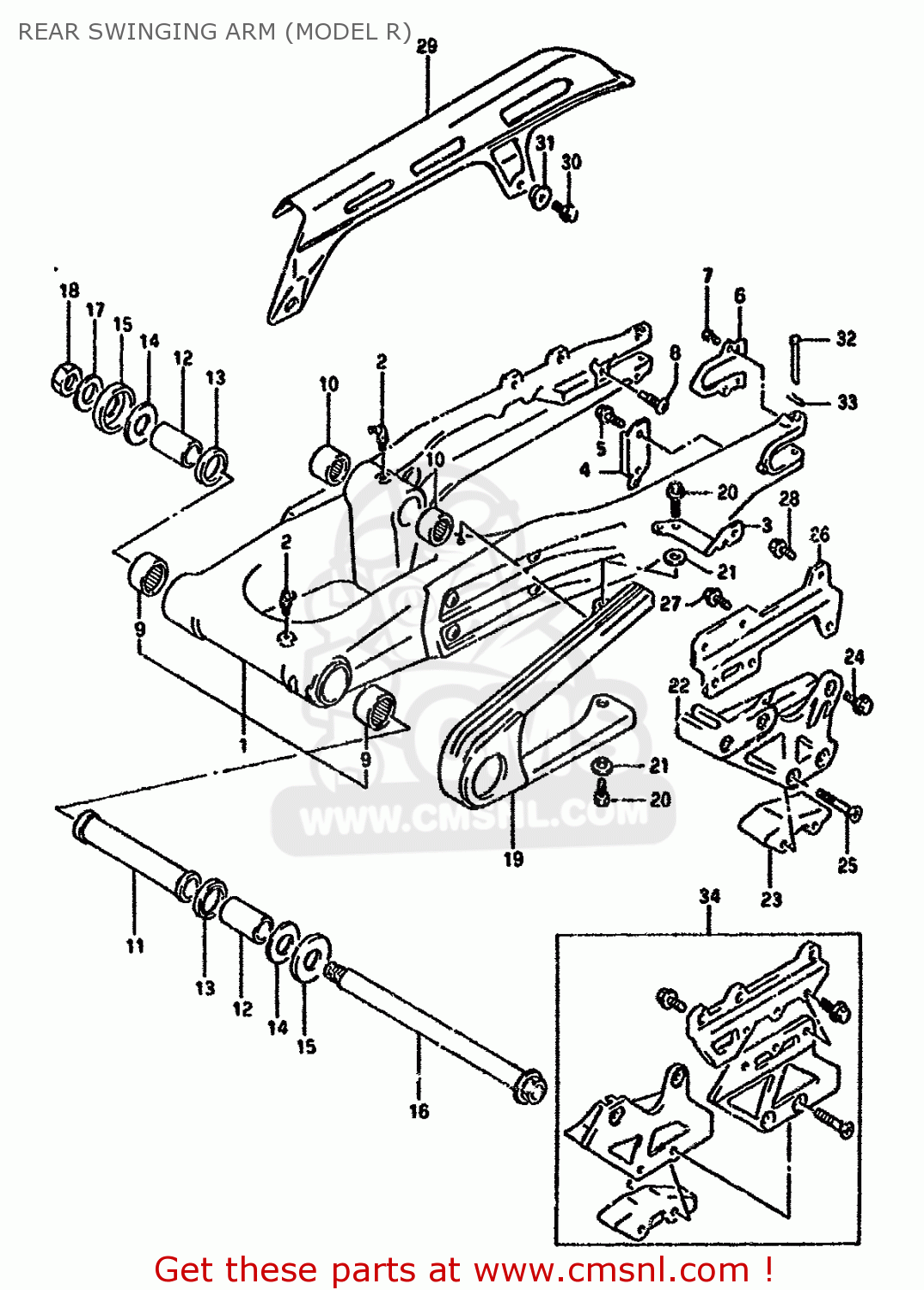

Rear swinging arm (model r) diagram DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)

REAR SWINGING ARM (MODEL R) DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)
REAR SWINGING ARM (MODEL R) DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)
REAR SWINGING ARM (MODEL R) DR350S 1991 (M) (E02 E04 E15 E17 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
6100015D50
ref: 1
SWING ARM ASSEMBLY,REAR
€ 892.50
2
0835131008
ref: 2
NIPPLE,GREASE
0835131008
€ 10.50
3
6114015D10
ref: 3
PLATE,CHAIN CASE FTG FR
6114015D10
€ 10.00
4
6114415D10
ref: 4
PLATE,CHAIN CASE FTG RR
6114415D10
€ 17.50
5
0910305013
ref: 5
BOLT
€ 1.50
6
6112814D00
ref: 6
PLATE,SWING ARM RR
6112814D00
€ 8.00
7
0912505072
ref: 7
SCREW (5X8)
0912505072
€ 2.50
8
0913910001
ref: 8
SCREW (M10X21)
0913910001
€ 6.50
9
0926322017
ref: 9
BEARING(22X29X30)
0926322017
€ 18.50
10
0926320071
ref: 10
BEARING(20X27X23.5)
0926320071
€ 21.50
11
0918017097
ref: 11
SPACER,SWING ARM PIVOT,CENTER
0918017097
€ 12.50
12
6125114D00
ref: 12
SPACER,SWGARM PIVOT BRG
6125114D00
€ 11.00
13
0928522001
ref: 13
SEAL,OIL(22X29X4)
0928522001
€ 5.00
14
0821117341
ref: 14
WASHER
0821117341
€ 2.00
15
6126228C10
ref: 15
COVER,SWINGINGARM PIVOT
6126228C10
€ 4.50
16
6121114D00
ref: 16
SHAFT,SWINGING ARM PIVOT
6121114D00
€ 49.50
17
0832201163
ref: 17
WASHER, FIXED DRIVE FACE
0832201163
€ 2.00
18
0915916007
ref: 18
NUT
0915916007
€ 10.50
19
6127314D00
ref: 19
BUFFER,CHAIN TOUCH DEFENSE
6127314D00
€ 34.00
20
0150006163
ref: 20
BOLT
0150006163
€ 2.00
21
0916906057
ref: 21
WASHER
0916906057
€ 4.00
22
6134015E00
ref: 22
GUIDE,CHAIN
6134015E00
€ 39.50
23
6134815E00
ref: 23
DEFENSE,CHAIN GUIDE
6134815E00
€ 14.50
24
0155006163
ref: 24
BOLT
0155006163
€ 2.50
25
0212206503
ref: 25
SCREW
0212206503
€ 3.00
26
6115414D00
ref: 26
BRACKET,CHAIN GUIDE
6115414D00
€ 39.00
27
0155006163
ref: 27
BOLT
0155006163
€ 2.50
28
0155006123
ref: 28
BOLT
0155006123
€ 2.50
29
6131014A00
ref: 29
CASE,CHAIN
6131014A00
€ 49.00
30
0155006103
ref: 30
BOLT
0155006103
€ 2.50
31
0916906026
ref: 31
WASHER
0916906026
€ 2.00
32
0920006065
ref: 32
PIN
0920006065
€ 4.00
33
0938506012
ref: 33
CLIP
0938506012
€ 2.00
34
6130014810
ref: 34
OPT,OFF ROAD USE ONL
GUIDE SET,CHAIN
€ 123.50
29-2
0151706167
ref: 29-2
MODEL P
BOLT 6X16
0151706167
€ 1.50
30-1
0913906062
ref: 30-1
MODEL L/M/N
SCREW(6X12)
0913906062
€ 3.00
30-2
0151706128
ref: 30-2
MODEL P
BOLT
€ 2.50
31
6131014A00
ref: 31
CASE,CHAIN
6131014A00
€ 49.00
32
0151706105
ref: 32
BOLT
€ 2.50
33
0916906026
ref: 33
WASHER
0916906026
€ 2.00
34
0920006065
ref: 34
PIN
0920006065
€ 4.00
35
0938506012
ref: 35
CLIP
0938506012
€ 2.00
36
6130014D00
ref: 36
OPT,OFF ROAD USE ONL
PLATE SET,CHAIN GUIDE
6130014D00
€ 18.50
